Other Stainless Steel Chain

Raydafon Group's Other Stainless Steel Chain is a durable, corrosion-resistant solution for industrial, marine, and decorative uses, offering superior strength and elegance. Ideal for professionals and DIY enthusiasts, it ensures reliability and enhances projects with a premium feel, setting it apart with unmatched quality and performance.

Send Inquiry

Product Description

The structure and size of stainless steel roller chain meet ISO 606 and other standards, mainly including stainless steel short pitch roller chain, stainless steel short pitch straight edge chain plate roller chain, stainless steel double pitch roller chain,stainless steel extended pin chain, etc, and various corresponding accessories.

Using high-quality austenitic and martensitic stainless steel materials, advanced processing technology and efficient process equipment, the products have the characteristics of corrosion resistance, high and low temperature resistance, cleanness.etc. There are two kinds of products with tensile strength indexes for users to choose from.

Products are widely used in food processing, dairy products processing, health care.

chemical industry and other industries.

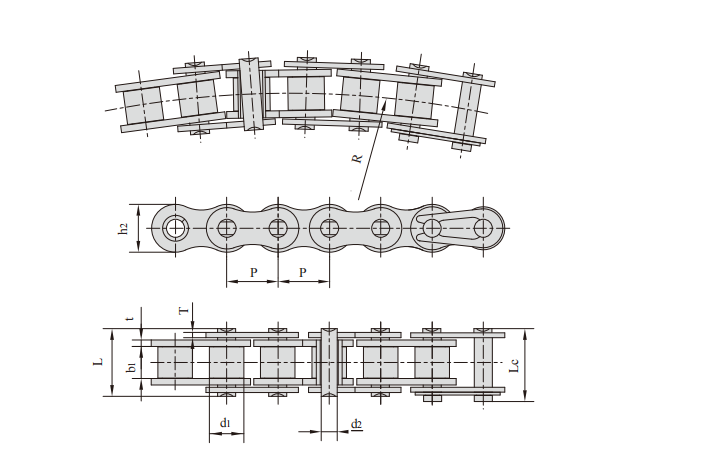

Other Stainless Steel Chain

Chain No.	Pitch	Roller diameter	Width between inner plates	Pin diameter	Pin length		Inner plate depth	Plate thickness	Side bow radius	Tensile strength	Weight per meter
	P	d1 max	b1 min	d2 max	L max	Lc max	h2 max	t/T max	R	Q min	q
	mm	mm	mm	mm	mm	mm	mm	mm	mm	kN/lbf	kg/m
40SBSS	12.700	7.95	7.85	3.96	16.9	18.1	11.7	1.50	350	7.0/1574	0.63
43SBSS	12.700	7.95	7.85	3.45	18.5	-	11.7	1.50	305	7.0/1574	0.65
50SSSB	15.875	10.16	9.40	4.37	20.7	22.7	15.1	2.03	400	12.4/2788	1.10
16BSBSS	25.400	15.88	17.22	7.90	36.5	39.7	21.0	3.70/3.00	500	12.5/2810	2.53

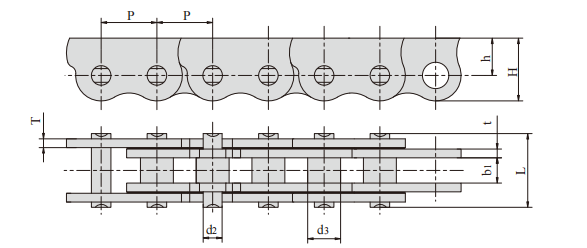

Other Stainless Steel Chain

Chain No.	Pitch	Width between inner plates	Pin diameter		Pin length	Plate dimension			Tensile strength
	P	b1 min	d2 max	d4 max	L max	H max	h	t/T max	Q min
	mm	mm	mm	mm	mm	mm	mm	mm	kN
06CF31SS	9.525	4.50	3.58	5.08	11.50	12.40	7.90	1.30	5.2/1169
P12.7F3SS	12.700	5.50	4.45	7.50	15.60	14.30	8.90	2.03	12.0/2698

Other Stainless Steel Chain

Chain No.	Pitch	Width between inner plates	Pin diameter		Pin length	Plate dimension			Tensile strength
	P	b1 min	d2 max	d4 max	L max	H max	h	t/T max	Q min
	mm	mm	mm	mm	mm	mm	mm	mm	kN
06CF31SS	9.525	4.50	3.58	5.08	11.50	12.40	7.90	1.30	5.2/1169
P12.7F3SS	12.700	5.50	4.45	7.50	15.60	14.30	8.90	2.03	12.0/2698

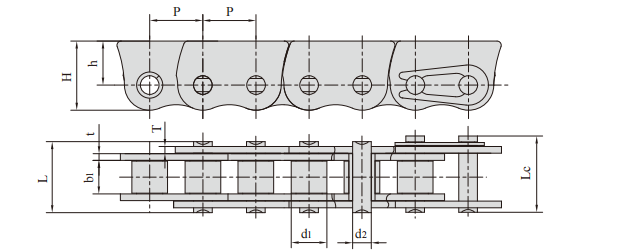

Other Stainless Steel Chain

Chain No.	Pitch	Bush diameter	Width between inner plates	Pin diameter	Pin length	Plate dimension			Tensile strength
	P	d1 max	b1 min	d2 max	L max	H max	h	t/T max	Q min
	mm	mm	mm	mm	mm	mm	mm	mm	kN
06CF51SS	9.525	5.08	4.77	3.58	12.80	13.20	8.80	1.00/2.03	7.0/1574

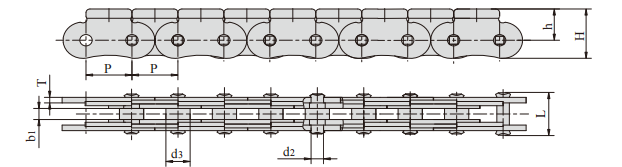

Other Stainless Steel Chain

Chain No.	Pitch	Width between inner plates	Pin diameter		Pin length	Plate dimension			Tensile strength
	P	b1 min	d2 max	d3 max	L max	H max	h	T max	Q min
	mm	mm	mm	mm	mm	mm	mm	mm	kN
P11.5SS	11.500	3.00	3.00	6.00	108.0	13.50	8.50	1.50	5.5/1236

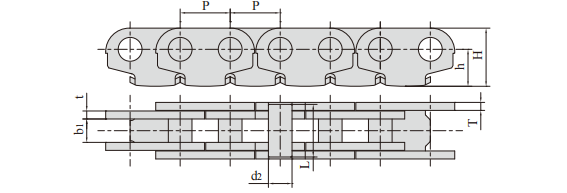

Other Stainless Steel Chain

Chain No.	Pitch	Width between inner plates	Pin diameter	Pin length	Plate dimension			Tensile strength	Weight per metnr
	P	b1 min	d2 max	L max	H max	h	t/T	Q min	q
	mm	mm	mm	mm	mm	mm	mm	kN	kN/m
P12.7F14SBSS	12.70	5.94	6.00	13.40	14.76	9.38	2.03	10.0/2248	0.89
