HTKL Type Coupling

Raydafon Group's HTKL Type Coupling is a high-performance mechanical connector designed for precision applications. Its durable materials and advanced engineering ensure seamless operation, ideal for engineers and technicians in industrial settings. Experience enhanced reliability and efficiency with its unique design, solving common coupling failures. Discover unmatched quality and innovation.

Send Inquiry

Product Description

The HTKL Type Couplings are an efficient and reliable mechanical connection solution for a wide range of industrial applications.

Scope of application: This product is suitable for liquid, gas, and other fluid transfer systems that require quick connection and disconnection.

Design Standards: DIN compliant to ensure reliability and consistency in industrial applications.

Size range: From HTKL58 to HTKL280, a variety of options are available to meet the needs of different application scenarios.

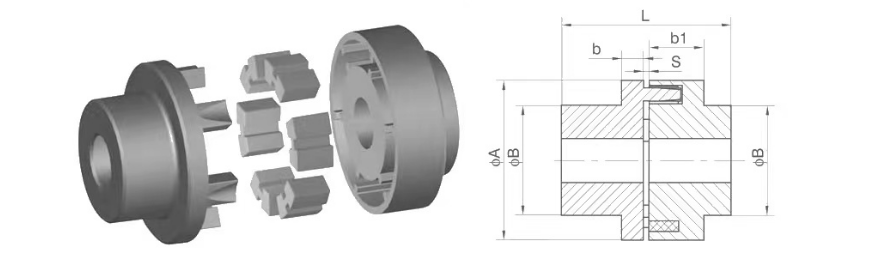

Catalog	A	B	L	b	b1	s	Bore		Max Torque (Nm)	Max Revolution (rpm)	Moment of inertia (kg.cm)	G (kg)
							Pilot	Max
HTKL-58 HTKL-70 HTKL-82 HTKL-95 HTKL-110	58 70 82 95 110	40 48 60 70 80	56 62 78 78 86	8 8 10 12 14	20 20 21 24 27	2 2 2 2 2	6 8 10 12 14	14 20 28 38 42	18 31.5 63 100 160	5000 5000 5000 5000 5000	3 6 17 41 80	1.00 1.65 3.22 5.15 7.39




HTKL 125 HTKL-140 HTKL-160 HTKL-180 HTKL-200	125 140 160 180 200	92 100 110 125 140	99 113 133 154 174	17 20 20 20 22	31 34 39 42 47	3 3 3 4 4	15 20 22 30 35	48 55 65 75 85	250 355 560 900 1400	4500 4000 3500 3100 2800	140 200 330 610 1300	10.85 12.97 20.15 26.12 38.90




HTKL-225 HTKL-250 HTKL-280	225 250 280	150 165 180	184 205 225	22 22 24	52 60 65	4 5 5	40 50 60	90 100 110	2000 2800 4000	2500 2200 2000	1900 3300 5200	43.13 57.55 80.33
