GSL Type Coupling

Raydafon Group's GSL Type Coupling excels in industrial applications with durable materials and precision engineering, ideal for engineers and technicians seeking reliable connections. It solves alignment issues, ensuring smooth operations, and stands out with superior performance and long-lasting quality.

Send Inquiry

Product Description

SL Type Couplings is a flexible drum gear coupling that is widely used in metallurgy, papermaking, petrochemical, electric power, cement, mining and shipbuilding industries. Key features include:

High transmission efficiency: It can still maintain high transmission efficiency under the condition of large angle offset；Compact structure: The coupling has a compact structural design, which can effectively reduce the space occupation；Lubrication sealing: The keyway needs to be sealed during assembly to prevent lubricant leakage and ensure good lubrication.

In addition, the product range of GSL Type Couplings includes inch sizes for the ANSI market and metric sizes for the DIN market. These products have their applications and needs in different markets.

In summary, GSL Type Couplings are widely used in various industrial fields due to their high efficiency, reliable performance and wide applicability.

ANSI GSL-Couplings

Catalog

Fundamental Dimensions

Bore

Max Torque (In-Lb)

Max revolution (rpm)

Ls Min

wt L bs

Min

Max

GSL-100

49/16

21/4

31/8

111/16

7/32

1/16

9/16

11/2

7523

6000

215/16

27.8

GSL-150

31/8

315/16

115/16

9/32

1/16

3/4

21/8

15045

5500

35/16

47.4

GSL-200

37/8

415/16

27/16

5/8

1/16

23/4

28763

5000

33/4

53.6

GSL-250

8 3/8

45/8

57/8

31/32

9/16

3/32

13/8

33/8

53100

4400

113

GSL -300

97/16

51/2

67/8

319/32

21/32

3/32

13/4

88500

4000

45/16

167

GSL-350

61/2

729/32

41/8

25/32

1/8

21/8

45/8

141600

3500

415/16

241

GSL-400

121/2

73/8

91/4

43/4

13/16

1/8

29/16

51/2

208860

3000

415/16

332

GSL -450

135/8

83/8

103/8

55/16

5/32

31/8

61/4

287625

2700

415/16

400

GSL -500

155/16

95/16

119/16

529/32

11/8

5/32

31/2

420375

2500

511/16

555

GSL -550

163/4

103/8

1213/16

629/32

13/8

5/32

77/8

592950

2200

511/16

738

GSL-600

181/8

117/16

131/11

715/32

121/32

5/32

43/4

85/8

796500

2100

511/16

858

GSL-700

207/8

131/8

153/4

811/16

11/2

3/16

57/8

93/4

1106250

2000

511/16

1171

GSL Type Coupling

DIN GSL-Couplings

GSL Type Coupling

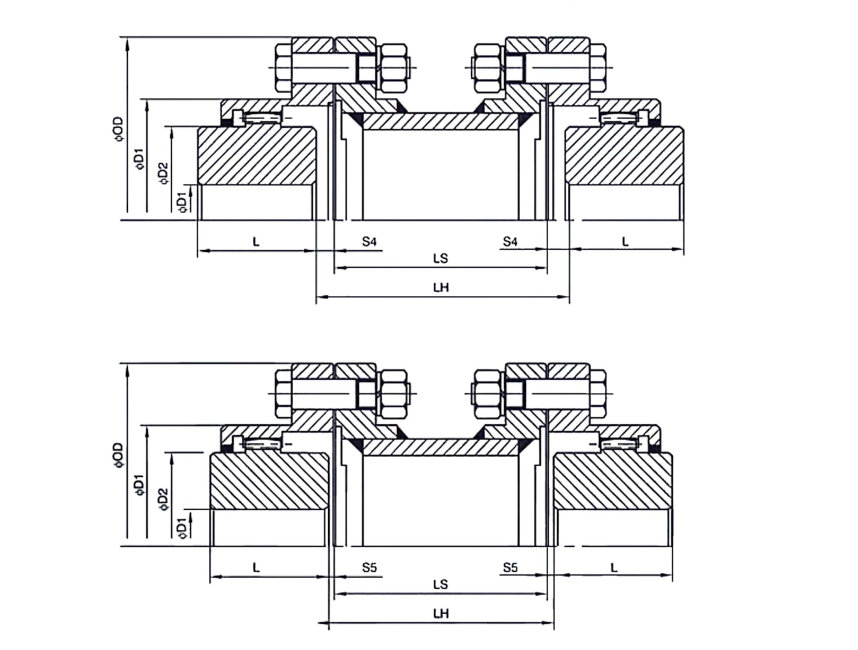

Catalog	Fundamental dimensions						Bore		Ls (min)	parall offset capacit	end float capacity	max torque (Nm)	max Revolution (rpm)	moment of inertia (kg.cm2)	G (kg)
Catalog	OD	D1	D2	L	S4	S5	min	max	Ls (min)	parall offset capacit	end float capacity	max torque (Nm)	max Revolution (rpm)	moment of inertia (kg.cm2)	G (kg)
GSL-78	117	78	58	43	5.5	1.5	14	40	75	3.3	2	850	6000	93	6.7
GSL-100	152	100	80	50	7.5	1.5	19	55	85	3.8	2	1700	5500	348	14.5
GSL-125	178	125	98	62	15.5	1.5	25	70	95	4.6	3	3250	5000	682	22.0
GSL-150	213	150	118	76	14.5	2.5	35	85	100	5.1	4	6000	4400	1657	36.8
GSL-175	240	175	140	90	16.5	2.5	45	100	110	5.7	4	10000	4000	2876	52.3
GSL-200	280	200	165	105	20	3	55	120	125	6.6	5	16000	3500	6767	88.2
GSL-235	318	235	188	120	21	3	65	140	125	7	6	23600	3000	11164	116.4
GSL-265	347	265	212	135	25	4	80	160	125	7.6	6	33500	2700	17106	152.9
GSL-295	390	295	236	150	28	4	90	180	1 45	8.5	7	47500	2500	32719	220.2
GSL-325	425	325	264	175	35	4	100	200	1 45	9.4	8	67000	2200	49059	288.4
GSL-355	460	355	290	190	42	4	120	220	1 45	10	9	90000	2100	73628	367.0
GSL-400	530	400	333	220	38	5	150	250	145	10.7	10	125000	2000	138408	518.0
