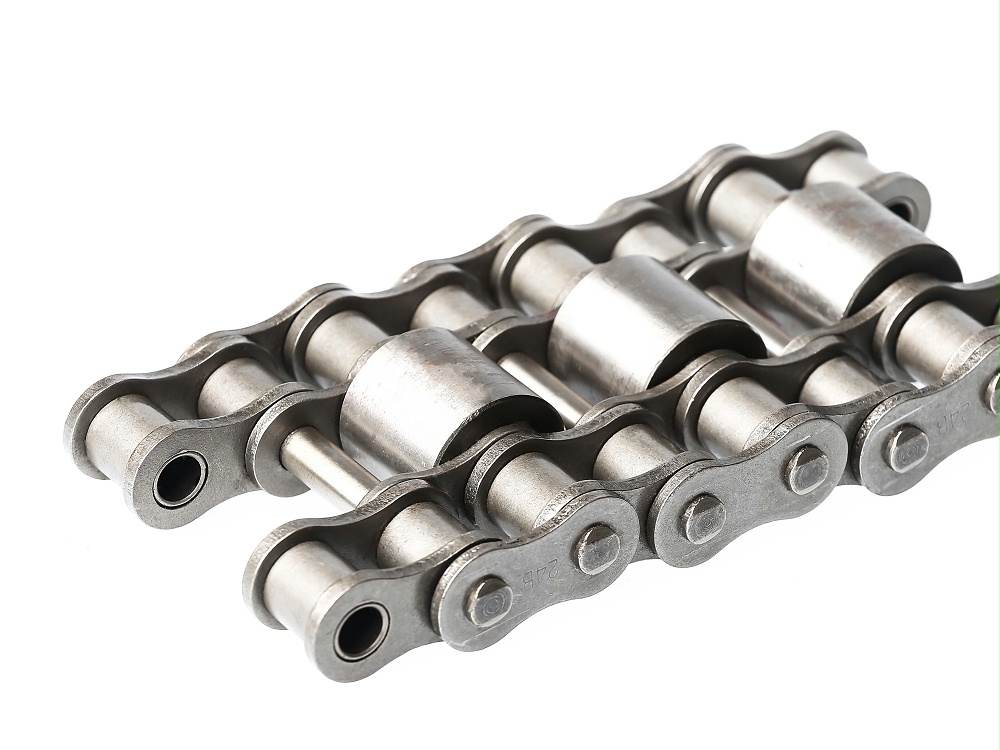

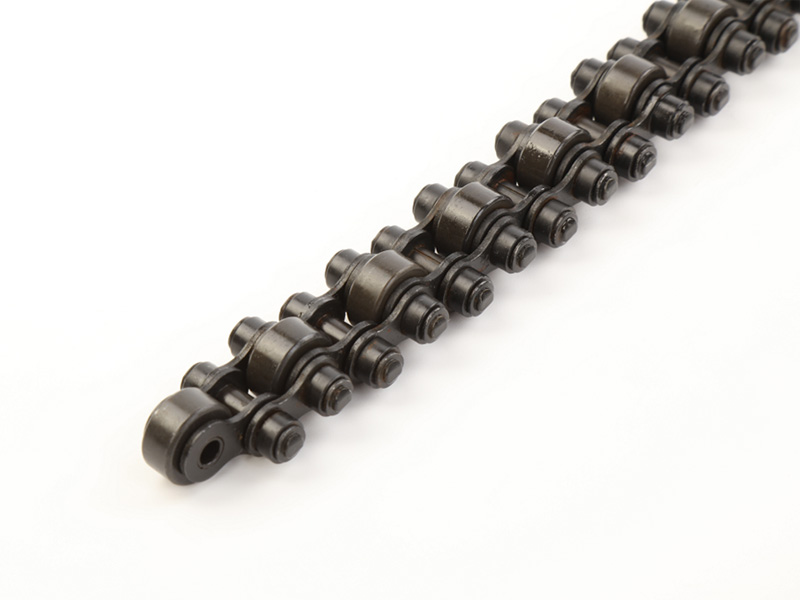

Free Flow Double Plus Chains

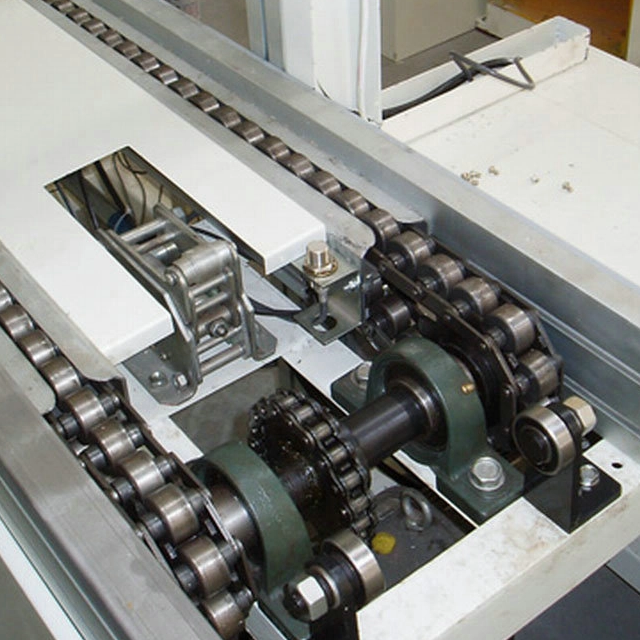

Free-flowing chain refers to a chain whose moving tempo can be controlled according to the requirements of users under the condition that the moving speed of the chain is constant during operation. Under the condition that the running speed of the chain is constant. the speed of conveying articles c......

Free-flowing chain refers to a chain whose moving tempo can be controlled according to the requirements of users under the condition that the moving speed of the chain is constant during operation. Under the condition that the running speed of the chain is constant. the speed of conveying articles can be adjusted according to the specific use requirements.It mainly includes: double speed chain, conveyor chain with big roller.conveyor chain with side roller, conveyor chain with special roller, conveyor chain with top roller with short pitch, conveyor chain with top roller with double pitch. etc.

Using high-quality materials and advanced processing technology, the product has the characteristics of anti-static, low noise, stable and reliable transportation, etc.

Schematic diagram of double speed calculation model of typical double speed chain Since the roller diameter D can be multiplied by the roller diameter D, the speed-increasing effect of the double-speed chain can be multiplied. The specific calculation formula is as follows.


  Free Flow Double Plus Chains

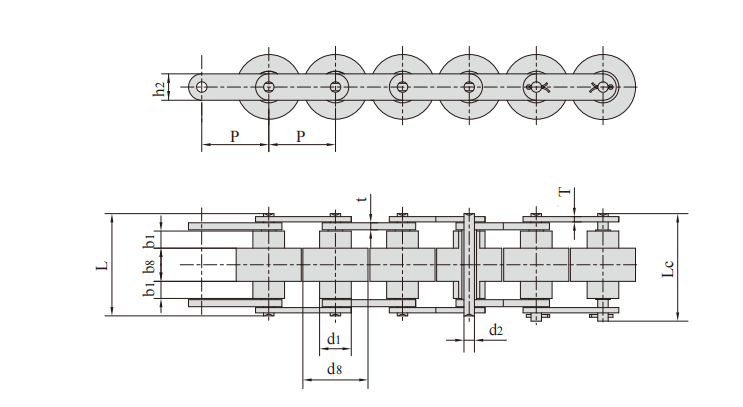

JB
Chain No
Chain No. Pitch Roller
dimension
Pin
diameter
Pin
length
Plate
dimension
Weight
per meter
P d1
max
d8
max
b1
min
b8
max
d2
max
L
max
Lc
max
h2
max
T
max
t
max
q
mm mm mm mm mm mm mm mm mm mm mm kg/m
BS25-C206B C2030W 19.05 11.91 18.3 4.00 8.0 3.28 24.0 25.6 8.20 1.30 1.50 0.52
BS25-C208A C2040W 25.40 15.88 24.6 5.70 10.3 3.96 31.0 32.8 11.70 1.50 1.50 0.79
BS25-C210A C2050W 31.75 19.05 30.6 7.10 13.0 5.08 39.5 41.2 15.00 2.00 2.03 1.36
BS25-C212A C2060HW 38.10 22.23 36.6 8.50 15.5 5.94 50.3 52.8 18.00 3.00 4.00 2.24
BS25-C216A C2080W 50.80 28.58 49.0 11.00 21.5 7.92 66.2 70.0 24.00 4.00 4.80 4.06
BS30-C206B
19.05 9.00 18.3 4.50 9.1 3.28 26.3 29.6 7.28 1.30 1.50 0.50
BS30-C208A
25.40 11.91 24.6 6.10 12.5 3.96 35.6 39.5 9.60 1.50 2.00 0.83
BS30-C210A
31.75 14.80 30.6 7.50 15.0 5.08 43.0 47.1 12.20 2.00 2.40 1.27
BS30-C212A
38.10 18.00 37.0 9.75 20.0 5.94 58.1 62.7 15.00 3.00 4.00 2.14
BS30-C216A
50.80 22.23 49.0 12.00 25.2 7.92 71.9 77.3 18.60 4.00 5.00 3.55
