Chains for Wood-based Panel Equipment

Raydafon Guoup's Chains for Wood-based Panel Equipment deliver unmatched durability and precision for woodworking professionals, enhancing efficiency and reducing downtime. Crafted from high-quality materials, they ensure smooth operation in demanding environments, solving common wear issues and boosting productivity with reliable performance.

Send Inquiry

Product Description

The chain for wood-based panel equipment is used for processing plywood.particleboard, fiberboard and other wood-based panel production equipment, which meets the requirements of effcient and stable operation of equipment;

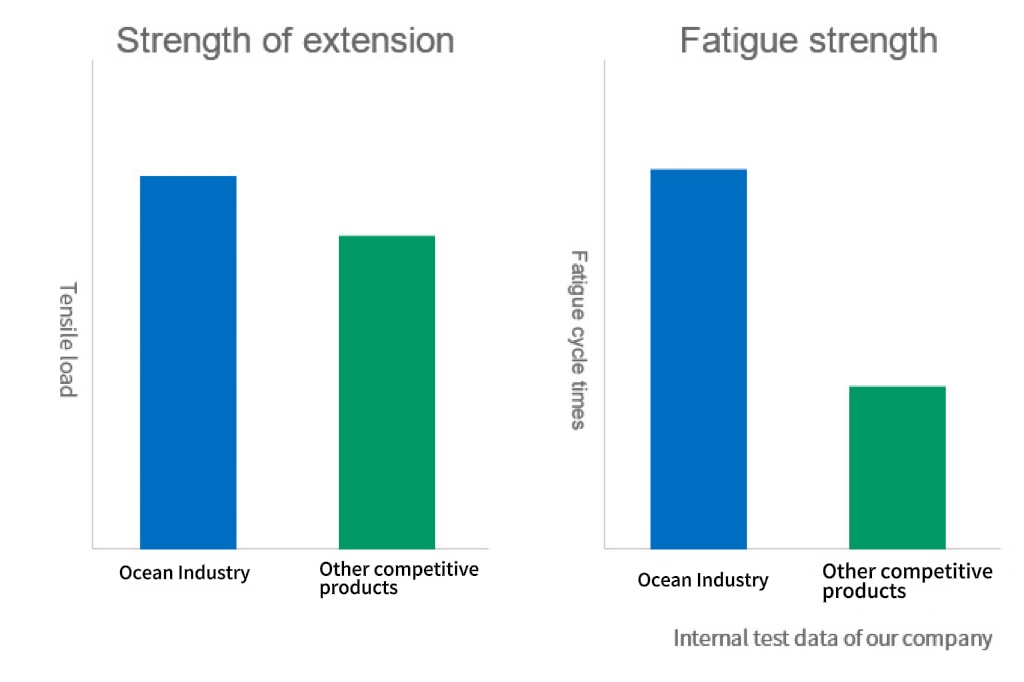

Through structural optimization design, high-quality materials and advanced processing technology, the products have the characteristics of high precision, high tensile strength, high fatigue strength, stable transportation, long service life and high reliability.

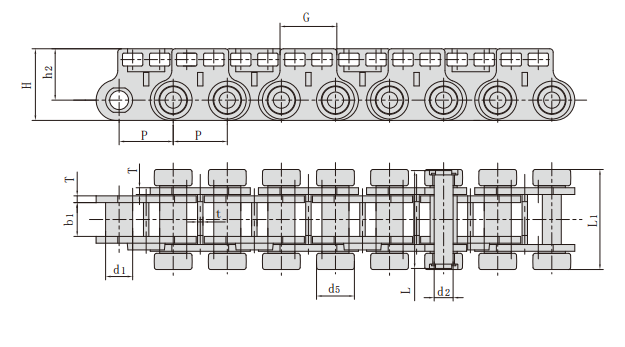

Chains for Wood-based Panel Equipment

Chain No.	Pitch	Bush diameter	Width between inner plates	Pin diameter	Pin length	Plate depth	Plate thickness	Tensile strength	Weight per meter
	P	d1 max	b1 min	d2 max	L max	H max	T max	Q min	q
	mm	mm	mm	mm	mm	mm	mm	kN/lbf	kg/m
P40	40.0	20.0	25.0	14.0	73.0	53.0	5.0	90.0/20250	10.67

Chain No.	P	G	L1	h2	d5	t
Chain No.	mm	mm	mm	mm	mm	mm
P40	40.0	42.0	75.0	38.0	28.0	4.0

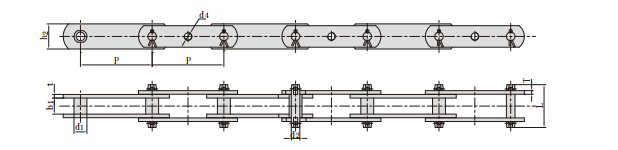

Chains for Wood-based Panel Equipment

Chain No.	Pitch	Bush diameter	Width between inner plates	Pin diameter	Pin length	Plate Size			Tensile strength	Weight per meter
	P	d1 max	b1 min	d2 max	L max	h2 max	d4	t/T	Q min	q
	mm	mm	mm	mm	mm	mm	mm	mm	kN/lbf	kg/m
P100F270GK	100.0	18.0	22.0	12.0	60.0	35.0	M10	5.0	98.0/22030	4.60
P100F178	100.0	18.0	22.0	12.0	54.0	30.0	M10	5.0	98.0/22030	4.00
