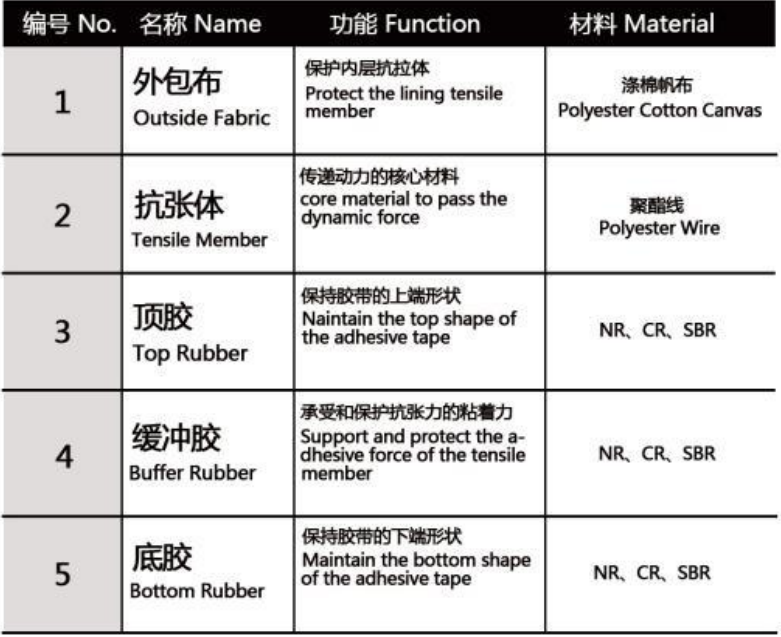

Our company takes the lead in successfully developing new generation enhanced-typeoil proof triangualar belt. Different from the technology of ordinary triangular brlt. it ismanufactured using the technology of raw edge V belt. Its principai part is made of oilproof and best heat resistance compound rubber, and the tramework is made of specialpolyester stiff cord.
| 型号 Type | 上 宽 ( m m ) | 带 高 ( m m ) | 角 度 ( ° ) |
| Top width | Belt thickness | Angle | |
| HM | 10.5 | 8 | 38 |
| AX | 13 | 8 | 38 |
| BX | 17 | 11 | 38 |
| CX | 22 | 14 | 38 |
| DX | 32 | 19 | 38 |
| EX | 38 | 23 | 38 |
| 型号 | 上宽(mm) | 带高(mm) | 角度(°) | 可生产范围(Inch) |
| Type | Top width | Belt Thickness | Angle | production scope |
| SPZ(FM) | 9.7 | 8 | 40 | 500-6850 |
| SPA | 12.7 | 10 | 40 | 500-8000 |
| SPB | 16.3 | 13 | 40 | 600-8000 |
| SPC | 22 | 18 | 40 | 1000-12500 |
| 3V(9N) | 9.5 | 8 | 40 | 20-200 |
| 5V(15N) | 16 | 13.5 | 40 | 50-355 |
| 8V(25N) | 25 | 23 | 40 | 100-500 |
China Belt manufacturer, chinese Belt supplier, produce: v belts, rubber timing belts (synchronous belts), auto timing belts, double-sided tooth synchronous belts,s step less speed change belts, multi-wedge belts, motorcycle V-belts, auto V-belts and various cutting V-belts, flat belts etc rubber drive belts and its auxiliary pulley series products.. We can produce as per customer's drawing or sample. Please feel free to send us your detail enquiries. E-mail: [email protected]
