STL 3V-5V-8V V-pulleys

NSPT 3V-5V-8V series of pulleys with maximum 50" outside diameter and maximum 12 grooves can be respectively suitable for bushes of BTL, QTL and STL series.NSPT is capable of designing and producing non-standard pulleys based on customers' needs. Sheave Diameters Bushing ......
Send Inquiry
Product Description

NSPT 3V-5V-8V series of pulleys with maximum 50" outside diameter and maximum 12 grooves can be respectively suitable for bushes of BTL, QTL and STL series.

NSPT is capable of designing and producing non-standard pulleys based on customers' needs.

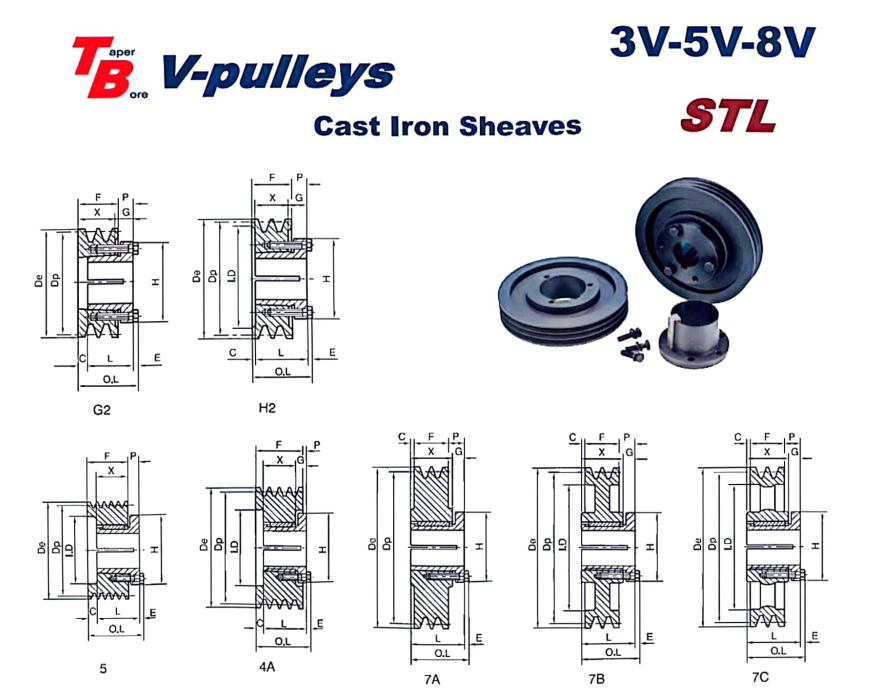

STL 3V-5V-8V V-pulleys

Sheave Diameters Bushing Type Dimensions wt lncl Bush
Dp  De l.D OL L P C H G X E
2-G3V26
2-G3V28
2-G3V30
2-H3V31
2-H3V33		 2.60
2.75
2.95
3.10
3.30		 2.65
2.80
3.00
3.15
3.35		 G
G
G
H
H		 G2
G2
G2
H2
H2		 -
-
-
2
2		 119/32
119/32
119/32
119/32
119/32		 1
1
1
11/4
11/4		 5/16
5/16
5/16
3/8
3/8		 13/32
13/32
13/32
7/32
7/32		 2
2
2
21/2
21/2		 7/16
7/16
7/16
7/16
7/16		 31/32
31/32
31/32
13/16
13/16		 3/16
3/16
3/16
3/16
3/16		 0.8
0.9
1.3
0.9
1.3
2-H3V36
2-P3V36
2-H3V41
2-P3V41
2-H3V45		 3.60
3.60
4.07
4.07
4.45		 3.65
3.65
4.12
4.12
4.50		 H
P1
H
P1
H		 H4
2
H4
2
H4		 -
-
-
-
-		 11/2
23/16
11/2
23/16
11/2		 11/4
115/16
11/4
115/16
11/4		 7/32
27/32
7/32
27/32
7/32		 -
-
-
-
-		 21/2
3
21/2
3
21/2		 7/16
5/8
7/16
5/8
7/16		 7/8
15/16
7/8
15/16
7/8		 3/16
1/4
3/16
1/4
3/16		 1.6
2.0
2.3
2.8
2.8
2-P3V45
2-H3V47
2-P3V47
2-H3V50
2-P3V50		 4.45
4.70
4.70
4.95
4.95		 4.50
4.75
4.75
5.00
5.00		 P1
H
P1
H
P1		 2
H4
2
H4
2		 - 23/16
11/2
23/16
11/2
23/16		 115/16
11/4
115/16
11/4
115/16		 27/32
7/32
27/32
7/32
27/32		 -
-
-
-
-		 3
21/2
3
21/2
3		 5/8
7/16
5/8
7/16
5/8		 15/16
7/8
15/16
7/8
15/16		 1/4
3/16
1/4
3/16
1/4		 3.5
3.1
4.0
3.4
4.6
2-H3V53
2-P3V53
2-H3V56
2-P3V56
2-H3V60		 5.25
5.25
5.55
5.55
5.95		 5.30
5.30
5.60
5.60
6.00		 H
P1
H
P1
H		 H4
2
H4
2
H4		 -
-
-
-
-		 11/2
23/16
11/2
23/16
11/2		 11/4
115/16
11/4
115/16
11/4		 7/32
27/32
7/32
27/32
7/32		 -
-
-
-
-		 21/2
3
 21/2
3
21/2		 7/16
5/8
7/16
 5/8
7/16		 7/8
15/16
7/8
15/16
7/8		 3/16
1/4
3/16
1/4
3/16		 3.7
5.6
 3.1
6.0
3.6
2-P3V60
2-Q3V65
2-Q3V69
2-Q3V80
2-Q3V106		 5.95
6.45
6.85
7.95
10.55		 6.00
6.50
6.90
8.00
10.60		 P1
Q1
Q1
Q1
Q1		 2
7C
7C
7C
7C		 -
51/4
55/8
61/2
93/8		 23/16
225/32
225/32
225/32
225/32		 115/16
21/2
21/2
21/2
21/2		 27/32
15/64
15/64
15/64
15/64		 -
21/64
21/64
21/64
21/64		 3
41/8
41/8
41/8
41/8		 5/8
3/4
3/4
3/4
3/4		 15/16
13/4
13/4
13/4
13/4		 1/4
9/32
9/32
9/32
9/32		 6.8
8.3
9.8
10.8
13.5
2-Q3V140
2-Q3V190
2-Q3V250		 13.95
18.95
24.95		 14.00
19.00
25.00		 Q1
Q1
Q1		 7C
7C
7C		 123/4
173/4
235/8		 225/32
225/32
225/32		 21/2
21/2
21/2		 15/64
15/64
15/64		 21/64
21/64
21/64		 41/8
41/8
41/8		 3/4
3/4
3/4		 13/4
13/4
13/4		 9/32
9/32
9/32		 22.5
28.9
43.5


STL 3V-5V-8V V-pulleys

Sheave Diameters Bushing Type Dimensions wt Incl Bush
Dp  De I.D OL L P C H G X E
3-G3V26
3-G3V28
3-G3V30
3-H3V31
3-H3V33		 2.60
2.75
2.95
3.10
3.30		 2.65
2.80
3.00
3.15
3.35		 G
G
G
H
H		 G2
G2
G2
H2
H2		 -
-
-
-
-		 2
2
2
2
2		 1
1
1
11/4
11/4		 5/16
5/16
5/16
5/16
5/16		 13/16
13/16
13/16
9/16
9/16		 2
2
2
21/2
21/2		 7/16
7/16
7/16
7/16
7/16		 13/8
13/8
13/8
13/8
13/8		 3/16
3/16
3/16
3/16
3/16		 1.1
1.6
1.8
1.4
1.8
3-P3V36
3-P3V41
3-P3V45
3-P3V47
3-P3V50		 3.60
4.07
4.45
4.70
4.95		 3.65
4.12
4.50
4.75
5.00		 P1
P1
P1
P1
P1		 5
5
4A
4A
4A		 23/16
29/16
35/16
31/2
313/16		 23/8
23/8
23/16
23/16
23/16		 115/16
115/16
115/16
115/16
115/16		 5/8
5/8
7/16
7/16
7/16		 3/16
3/16
-
-
-		 3
3
3
3
3		 -
-
5/8
5/8
5/8		 15/16
15/16
15/16
15/16
15/16		 1/4
1/4
1/4
1/4
1/4		 2.5
3.0
3.9
4.4
4.9
3-P3V53
3-P3V56
3-P3V60
3-Q3V65
3-Q3V69		 5.25
5.55
5.95
6.45
6.85		 5.30
5.60
6.00
6.50
6.90		 P1
P1
P1
Q1
Q1		 4A
4A
4A
7A
7A		 41/8
43/8
413/16
51/4
55/8		 23/16
23/16
23/16
225/32
225/32		 115/16
115/16
115/16
21/2
21/2		 7/16
7/16
7/16
7/8
7/8		 -
-
-
1/8
1/8		 3
3
3
41/8
41/8		 5/8
5/8
5/8
3/4
3/4		 15/16
15/16
15/16
13/4
13/4		 1/4
1/4
1/4
9/32
9/32		 5.9
7.5
8.0
9.9
11.3
3-Q3V80
3-Q3V106
3-Q3V140
3-R3V190
3-R3V250		 7.95
10.55
13.95
18.95
24.95		 8.00
10.60
14.00
19.00
25.00		 Q1
Q1
Q1
R1
R1		 7B
7C
7C
7C
7C		 61/2
93/8
123/4
173/4
235/8		 225/32
225/32
225/32
35/32
35/32		 21/2
21/2
21/2
27/8
27/8		 7/8
7/8
7/8
11/8
11/8		 1/8
1/8
1/8
1/4
1/4		 41/8
41/8
41/8
53/8
53/8		 3/4
3/4
3/4
7/8
7/8		 13/4
13/4
13/4
2
2		 9/32
9/32
9/32
9/32
9/32		 11.9
15.1
24.5
35.1
55.0
3-R3V335 33.45 33.50 R1 7C 321/4 35/32 27/8 11/8 1/4 53/8 7/8 2 9/32 80.0

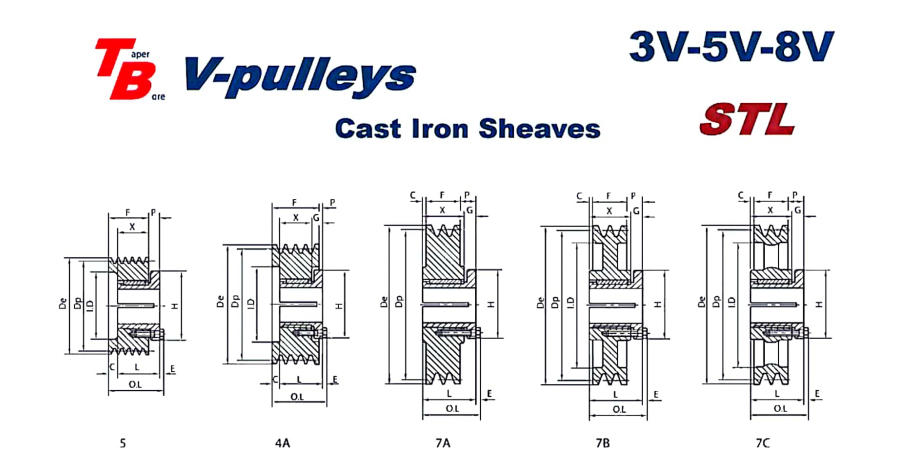

STL 3V-5V-8V V-pulleys

Sheave Diameters Bushing Type Dimensions wt Incl Bush
Dp  De l.D OL L P C H G X E
2-P5V44
2-Q5V46
2-Q5V49
2-Q5V52
2-Q5V55		 4.30
4.50
4.80
5.10
5.40		 4.40
4.60
4.90
5.20
5.50		 P1
Q1
Q1
Q1
Q1		 4A
5
5
7A
7A		 33/16
27/8
31/8
-
-		 23/16
37/8
35/16
225/32
225/32		 115/16
21/2
21/2
21/2
21/2		 1/4
3/4
3/4
3/4
3/4		 -
13/32
17/32
1/16
1/16		 3
41/8
41/8
41/8
41/8		 5/8
-
-
3/4
3/4		 15/16
13/4
13/4
13/4
13/4		 1/4
9/32
9/32
9/32
9/32		 3.8
6.6
6.2
5.6
6.6
2-Q5V59
2-Q5V63
2-Q5V67
2-Q5V71
2-Q5V75		 5.80
6.20
6.60
7.00
7.40		 5.90
6.30
6.70
7.10
7.50		 Q1
Q1
Q1
Q1
Q1		 7A
7A
7A
7A
7A		 -
-
-
-
-		 225/32
225/32
225/32
225/32
225/32		 21/2
21/2
21/2
21/2
21/2		 3/4
3/4
3/4
25/32
25/32		 1/16
1/16
1/16
1/32
1/32		 41/8
41/8
41/8
41/8
41/8		 3/4
3/4
3/4
3/4
3/4		 13/4
13/4
13/4
13/4
13/4		 9/32
9/32
9/32
9/32
9/32		 7.6
9.4
11.0
12.3
14.1
2-Q5V80
2-Q5V85
2-Q5V90
2-Q5V92
2-Q5V97		 7.90
8.40
8.90
9.15
9.65		 8.00
8.50
9.00
9.25
9.75		 Q1
Q1
Q1
Q1
Q1		 7B
7B
7B
7C
7C		 61/4
63/4
71/4
73/8
77/8		 225/32
225/32
225/32
225/32
225/32		 21/2
21/2
21/2
21/2
21/2		 25/32
25/32
25/32
25/32
25/32		 1/32
1/32
1/32
1/32
1/32		 41/8
41/8
41/8
41/8
41/8		 3/4
3/4
3/4
3/4
3/4		 13/4
13/4
13/4
13/4
13/4		 9/32
9/32
9/32
9/32
9/32		 11.6
12.9
16.3
15.1
16.1
2-Q5V103
2-Q5V109
2-Q5V118
2-Q5V125
2-Q5V132		 10.20
10.80
11.70
12.40
13.10		 10.30
10.90
11.80
12.50
13.20		 Q1
Q1
Q1
Q1
Q1		 7C
7C
7C
7C
7C		 87/16
9
10
103/4
117/16		 225/32
225/32
225/32
225/32
225/32		 21/2
21/2
21/2
21/2
21/2		 25/32
25/32
25/32
25/32
25/32		 1/32
1/32
1/32
1/32
1/32		 41/8
41/8
41/8
41/8
41/8		 3/4
3/4
3/4
3/4
3/4		 13/4
13/4
13/4
13/4
13/4		 9/32
9/32
9/32
9/32
9/32		 18.8
19.3
21.4
23.8
25.5
2-R5V140
2-R5V150
2-R5V160
2-R5V212
2-R5V280		 13.90
14.90
15.90
21.10
27.90		 14.00
15.00
16.00
21.20
28.00		 R1
R1
R1
R1
R1		 7C
7C
7C
7C
7C		 121/4
131/4
141/4
193/8
261/4		 35/32
35/32
35/32
35/32
35/32		 27/8
27/8
27/8
27/8
27/8		 11/32
11/32
11/32
11/32
11/32		 5/32
5/32
5/32
5/32
5/32		 53/8
53/8
53/8
53/8
53/8		 7/8
7/8
7/8
7/8
7/8		 2
2
2
2
2		 9/32
9/32
9/32
9/32
9/32		 27.6
30.9
33.3
47.5
71.0

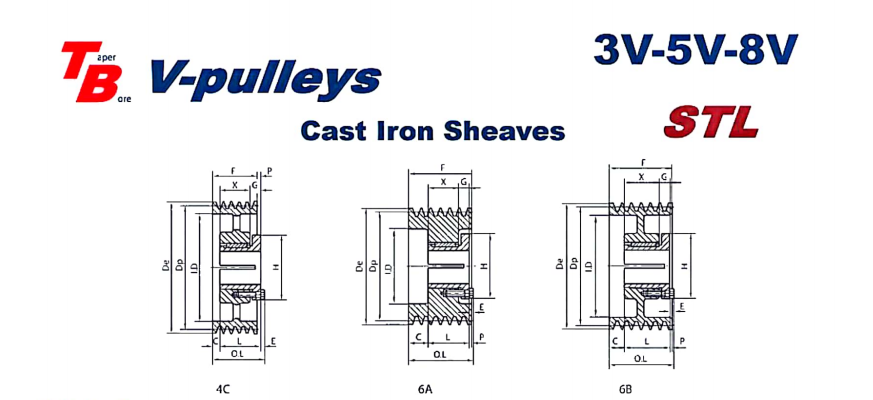

STL 3V-5V-8V V-pulleys

Sheave Diameters Bushing Type Dimensions wt Incl Bush
Dp De l.D OL L P C H G X E
4-S8V125
4-S8V132
4-S8V140
4-S8V150
4-S8V160		 12.30
13.00
13.80
14.80
15.80		 12.50
13.20
14.00
15.00
16.00		 S1
S1
S1
S1
S1		 6A
6A
6A
6B
6B		 91/2
101/4
11
12
13		 47/8
47/8
47/8
47/8
47/8		 43/8
43/8
43/8
43/8
43/8		 1/2
1/2
1/2
1/2
1/2		 -
-
-
-
-		 63/8
63/8
63/8
63/8
63/8		 11/16
11/16
11/16
11/16
11/16		 35/16
35/16
35/16
35/16
35/16		 3/8
3/8
3/8
3/8
3/8		 94
99
114
107
113
4-S8V170
4-S8V180
4-S8V190
4-S8V200
4-S8V212		 16.80
17.80
18.80
19.80
21.00		 17.00
18.00
19.00
20.00
21.20		 S1
S1
S1
S1
S1		 6B
6B
6B
6B
6B		 14
15
16
17
181/4		 47/8
47/8
47/8
47/8
47/8		 43/8
43/8
43/8
43/8
43/8		 1/2
1/2
1/2
1/2
1/2		 -
-
-
-
-		 63/8
63/8
63/8
63/8
63/8		 11/16
11/16
11/16
11/16
11/16		 35/16
35/16
35/16
35/16
35/16		 3/8
3/8
3/8
3/8
3/8		 115
123
132
147
159
4-U8V224
4-U8V300
4-U8V400
4-U8V480
4-U8V530		 22.20
29.80
39.80
47.80
52.80		 22.40
30.00
40.00
48.00
53.00		 Uo
Uo
Uo
Uo
Uo		 4C
4C
4C
4C
4C		 193/8
27
37
45
493/4		 531/32
531/32
531/32
531/32
531/32		 415/16
415/16
415/16
415/16
415/16		 5/8
5/8
5/8
5/8
5/8		 9/16
9/16
9/16
9/16
9/16		 83/8
83/8
83/8
83/8
83/8		 13/16
13/16
13/16
13/16
13/16		 33/4
33/4
33/4
33/4
33/4		 15/32
15/32
15/32
15/32
15/32		 179
218
296
405
450
4-U8V580
4-U8V640		 57.80
63.80		 58.00
64.00		 Uo
Uo		 4C
4C		 543/4
603/4		 531/32
531/32		 415/16
415/16		 5/8
5/8		 9/16
9/16		 83/8
83/8		 13/16
13/16		 33/4
33/4		 15/32
15/32		 495
520
Sheave Diameters Bushing Type Dimensions wt Incl Bush
Dp De l.D OL L P C H G X E
5-S8V125
5-S8V132
5-58V140
5-S8V150
5-S8V160		 12.30
13.00
13.80
14.80
15.80		 12.50
13.20
14.00
15.00
16.00		 S1
S1
S1
S1
S1		 6B
6B
6B
6B
6B		 91/2
101/4
11
12
13		 6
6
6
6
6		 43/8
43/8
43/8
43/8
43/8		 7/8
7/8
7/8
7/8
7/8		 3/4
3/4
3/4
3/4
3/4		 63/8
63/8
63/8
63/8
63/8		 11/16
11/16
11/16
11/16
11/16		 35/16
35/16
35/16
35/16
35/16		 3/8
3/8
3/8
3/8
3/8		 100
109
127
120
127
5-S8V170
5-S8V180
5-S8V190
S-S8V200
5-S8V212		 16.80
17.80
18.80
19.80
21.00		 17.00
18.00
19.00
20.00
21.20		 S1
S1
S1
S1
S1		 6B
6B
6B
6B
6B		 14
15
16
17
181/4		 6
6
6
6
6		 43/8
43/8
43/8
43/8
43/8		 7/8
7/8
7/8
7/8
7/8		 3/4
3/4
3/4
3/4
3/4		 63/8
63/8
63/8
63/8
63/8		 11/16
11/16
11/16
11/16
11/16		 35/16
35/16
35/16
35/16
35/16		 3/8
3/8
3/8
3/8
3/8		 133
140
158
166
174
5-U8V224
5-U8V300
5-U8V400
5-U8V480
5-U8V530		 22.20
29.80
39.80
47.80
52.80		 22.40
30.00
40.00
48.00
53.00		 Uo
Uo
Uo
Uo
Uo		 4C
4C
4C
4C
4C		 193/8
27
37
45
493/4		 617/32
617/32
617/32
617/32
617/32		 415/16
415/16
415/16
415/16
415/16		 1/16
1/16
1/16
1/16
1/16		 11/8
11/8
11/8
11/8
11/8		 83/8
83/8
83/8
83/8
83/8		 13/16
13/16
13/16
13/16
13/16		 33/4
33/4
33/4
33/4
33/4		 15/32
15/32
15/32
15/32
15/32		 197
243
325
440
480
5-U8V580
5-U8V640		 57.80
63.80		 58.00
64.00		 Uo
Uo		 4C
4C		 543/4
603/4		 617/32
617/32		 415/16
415/16		 1/16
1/16		 11/8
11/8		 83/8
83/8		 13/16
13/16		 33/4
33/4		 15/32
15/32		 525
555


Hot Tags: STL 3V-5V-8V V-pulleys,V-pulleys
Related Category
Send Inquiry
Contact Info
Related Products
A Series Roller Chains
A Series Roller Chains View More >>
Heavy Duty Series Roller Chains
Heavy Duty Series Roller Chains View More >>
Side Bow Chains
Side Bow Chains View More >>
B Series Triplex Roller Chains
B Series Triplex Roller Chains View More >>
B Series Duplex Roller Chains
B Series Duplex Roller Chains View More >>
B Series Simplex Roller Chains
B Series Simplex Roller Chains View More >>
News Recommendations
What is the function of a gearbox gear?
What is the function of a gearbox gear?View More >>
Safety Guidelines for Operating Post Hole Digger Gearbox RDF-2300058
Safety Guidelines for Operating Post Hole Digger Gearbox RDF-2300058View More >>
How to Extend the Lifespan of Fertilizer Spreader Gearbox RDF-01-229?
How to Extend the Lifespan of Fertilizer Spreader Gearbox RDF-01-229?View More >>
In what ways can the RDF-30 gearbox optimize flail mower operation?
In what ways can the RDF-30 gearbox optimize flail mower operation?View More >>
How does the price of the Post Hole Digger Gearbox RDF-01-084 compare to similar products?
How does the price of the Post Hole Digger Gearbox RDF-01-084 compare to similar products?View More >>
What maintenance tips are important for the Flail Mower Gearbox RDF-9.313?
What maintenance tips are important for the Flail Mower Gearbox RDF-9.313?View More >>

About Us

Products

News

Contact Us

Copyright © Raydafon Technology Group Co.,Limited All Rights Reserved.

X
We use cookies to offer you a better browsing experience, analyze site traffic and personalize content. By using this site, you agree to our use of cookies. Privacy Policy
Reject Accept
