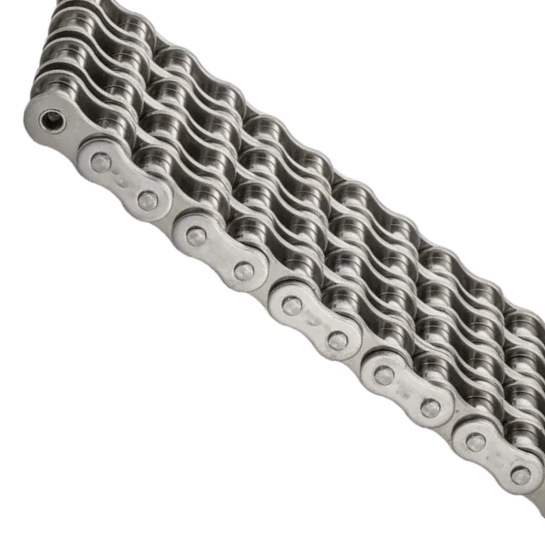

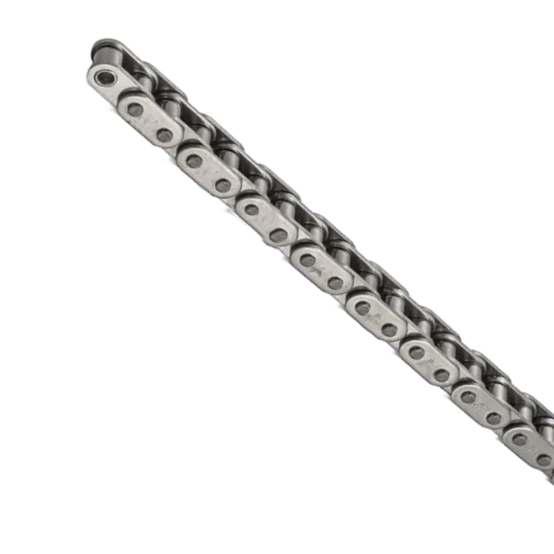

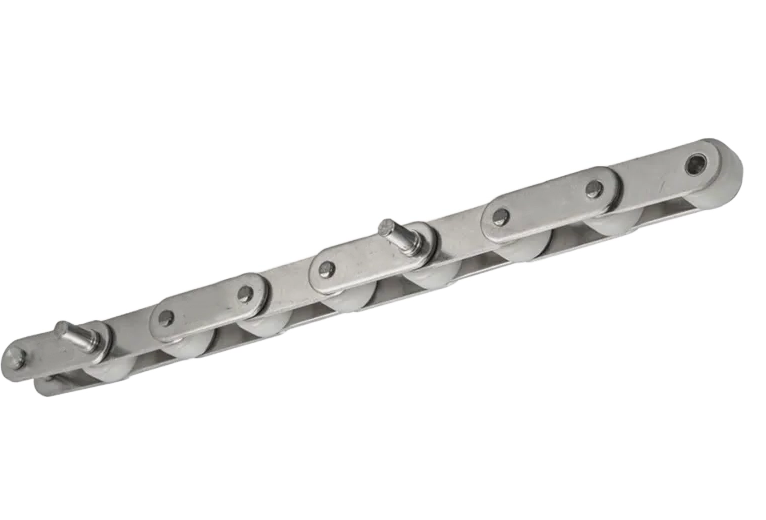

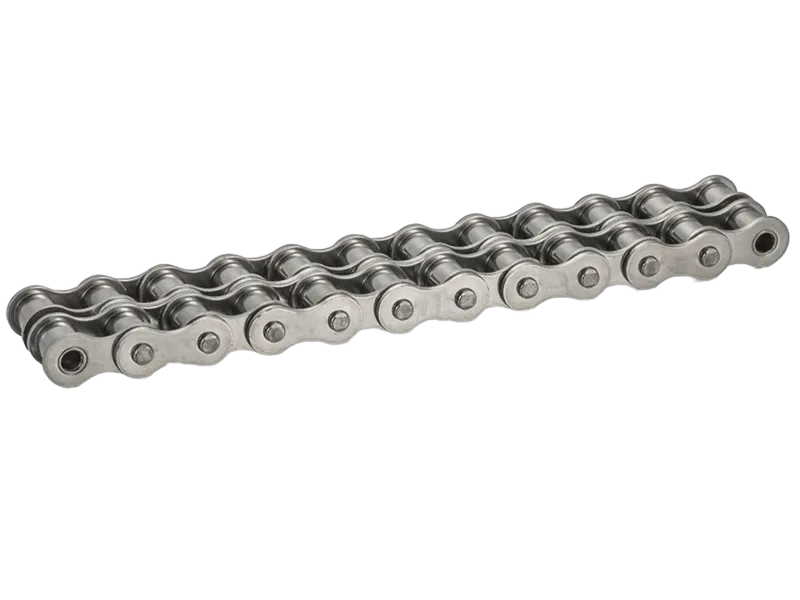

The structure and size of stainless steel roller chain meet ISO 606 and other standards, mainly including stainless steel short pitch roller chain, stainless steel short pitch straight edge chain plate roller chain, stainless steel double pitch roller chain,stainless steel extended pin chain, etc, and various corresponding accessories.
Using high-quality austenitic and martensitic stainless steel materials, advanced processing technology and efficient process equipment, the products have the characteristics of corrosion resistance, high and low temperature resistance, cleanness.etc. There are two kinds of products with tensile strength indexes for users to choose from.
Products are widely used in food processing, dairy products processing, health care.
chemical industry and other industries.

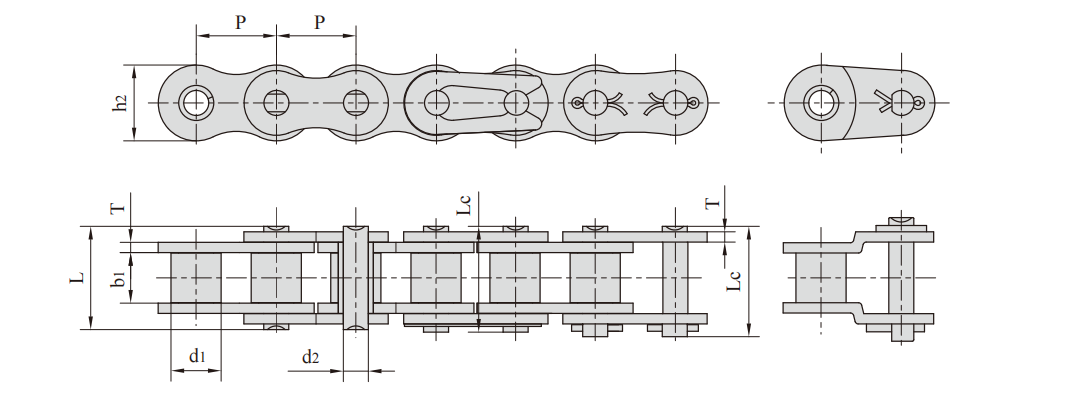

Stainless steel short pitch roller chains
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Breaking load | Weight per meter | |
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | t/T max | Q | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
| *04CSS-1 | 6.350 | 3.30 | 3.18 | 2.31 | 7.90 | 8.40 | 6.00 | 0.80 | 2.5/568 | 0.15 |
| *06CSS-1 | 9.525 | 5.08 | 4.77 | 3.58 | 12.40 | 13.17 | 9.00 | 1.30 | 5.5/1250 | 0.33 |
| 08ASS-1 | 12.700 | 7.95 | 7.85 | 3.96 | 16.60 | 17.80 | 12.00 | 1.50 | 9.6/2182 | 0.63 |
| 41SS-1 | 12.700 | 7.77 | 6.25 | 3.58 | 13.75 | 15.00 | 9.91 | 1.30 | 6.0/1360 | 0.46 |
| 10ASS-1 | 15.875 | 10.16 | 9.40 | 5.08 | 20.70 | 22.20 | 15.09 | 2.03 | 15.2/3455 | 1.03 |
| 12ASS-1 | 19.050 | 11.91 | 12.57 | 5.94 | 25.90 | 27.70 | 18.00 | 2.42 | 21.7/4932 | 1.51 |
| 16ASS-1 | 25.400 | 15.88 | 15.75 | 7.92 | 32.70 | 35.00 | 24.00 | 3.25 | 38.9/8841 | 2.62 |
| 20ASS-1 | 31.750 | 19.05 | 18.90 | 9.53 | 40.40 | 44.70 | 30.00 | 4.00 | 60.0/13636 | 3.94 |
| 24ASS-1 | 38.100 | 22.23 | 25.22 | 11.10 | 50.30 | 54.30 | 35.70 | 4.80 | 75.0/16861 | 5.72 |
| 28ASS-1 | 44.450 | 25.40 | 25.22 | 12.70 | 54.40 | 59.00 | 41.0 | 5.60 | 102.0/22931 | 7.70 |
| 32ASS-1 | 50.800 | 28.58 | 31.55 | 14.27 | 64.80 | 69.60 | 47.80 | 6.40 | 133.8/30079 | 10.20 |
| 04BSS-1 | 6.000 | 4.00 | 2.80 | 1.85 | 6.80 | 7.80 | 5.00 | 0.60 | 2.0/455 | 0.11 |
| 05BSS-1 | 8.000 | 5.00 | 3.00 | 2.31 | 8.20 | 8.90 | 7.10 | 0.80 | 3.5/795 | 0.20 |
| #06BSS-1 | 9.525 | 6.35 | 5.72 | 3.28 | 13.15 | 14.10 | 8.20 | 1.30 | 6.2/1409 | 0.41 |
| 08BSS-1 | 12.700 | 8.51 | 7.75 | 4.45 | 16.70 | 18.20 | 11.80 | 1.60 | 12.0/2727 | 0.70 |
| 10BSS-1 | 15.875 | 10.16 | 9.65 | 5.08 | 19.50 | 20.90 | 14.70 | 1.70 | 14.5/3295 | 0.94 |
| 12BSS-1 | 19.050 | 12.07 | 11.68 | 5.72 | 22.50 | 24.20 | 16.00 | 1.85 | 18.5/4205 | 1.16 |
| 16BSS-1 | 25.400 | 15.88 | 17.02 | 8.28 | 36.10 | 37.40 | 21.00 | 4.15/3.10 | 40.0/9091 | 2.73 |
| 20BSS-1 | 31.750 | 19.05 | 19.56 | 10.19 | 41.30 | 45.00 | 26.40 | 4.50/3.50 | 59.0/13409 | 3.73 |
| 24BSS-1 | 38.100 | 25.40 | 25.40 | 14.63 | 53.40 | 57.80 | 33.20 | 6.00/4.80 | 104.0/25454 | 7.20 |
| 28BSS-1 | 44.450 | 27.94 | 30.99 | 15.90 | 65.10 | 69.50 | 36.70 | 7.50/6.00 | 120.0/26977 | 9.21 |
| 32BSS-1 | 50.800 | 29.21 | 30.99 | 17.81 | 66.00 | 71.00 | 42.00 | 7.00/6.00 | 150.0/34090 | 10.22 |

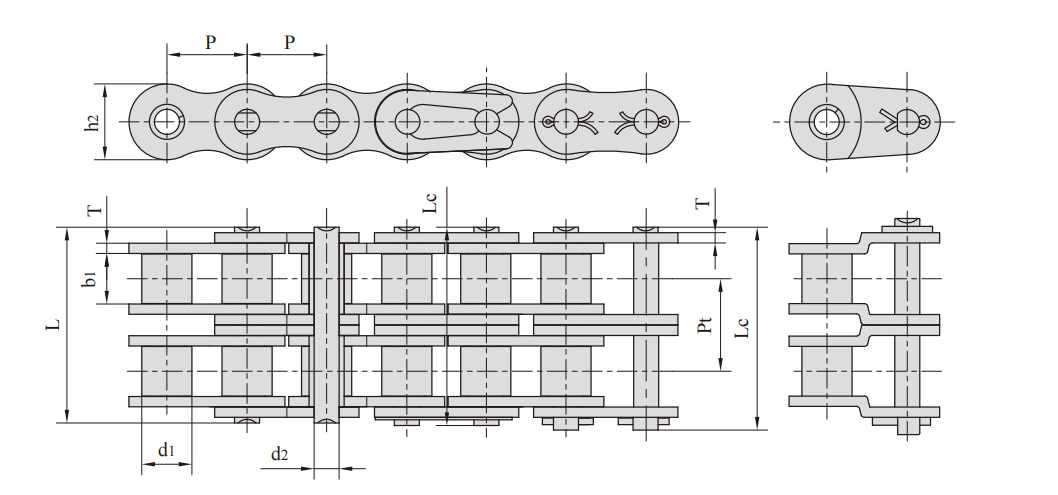

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Transverse pitch | Breaking load | Weight per meter | |
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | t/T max | Pt | Q | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
| *04CSS-2 | 6.350 | 3.30 | 3.18 | 2.31 | 14.50 | 15.00 | 6.00 | 0.80 | 6.40 | 5.0/1124 | 0.28 |
| *06CSS-2 | 9.525 | 5.08 | 4.77 | 3.58 | 22.50 | 23.30 | 9.00 | 1.30 | 10.13 | 11.0/2473 | 0.70 |
| 08ASS-2 | 12.700 | 7.95 | 7.85 | 3.96 | 31.00 | 32.20 | 12.00 | 1.50 | 14.38 | 19.2/4316 | 1.30 |
| 41SS-2 | 12.700 | 7.77 | 6.25 | 3.53 | 25.70 | 26.90 | 9.91 | 1.30 | 11.95 | 12.0/2698 | 0.91 |
| 10ASS-2 | 15.875 | 10.16 | 9.40 | 5.08 | 38.90 | 40.40 | 15.09 | 2.03 | 18.11 | 30.4/6834 | 2.18 |
| 12ASS-2 | 19.050 | 11.91 | 12.57 | 5.94 | 48.80 | 50.50 | 18.00 | 2.42 | 22.78 | 43.4/9757 | 2.92 |
| 16ASS-2 | 25.400 | 15.88 | 15.75 | 7.92 | 62.70 | 64.30 | 24.00 | 3.25 | 29.29 | 77.8/17490 | 5.15 |
| 20ASS-2 | 31.750 | 19.05 | 18.90 | 9.53 | 76.40 | 80.50 | 30.00 | 4.00 | 35.76 | 120.0/26977 | 7.80 |
| 24ASS-2 | 38.100 | 22.23 | 25.22 | 11.10 | 95.80 | 99.70 | 35.70 | 4.80 | 45.44 | 150.0/33720 | 11.70 |
| 28ASS-2 | 44.450 | 25.40 | 25.22 | 12.70 | 103.30 | 107.90 | 41.00 | 5.60 | 48.87 | 204.0/45859 | 15.14 |
| 32ASS-2 | 50.800 | 28.58 | 31.55 | 14.27 | 123.30 | 128.10 | 47.80 | 6.40 | 58.55 | 267.6/60156 | 20.14 |
| 04BSS-2 | 6.000 | 4.00 | 2.80 | 1.85 | 12.30 | 13.30 | 5.00 | 0.60 | 5.50 | 4.0/899 | 0.22 |
| 05BSS-2 | 8.000 | 5.00 | 3.00 | 2.31 | 13.90 | 14.50 | 7.10 | 0.80 | 5.64 | 6.2/1394 | 0.37 |
| #06BSS-2 | 9.525 | 6.35 | 5.72 | 3.28 | 23.40 | 24.40 | 8.20 | 1.30 | 10.24 | 11.8/2653 | 0.87 |
| 08BSS-2 | 12.700 | 8.51 | 7.75 | 4.45 | 31.00 | 32.20 | 11.80 | 1.60 | 13.92 | 21.0/4721 | 1.40 |
| 10BSS-2 | 15.875 | 10.16 | 9.65 | 5.08 | 36.10 | 37.50 | 14.70 | 1.70 | 16.59 | 29.1/6542 | 1.96 |
| 12BSS-2 | 19.050 | 12.07 | 11.68 | 5.72 | 42.00 | 43.60 | 16.00 | 1.85 | 19.46 | 37.0/8318 | 2.46 |
| 16BSS-2 | 25.400 | 15.88 | 17.02 | 8.28 | 68.00 | 71.00 | 21.00 | 4.15/3.10 | 31.88 | 70.7/15894 | 5.42 |
| 20BSS-2 | 31.750 | 19.05 | 19.56 | 10.19 | 77.80 | 81.50 | 26.40 | 4.50/3.50 | 36.45 | 105.6/23740 | 7.87 |
| 24BSS-2 | 38.100 | 25.40 | 25.40 | 14.63 | 101.70 | 106.20 | 33.20 | 6.00/4.80 | 48.36 | 182.0/40915 | 12.43 |
| 28BSS-2 | 44.450 | 27.94 | 30.99 | 15.90 | 124.60 | 129.10 | 36.70 | 7.50/6.00 | 59.56 | 216.0/48557 | 16.60 |
| 32BSS-2 | 50.800 | 29.21 | 30.99 | 17.81 | 124.60 | 129.60 | 42.00 | 7.00/6.00 | 58.55 | 270.0/60698 | 20.34 |

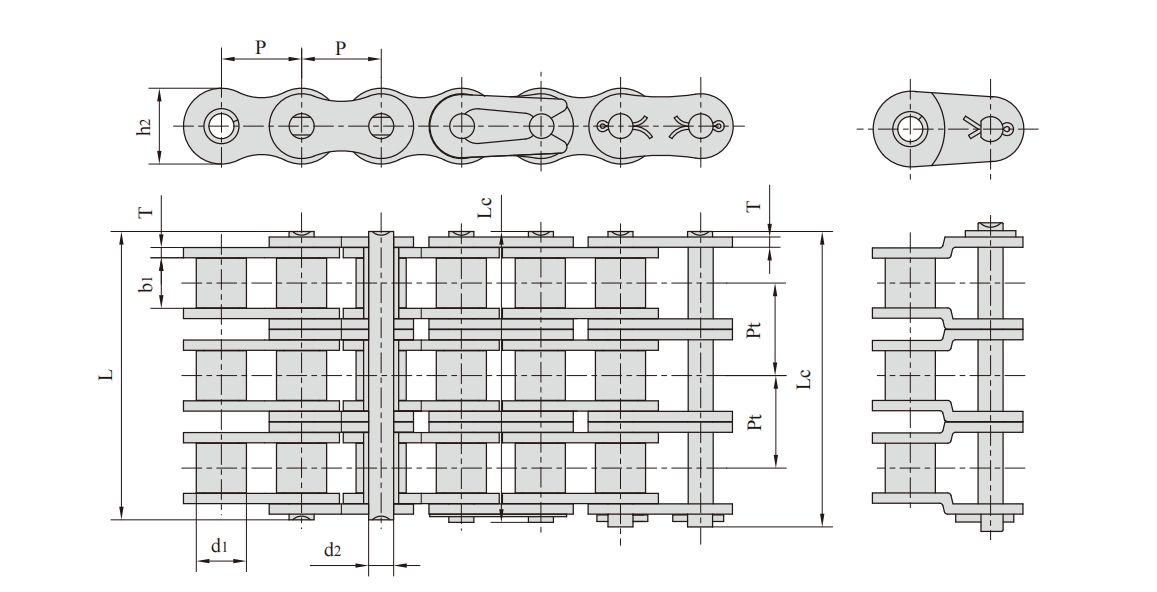

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Transverse pitch | Breaking load | Weight per meter | |
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | t/T max | Pt | Q | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
| *04CSS-3 | 6.350 | 3.30 | 3.18 | 2.31 | 21.00 | 21.50 | 6.00 | 0.80 | 6.40 | 7.5/1686 | 0.44 |
| *06CSS-3 | 9.525 | 5.08 | 4.77 | 3.58 | 32.70 | 33.50 | 9.00 | 1.30 | 10.13 | 16.5/3709 | 1.04 |
| 08ASS-3 | 12.700 | 7.95 | 7.85 | 3.96 | 45.40 | 46.60 | 12.00 | 1.50 | 14.38 | 28.8/6474 | 1.97 |
| 10ASS-3 | 15.875 | 10.16 | 9.40 | 5.08 | 57.00 | 58.50 | 15.09 | 2.03 | 18.11 | 45.6/1025 | 3.24 |
| 12ASS-3 | 19.050 | 11.91 | 12.57 | 5.94 | 71.50 | 73.30 | 18.00 | 2.42 | 22.78 | 65.1/14635 | 4.54 |
| 16ASS-3 | 25.400 | 15.88 | 15.75 | 7.92 | 91.70 | 95.10 | 24.00 | 3.25 | 29.29 | 116.7/26235 | 7.89 |
| 20ASS-3 | 31.750 | 19.05 | 18.90 | 9.53 | 112.20 | 116.30 | 30.00 | 4.00 | 35.76 | 180.0/40466 | 11.76 |
| 24ASS-3 | 38.100 | 22.23 | 25.22 | 11.10 | 141.40 | 145.20 | 35.70 | 4.80 | 45.44 | 225.0/50580 | 17.53 |
| 28ASS-3 | 44.450 | 25.40 | 25.22 | 12.70 | 152.20 | 156.80 | 41.00 | 5.60 | 48.87 | 306.0/68789 | 22.20 |
| 32ASS-3 | 50.800 | 28.58 | 31.55 | 14.27 | 181.80 | 186.60 | 47.80 | 6.40 | 58.55 | 401.4/90238 | 30.02 |
| 05BSS-3 | 8.000 | 5.00 | 3.00 | 2.31 | 19.50 | 20.20 | 7.10 | 0.80 | 5.64 | 8.8/1978 | 0.57 |
| #06BSS-3 | 9.525 | 6.35 | 5.72 | 3.28 | 33.50 | 34.60 | 8.20 | 1.30 | 10.24 | 17.3/3889 | 1.09 |
| 08BSS-3 | 12.700 | 8.51 | 7.75 | 4.45 | 45.10 | 46.10 | 11.80 | 1.60 | 13.92 | 30.0/6744 | 2.08 |
| 10BSS-3 | 15.875 | 10.16 | 9.65 | 5.08 | 52.70 | 54.10 | 14.70 | 1.70 | 16.59 | 43.6/9802 | 2.92 |
| 12BSS-3 | 19.050 | 12.07 | 11.68 | 5.72 | 61.50 | 63.10 | 16.00 | 1.85 | 19.46 | 55.5/12477 | 3.71 |
| 16BSS-3 | 25.400 | 15.88 | 17.02 | 8.28 | 99.80 | 102.90 | 21.00 | 4.15/3.10 | 31.88 | 106.7/23830 | 8.13 |
| 20BSS-3 | 31.750 | 19.05 | 19.56 | 10.19 | 114.20 | 117.90 | 26.40 | 4.50/3.50 | 36.45 | 155.3/34913 | 11.80 |
| 24BSS-3 | 38.100 | 25.40 | 25.40 | 14.63 | 150.10 | 154.60 | 33.20 | 6.00/4.80 | 48.36 | 276.3/62115 | 20.10 |
| 28BSS-3 | 44.450 | 27.94 | 30.99 | 15.90 | 184.20 | 188.70 | 36.70 | 7.50/6.00 | 59.56 | 318.0/71486 | 26.90 |
| 32BSS-3 | 50.800 | 29.21 | 30.99 | 17.81 | 183.20 | 188.20 | 42.00 | 7.00/6.00 | 58.55 | 402.0/90370 | 31.56 |
