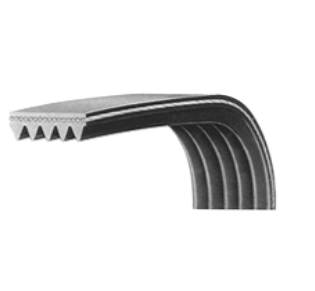

Poly-rib Belt

Raydafon Group's Poly-rib Belt offers superior durability and flexibility for automotive and industrial needs, crafted with advanced materials for lasting performance. It ensures smooth operation, reduces maintenance, and is ideal for mechanics and enthusiasts, delivering reliability and efficiency in every use.

Send Inquiry

Product Description

With characters of V belt and flat belts, V-Ribbed belt has soft and tough property as flat belt and

tight and effective property as V beit.Transmission power so high that at the same condition its 30% higher than common V belts.With tight transmission sys tem, at the same transmission power, its occupied space is 25% smallerthan common y beh,Flat and soft belt is suitable not only for transmission of small pulley but also for high-speedtransmission with speed of 40m/s, Besides its characteristics as slight vibration, few heat divergeand steady working .

Anti-heat, anti-oil, anti-wearing out few elongation and long life

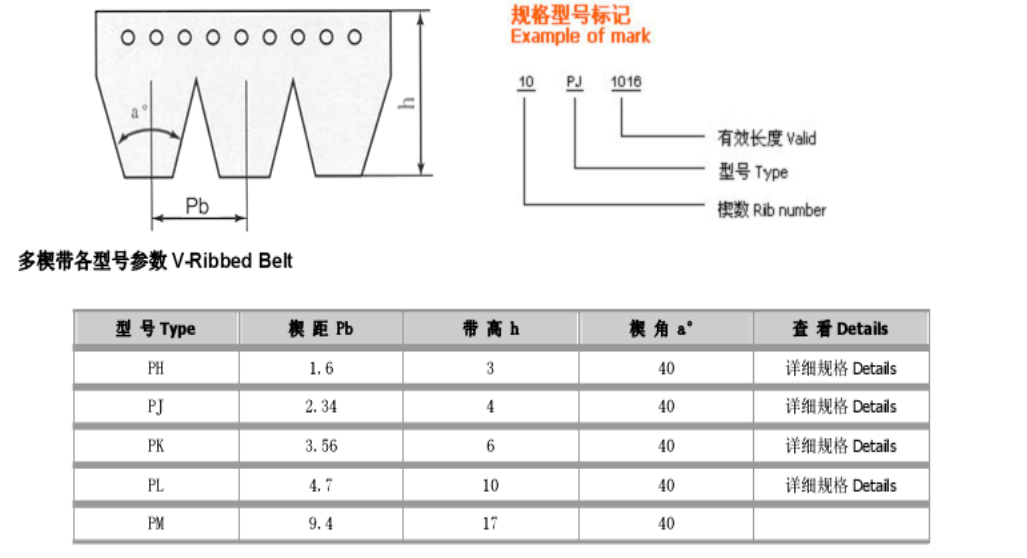

Poly-rib Belt

楔数	规格型号	切边长度	楔数	规格型号	切边长度		楔数	规格型号	切边长度
Rib QTY	Specification Number	length	Rib QTY	Specification Number	length		Rib QTY	Specification Number	length
PK			PK				PK
3-50	PK500	500	3-50	1040		1040	3-50	1580	1580
3-50	PK510	510	3-50	1050		1050	3-50	1590	1590
3-50	PK520	520	3-50	1060		1060	3-50	1600	1600
3-50	PK530	530	3-50	1070		1070	3-50	1610	1610
3-50	PK540	540	3-50	1080		1080	3-50	1620	1620
3-50	PK550	550	3-50	1090		1090	3-50	1630	1630
3-50	PK560	560	3-50	1100		1100	3-50	1640	1640
3-50	PK570	570	3-50	1110		1110	3-50	1650	1650
3-50	PK580	580	3-50	1120		1120	3-50	1660	1660
3-50	PK590	590	3-50	1130		1130	3-50	1670	1670
3-50	PK600	600	3-50	1140		1140	3-50	1680	1680
3-50	PK610	610	3-50	1150		1150	3-50	1690	1690
3-50	PK620	620	3-50	1160		1160	3-50	1700	1700
3-50	PK630	630	3-50	1170		1170	3-50	1710	1710
3-50	PK640	640	3-50	1180		1180	3-50	1720	1720
3-50	PK650	650	3-50	1190		1190	3-50	1730	1730
3-50	PK660	660	3-50	1200		1200	3-50	1740	1740
3-50	PK670	670	3-50	1210		1210	3-50	1750	1750
3-50	PK680	680	3-50	1220		1220	3-50	1760	1760
3-50	PK690	690	3-50	1230		1230	3-50	1770	1770
3-50	PK700	700	3-50	1240		1240	3-50	1780	1780
3-50	PK710	710	3-50	1250		1250	3-50	1790	1790
3-50	PK720	720	3-50	1260		1260	3-50	1800	1800
3-50	PK730	730	3-50	1270		1270	3-50	1810	1810
3-50	PK740	740	3-50	1280		1280	3-50	1820	1820
3-50	PK750	750	3-50	1290		1290	3-50	1830	1830
3-50	PK760	760	3-50	1300		1300	3-50	1840	1840
3-50	PK770	770	3-50	1310		1310	3-50	1850	1850
3-50	PK780	780	3-50	1320		1320	3-50	1860	1860
3-50	PK790	790	3-50	1330		1330	3-50	1870	1870
3-50	PK800	800	3-50	1340		1340	3-50	1880	1880
3-50	PK810	810	3-50	1350		1350	3-50	1890	1890
3-50	PK820	820	3-50	1360		1360	3-50	1900	1900
3-50	PK830	830	3-50	1370		1370	3-50	1910	1910
3-50	PK840	840	3-50	1380		1380	3-50	1920	1920
3-50	PK850	850	3-50	1390		1390	3-50	1930	1930
3-50	PK860	860	3-50	1400		1400	3-50	1940	1940
3-50	PK870	870	3-50	1410		1410	3-50	1950	1950
3-50	PK880	880	3-50	1420		1420	3-50	1960	1960
3-50	PK890	890	3-50	1430		1430	3-50	1970	1970
3-50	PK900	900	3-50	1440		1440	3-50	1980	1980
3-50	PK910	910	3-50	1450		1450	3-50	1990	1990
3-50	PK920	920	3-50	1460		1460	3-50	2000	2000
3-50	PK930	930	3-50	1470		1470	3-50	2010	2010
3-50	PK940	940	3-50	1480		1480	3-50	2020	2020
3-50	PK950	950	3-50	1490		1490	3-50	2030	2030
3-50	PK960	960	3-50	1500		1500	3-50	2040	2040
3-50	PK970	970	3-50	1510		1510	3-50	2050	2050
3-50	PK980	980	3-50	1520		1520	3-50	2060	2060
3-50	PK990	990	3-50	1530		1530	3-50	2070	2070
3-50	PK1000	1000	3-50	1540		1540	3-50	2080	2080
3-50	PK1010	1010	3-50	1550		1550	3-50	2090	2090
3-50	PK1020	1020	3-50	1560		1560	3-50	2100	2100
3-50	PK1030	1030	3-50	1570		1570	3-50	2110	2110

楔数	规格型号	切边长度	楔数	规格型号	切边长度		楔数	规格型号	切边长度
Rib QTY	Specification Number	Secton in Length	Rib QTY	Specification Number	length		Rib QTY	Specification Number	length
PK			PK				PK
3-50	2120	2120	3-50	2660		2660
3-50	2130	2130	3-50	2670		2670
3-50	2140	2140	3-50	2680		2680
3-50	2150	2150	3-50	2690		2690
3-50	2160	2160	3-50	2700		2700
3-50	2170	2170	3-50	2710		2710
3-50	2180	2180	3-50	2720		2720
3-50	2190	2190	3-50	2730		2730
3-50	2200	2200	3-50	2740		2740
3-50	2210	2210	3-50	2750		2750
3-50	2220	2220	3-50	2760		2760
3-50	2230	2230	3-50	2770		2770
3-50	2240	2240	3-50	2780		2780
3-50	2250	2250	3-50	2790		2790
3-50	2260	2260	3-50	2800		2800
3-50	2270	2270	3-50	2810		2810
3-50	2280	2280	3-50	2820		2820
3-50	2290	2290	3-50	2830		2830
3-50	2300	2300	3-50	2840		2840
3-50	2310	2310	3-50	2850		2850
3-50	2320	2320	3-50	2860		2860
3-50	2330	2330	3-50	2870		2870
3-50	2340	2340	3-50	2880		2880
3-50	2350	2350	3-50	2890		2890
3-50	2360	2360	3-50	2900		2900
3-50	2370	2370	3-50	2910		2910
3-50	2380	2380	3-50	2920		2920
3-50	2390	2390	3-50	2930		2930
3-50	2400	2400	3-50	2940		2940
3-50	2410	2410	3-50	2950		2950
3-50	2420	2420	3-50	2960		2960
3-50	2430	2430	3-50	2970		2970
3-50	2440	2440	3-50	2980		2980
3-50	2450	2450	3-50	2990		2990
3-50	2460	2460	3-50	3000		3000
3-50	2470	2470	3-50	3010		3010
3-50	2480	2480	3-50	3020		3020
3-50	2490	2490	3-50	3030		3030
3-50	2500	2500	3-50	3040		3040
3-50	2510	2510	3-50	3050		3050
3-50	2520	2520	3-50	3060		3060
3-50	2530	2530	3-50	3070		3070
3-50	2540	2540	3-50	3080		3080
3-50	2550	2550	3-50	3090		3090
3-50	2560	2560	3-50	3100		3100
3-50	2570	2570	3-50	3110		3110
3-50	2580	2580	3-50	3120		3120
3-50	2590	2590	3-50	3130		3130
3-50	2600	2600	3-50	3140		3140
3-50	2610	2610	3-50	3150		3150
3-50	2620	2620	3-50	3160		3160
3-50	2630	2630	3-50	3170		3170
3-50	2640	2640	3-50	3180		3180
3-50	2650	2650	3-50	3190		3190
