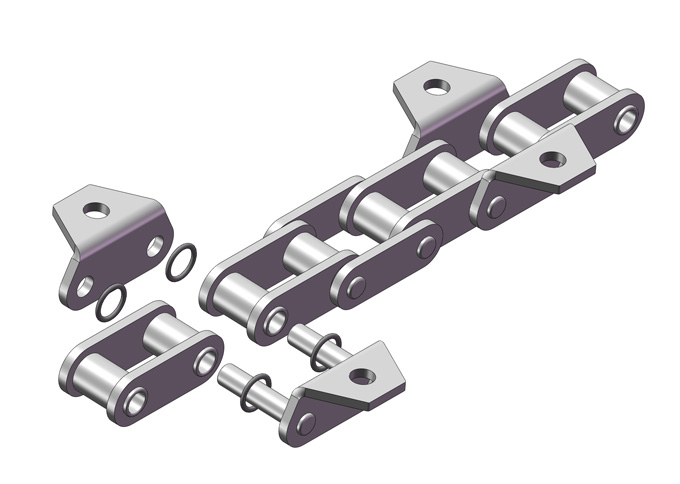

O-Ring Agricultural Chains

Type:O-Ring agricultural chainsMaterial:steelModel:C2040HOR-WK1F1,C2060F77OR,C2062HORSDF1Configuration:rollerOther characteristics:lube-free, heat-resistantChain pitch:30.0MM-40.2MM Surface treatment: shot peening, zinc plating.Application scope: widely used in feed factory, grain cleaning machine a......

Send Inquiry

Product Description

Type:O-Ring agricultural chains

Material:steel

Model:C2040HOR-WK1F1,C2060F77OR,C2062HORSDF1

Configuration:roller

Other characteristics:lube-free, heat-resistant

Chain pitch:30.0MM-40.2MM

Surface treatment: shot peening, zinc plating.

Application scope: widely used in feed factory, grain cleaning machine and grain returning machine.

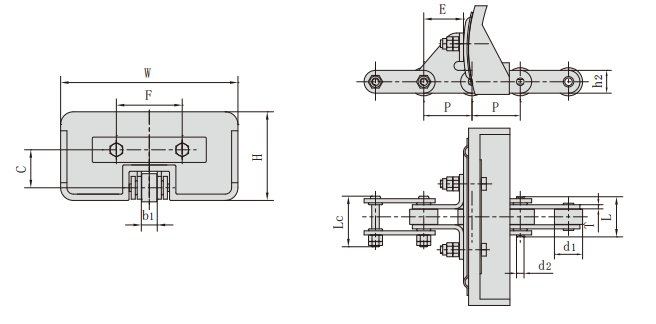

O-Ring Agricultural Chains

Chain No

Pitch

Roller
diameter

Width
between
inner plates

Pin
diameter

Pin
length

Plate
dimension

Attachment
dimension

Tensile
strength

d1
max

b1
min

d2
max

L
ma x

Lc
max

h2
max

T
max

Q
min

kN/lbf

C2062H ORSDF1

38.1

22.23

12.57

5.94

31.7

40.0

18.0

3.25

30.0

140.0

52.0

70.0

31.4

31.8/7150

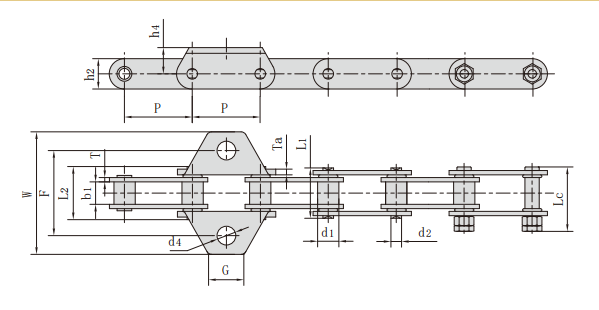

O-Ring Agricultural Chains

Chain No.	Pitch	Roller diameter	Width between inner plates	Pin diameter	Pin length			Plate dimension		Tensile strength	Weight per meter
	P	d1 max	b1 min	d2 max	L1 max	L2 max	Lc max	h2 max	T max	Q min	q
	mm	mm	mm	mm	mm	mm	mm	mm	mm	kN/lbf	kg/m
C2040HOR-WK1F1	25.4	7.95	7.85	3.96	20.5	20.5	26.0	12	2.03	14.1/3170	0.78
C2060F77 OR	38.1	11.91	12.57	5.95	28.5	30.1	37.1	17	2.42	39.2/8813	1.41
