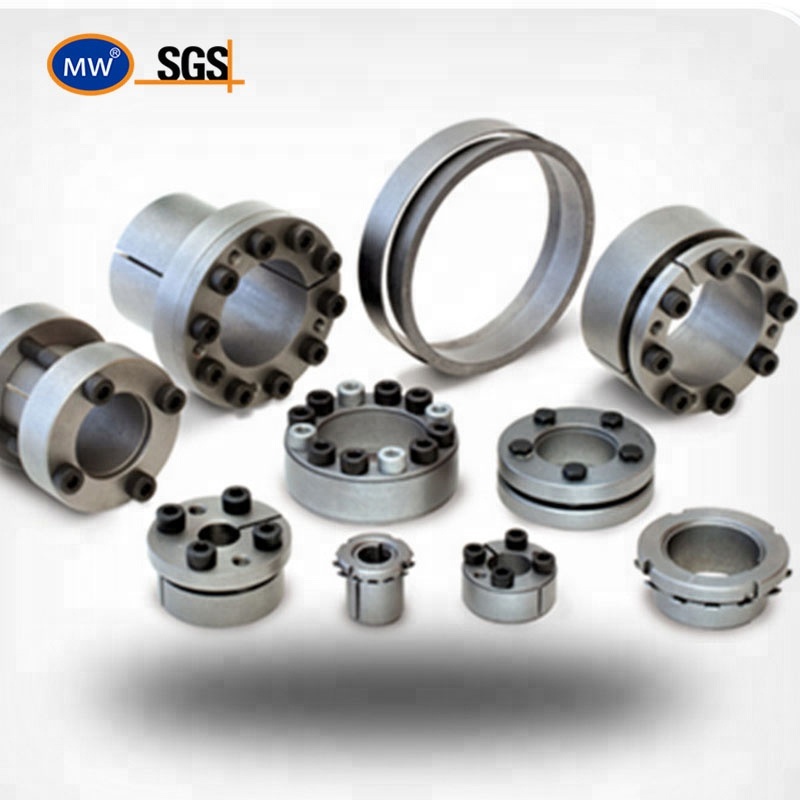

Keyless Locking Devices 01LOCKS.pdf

THE DIMENSION TO FIX (SUGGESTION):

SHAFT: h8

HUB: H8

DIMENSIONS											Axial force	Torque	Contact_Pressure		Locking Screws DIN912-12.9
DIMENSIONS											Axial force	Torque	haft	Hub	Qty	Size	Tihtening Torque
?d mm	?D mm	L1 mm	L2 mm	L3 mm	L mm	D1	D2	H mm	H1 mm	H2 mm	KN	NM	P N/mm	P1 N/mm	Qty.	Size	Ts Nm
100	145	26	33		45						197.4	9870	198	139	14	M12x30	130
110	155	26	33		45						187.4	10800	181	128	14	M12x30	130
120	165	26	33		45						225.6	13500	187	139	16	M12x30	130
130	180	34	38		50						282	18300	168	119	20	M12x35	130
140	190	34	38		50						310.1	21700	168	128	22	M12x35	130
150	200	34	38		50						338.4	25300	170	128	24	M12x35	130
160	210	34	38		50						366.6	29300	171	132	26	M12x35	130
170	225	38	44		58						389	33000	162	123	22	M14x40	207
180	235	38	44		58						424	38000	168	128	24	M14x40	207
19	47	17	20		26						26.8	260	220	93	8	M6x18	17
190	250	46	52		66						495	47000	154	114	28	M14x45	207
20	47	17	20		26						26.8	268	210	93	8	M6x18	17
200	260	46	52		66						531	53000	157	118	30	M14x45	207
22	47	17	20		26						26.8	283	207	96	8	M6x18	17
220	285	50	56		72						631	69400	152	117	26	M16X50	290
24	50	17	20		26						30.1	361	206	103	9	M6x18	17
25	50	17	20		26						30.1	376	206	103	9	M6x18	17
28	55	17	20		26						33.5	420	204	103	10	M6x18	17
30	55	17	20		26						33.5	450	190	103	10	M6x18	17
32	60	17	20		26						40.2	643	214	114	12	M6x18	17
35	60	17	20		26						40.2	703	196	114	12	M6x18	17
38	65	17	20		26						46.9	891	204	122	14	M6x18	17
40	65	17	20		26						46.9	938	200	122	14	M6x18	17
42	75	20	24		32						73.2	1537	228	125	12	M8x22	38
45	75	20	24		32						73.2	1647	208	125	12	M8x22	38
48	80	20	24		32						73.2	1756	190	110	12	M8x22	38
50	80	20	24		32						73.2	1830	189	115	12	M8x22	38
55	85	20	24		32						85.4	2348	200	130	14	M8x22	38
60	90	20	24		32						85.4	2560	180	122	14	M8x22	38
65	95	20	24		32						97.6	3170	191	130	16	M8x22	38
70	110	24	28		38						134.4	4700	211	132	14	M10x25	75
75	115	24	28		38						134.4	5000	194	128	14	M10x25	75
80	120	24	28		38						134.4	5300	182	124	14	M10x25	75
85	125	24	28		38						153.6	6500	196	133	16	M10x25	75
90	130	24	28		38						153.6	6900	181	128	16	M10x25	75
95	135	24	28		38						172.8	8200	196	139	18	M10x25	75
