GEZ Type Couplings is a standard size product for the DIN market, suitable for various industrial applications. The design of this coupling is aimed at meeting the needs of the Pachislot and Pachinko machine markets, and its contacts can be interchangeable with double row GEZD connectors. In addition, this low insertion force type of contact makes the matching operation of the connector easier.
In the specific product description, the GEZ coupling has a spacing of 1.25 millimeters and adopts a detachable crimping design. Its materials include copper alloy, reflow treatment, and comply with UL94V-0 flame retardant rating. These characteristics make GEZ connectors perform well in electrical connections and mechanical strength, making them suitable for applications that require high reliability and durability.
In summary, GEZ Type Couplings are a versatile and reliable coupling product widely used in various industrial fields, especially in situations where fast and convenient electrical connections are required.

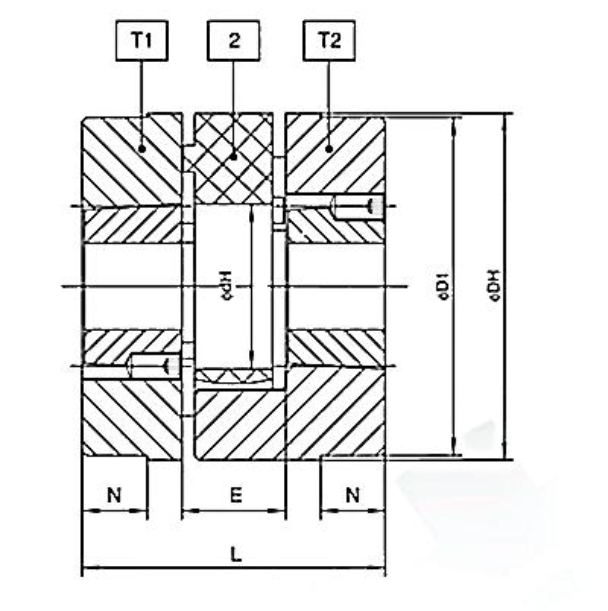

GET Type Couplings图纸
| catalog | Cone sleeve model | component | Basic dimensions | rated torque(N.m) | Maximum speed (rpm) | Moment of inertia (kg.cm²) | weight (kg) | ||||||
| DH | D1 | dH | E | L | N | SHA92 | SHA96 | ||||||
| GET24 | 1008 | T1 | 55 | - | 27 | 18 | 64 | - | 35 | 60 | 8500 | 1.87 | 0.46 |
| T2 | |||||||||||||
| GET-28 | 1108 | T1 | 65 | - | 30 | 20 | 66 | - | 95 | 160 | 7100 | 3.68 | 0.66 |
| T2 | |||||||||||||
| GET-38 | 1108 | T1 | 80 | 78 | 38 | 24 | 70 | 15 | 190 | 325 | 5900 | 8.30 | 1.00 |
| T2 | |||||||||||||
| GET-42 | 1610 | T1 | 95 | 94 | 46 | 26 | 78 | 16 | 265 | 450 | 5000 | 19.19 | 1.60 |
| T2 | |||||||||||||
| GET-48 | 1615 | T1 | 105 | 104 | 51 | 28 | 106 | 28 | 310 | 525 | 4500 | 40.64 | 2.82 |
| T2 | |||||||||||||
| GET-55 | 2012 | T1 | 120 | 118 | 60 | 30 | 96 | 20 | 410 | 685 | 3900 | 60.06 | 3.19 |
| T2 | |||||||||||||
| GET-65 | 2012 | T1 | 135 | 115 | 68 | 35 | 101 | 19 | 625 | 940 | 3500 | 79.47 | 3.62 |
| T2 | |||||||||||||
| GET-75 | 2517 | T1 | 160 | 135 | 80 | 40 | 144 | 36 | 1280 | 1920 | 2980 | 205.37 | 7.17 |
| T2 | |||||||||||||
| 3020 | T2 | 204.58 | 7.01 | ||||||||||
| GET-90 | 3020 | T1 | 200 | 160 | 100 | 45 | 149 | 33 | 2400 | 3600 | 2380 | 492.31 | 10.89 |
| T2 | |||||||||||||
| GET-125 | 3535 | T1 | 290 | 230 | 147 | 60 | 240 | 62 | 6650 | 10000 | 1610 | 3576.66 | 38.71 |
| T2 | |||||||||||||
| 4545 | T1 | 288 | 86 | 4084.01 | 45.05 | ||||||||
| T2 | |||||||||||||
GET Type Coupling
