Crown Wheel And Pinion

Raydafon crown wheel and pinion sets are matched spiral bevel gear pairs for vehicle and tractor differentials. Covers Mitsubishi, Isuzu, Toyota, Nissan, Mazda, Hino, Tata, Ford, Bedford, Fiat, Daihatsu, Suzuki, MF240 and MF265 applications. Produced from 20CrMnTi/8620 heat-treated alloy steel with lapped matched gear sets. Available ratios from 6:35 to 26:23. OEM/ODM, sample orders and wholesale pricing available.

Send Inquiry

Product Description

Raydafon Crown Wheel and Pinion sets are matched spiral bevel gear pairs built for vehicle and tractor differentials. The pinion is driven by the propeller shaft; the crown wheel transfers that torque to the axle shafts at 90 degrees while reducing speed and multiplying torque. Each set is produced from 20CrMnTi or 8620 heat-treated alloy steel and lapped together as a matched pair for correct tooth contact, quiet running and long service life.

If you are sourcing OEM crown wheel and pinion replacement stock for a workshop chain, aftermarket distributor or fleet maintenance programme, this page gives you the vehicle coverage, material construction, quality control points and the exact information we need to quote you accurately.

Sourcing Crown Wheel & Pinion in Bulk?

Get factory-direct pricing, OEM branding and a confirmed fitment check for your vehicle model — reply within 24 working hours.

Get Factory Quote Now Chat on WhatsApp

Matched Lapped Gear Sets Crown wheel and pinion are lapped together as a pair to ensure correct tooth contact pattern, quiet running and long life.

20CrMnTi / 8620 Steel Carburised and quenched to HRC 58-62 surface hardness for high wear resistance and tough core strength.

Wide Vehicle Coverage Mitsubishi, Isuzu, Toyota, Nissan, Mazda, Hino, Tata, Ford, Bedford, Fiat, Daihatsu, Suzuki, MF tractors.

OEM / ODM Ready Produced to your drawing or sample with custom ratios, tooth counts and branding on the packaging.

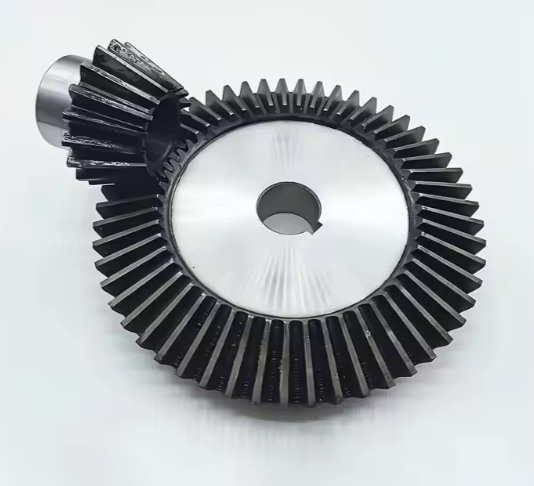

Crown Wheel And Pinion Spiral Bevel Gear Set

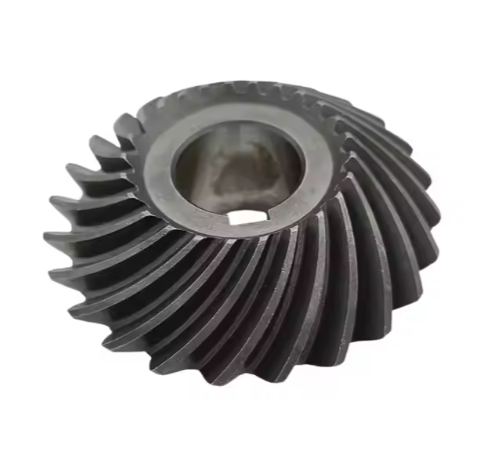

Crown Wheel And Pinion OEM Differential Gear

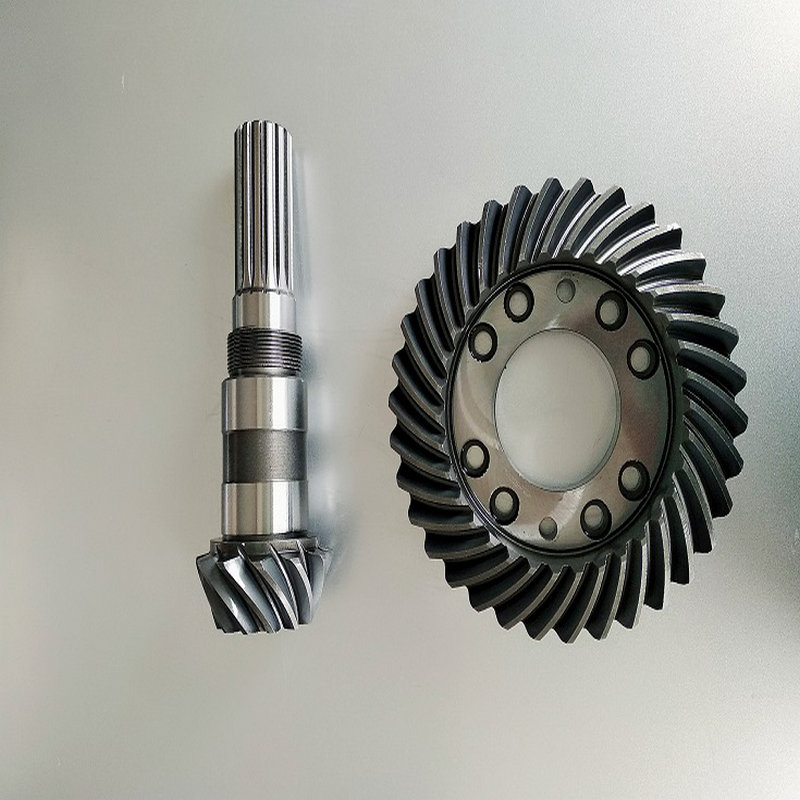

Crown Wheel And Pinion for Truck and Tractor Differential

How a Crown Wheel and Pinion Works

In a rear-wheel-drive or four-wheel-drive vehicle, the propeller shaft delivers torque to the pinion, a small spiral bevel gear at the front of the differential. The pinion meshes with the crown wheel, a larger ring gear that turns the differential carrier and the axle shafts.

This gear pair performs two jobs: it changes the direction of drive by 90 degrees, and it reduces speed while multiplying torque. The ratio between the number of teeth on the crown wheel and the pinion determines the final drive ratio. A worn crown wheel and pinion will produce whining noise, vibration or metal debris in the differential oil — at that point the matched pair must be replaced together, not individually.

Available Gear Ratios

The following ratios are available across our crown wheel and pinion range. Send your required ratio or the tooth count from your existing gear for a confirmed match.

Ratio	Common Applications
6:35, 6:37, 6:39, 6:41	Light trucks, pickups, vans
7:36, 7:37, 7:39	Medium trucks, 4WD vehicles
8:37, 8:39	Heavy trucks, buses
9:40, 9:47	Agricultural tractors, construction machinery
10:37, 10:41	Heavy trucks, tractors
11:39, 11:43	Heavy duty trucks, buses
15:29, 17:28, 17:29	Large tractors, construction equipment
21:28, 21:29, 26:23	Heavy duty trucks, specialized machinery

Vehicle Model Coverage

Below is our current crown wheel and pinion coverage. Each set is matched to the vehicle model and axle ratio. Send your vehicle model, axle number or the tooth count from your existing gear, and we will confirm the correct set.

Brand	Vehicle / Axle Application
Mitsubishi	FP415, 120S L300G, 6D22 (front), 6D22 (rear)
Isuzu	Isuzu Pickup, NQR
Toyota	Rino HT
Suzuki	ST90
Mazda	B2000, B2200
Nissan	Civilian Bus, rear axle
Hino	Hino rear axle
Tata	1210, 1612 truck and pickup differential
Ford	Ford vehicle differential
Bedford	J5-330 Bedford
Fiat	Fiat vehicle differential
Daihatsu	Daihatsu vehicle differential
Massey Ferguson	MF240, MF265 tractor

Looking for other gear types? Browse the full Gear range, including Gearbox Gear and Rack. Custom spiral bevel gears and hypoid gear sets are available on request.

Can't find your vehicle model in the list?

Send Vehicle Model for Fitment Check

Where Crown Wheel and Pinion Sets Are Used

Light trucks and pickups — Isuzu, Toyota, Nissan and Mazda pickups with rear-wheel drive.
Heavy trucks and buses — Mitsubishi 6D22, Hino and Tata trucks in fleet maintenance.
Agricultural tractors — Massey Ferguson MF240, MF265 and similar tractor rear axles.
Passenger cars and 4WD vehicles — Suzuki ST90, Daihatsu and other 4WD applications.
Engineering machinery — construction equipment and specialized machinery differentials.
Aftermarket replacement — distributor and workshop stock for differential rebuilds.
OEM and ODM supply — gear manufacturers needing a reliable, repeatable supply.

Quality Control You Can Audit

Every crown wheel and pinion set goes through incoming material verification, forging or bar stock inspection, machining dimensional checks, carburising and hardness verification to HRC 58-62, tooth grinding and lapping, tooth contact pattern inspection, and a final run-out and marking check before packing.

Read how we manage process control and traceability on our Quality page, or see the full company profile for capacity and equipment.

Ordering & Supply Information

What to send for a fast quotation

Vehicle brand, model and year
Axle model number or OEM part number
Crown wheel and pinion tooth count or ratio, or a photo of the old gear
Quantity, destination port, and whether OEM branding is needed

Supply terms

Sample and trial orders accepted for fitment and quality verification
MOQ depends on vehicle model and stock status — confirm per order
Export packing: individual boxes, then carton + pallet
OEM logo and custom packaging available for volume orders

Get Your Crown Wheel & Pinion Quote

Send your vehicle model, axle number and quantity — our team confirms the correct set and returns the quotation within 24 working hours.

Request Price & Fitment Match Chat on WhatsApp

Installation & Maintenance Tips

Always replace the crown wheel and pinion as a matched pair — mixing a new gear with a worn one will destroy both quickly.
Check and set pinion bearing preload and differential backlash according to the vehicle manufacturer's specification.
Use the correct gear oil for the differential and change it at the recommended interval.
Inspect the tooth contact pattern with marking compound before final assembly — the pattern should be centered on the tooth flank.
Check the differential for metal debris and clean the housing thoroughly before fitting a new gear set.
Re-check differential oil level and look for leaks after the first 1,000 km of operation.

FAQ — Crown Wheel And Pinion

What is a crown wheel and pinion used for? A crown wheel and pinion is a matched spiral bevel gear pair inside a vehicle or tractor differential. The pinion is driven by the propeller shaft, and the crown wheel transfers that torque to the axle shafts at 90 degrees while reducing speed and multiplying torque. It is a core component in rear-wheel-drive vehicles, light trucks, heavy trucks and agricultural tractors.

Which vehicle models does Raydafon cover? Raydafon covers a wide range of Japanese, European and Asian vehicles, including Mitsubishi (FP415, 120S L300G, 6D22 front and rear), Isuzu Pickup, Toyota Rino HT, Suzuki ST90, Mazda, Nissan, Hino, Tata, Ford, Bedford J5-330, Fiat, Daihatsu and Massey Ferguson MF240 / MF265 tractors. Send your vehicle model, axle model or old gear dimensions for a confirmed fitment check.

What material and heat treatment are used? Crown wheel and pinion sets are produced from 20CrMnTi or 8620 equivalent heat-treated alloy steel. After carburising and quenching to HRC 58-62 surface hardness, the gear teeth are ground and the crown wheel and pinion are lapped together as a matched set to ensure correct tooth contact pattern, quiet running and long service life.

What gear ratios are available? Available ratios include 6:35, 6:37, 6:39, 6:41, 7:36, 7:37, 7:39, 8:37, 8:39, 9:40, 9:47, 10:37, 10:41, 11:39, 11:43, 15:29, 17:28, 17:29, 21:28, 21:29 and 26:23. Send your required ratio or the tooth count from your existing gear for a confirmed match.

What is the MOQ and lead time? Sample orders are accepted for fitment and quality verification before bulk purchase. MOQ depends on the vehicle model and whether the gear set is in stock or produced to drawing. Lead time is typically 5–10 days for samples and 25–35 days for mass production. Send your quantity and destination port for a quotation.

How do you ensure correct fitment? Every crown wheel and pinion set is inspected for tooth contact pattern, backlash and run-out before packing. We recommend sending your vehicle model, axle number, or the tooth count from the existing gear so we can confirm the correct matched set. For fleet or OEM orders, we can also supply inspection reports on request.

Still Have Questions About Crown Wheel And Pinion?

Send your vehicle model, axle number and old gear dimensions — our engineers will confirm the correct set and price for your order.

Ask Our Engineer Send Inquiry Form
