Material:steel

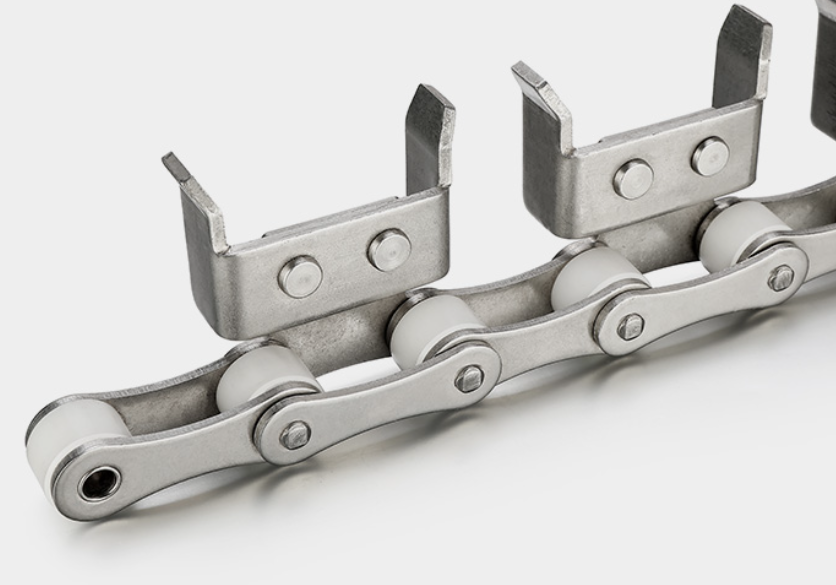

Stainless steel cold drink processing and conveying chain is mainly used in ice cream production line to complete the filling, quick freezing, packaging and conveying of ice cream.
With high-quality stainless steel materials such as o6Cr1gNi10(304) and05Cr17Ni4Cu4Nb (630), advanced processing technology and efficient process equipment, the product has the characteristics of corrosion resistance, wear resistance and low temperature resistance.
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Tensile strength | Weight per meter | |
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | t/T max | Q min | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
| C2082SSA2F3 | 50.80 | 28.58 | 15.75 | 7.92 | 32.70 | 36.5 | 22.60 | 3.25 | 39/8767 | 2.8 |

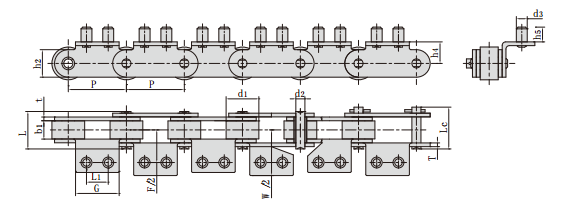

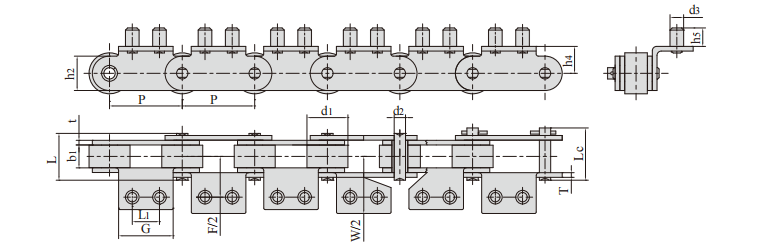

| Chain No. | G | L1 | F | W | h4 | h5 | d3 |
| mm | mm | mm | mm | mm | mm | mm | |
| C2082SSA2F3 | 38.10 | 19.05 | 57.16 | 78.00 | 18.50 | 12.70 | 9.53 |
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Tensile strength | Weight per meter | |
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | t/T max | Q min | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
| C2082SSA2F4 | 50.80 | 28.58 | 15.75 | 7.92 | 32.70 | 36.5 | 22.60 | 3.25 | 39/8767 | 2.8 |

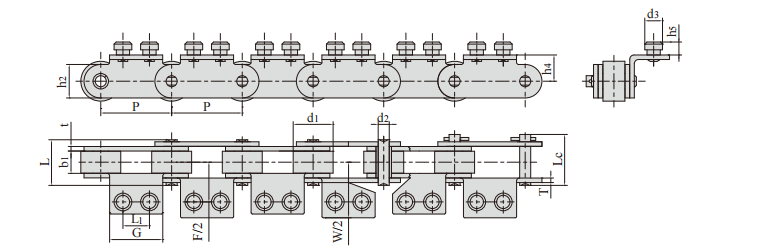

| Chain No. | G | L1 | F | W | h4 | h5 | d3 |
| mm | mm | mm | mm | mm | mm | mm | |
| C2082SSA2F4 | 38.10 | 19.05 | 57.16 | 78.00 | 18.70 | 8.50 | 12.70 |
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Tensile strength | Weight per meter | |
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | t/T max | Q min | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
| C2082SSSA2F1 | 50.80 | 28.58 | 15.75 | 7.92 | 32.70 | 36.5 | 22.60 | 3.25 | 39/8767 | 2.66 |

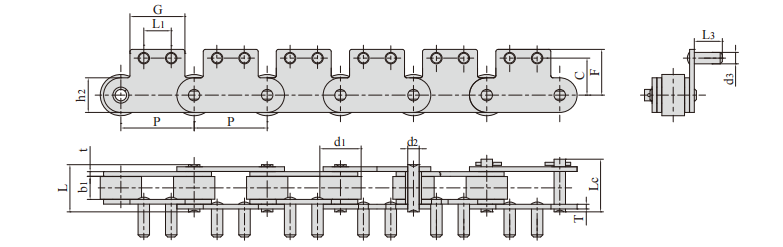

| Chain No. | P | G | L1 | C | F | L | d3 |
| mm | mm | mm | mm | mm | mm | mm | |
| C2082SSSA2F1 | 50.80 | 38.10 | 19.05 | 25.40 | 31.80 | 19.20 | 7.92 |
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate dimension | Attachment dimension | Tensile strength | ||||||
| P | d1 max | b1 min | d2 max | Lc max | h2 max | t/T max | h4 | d5 | d6 | G | L | L3 | Q min | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
| P70F2SS | 70.00 | 30.00 | 15.75 | 11.98 | 39.9 | 28.0 | 3.1 | 20.0 | 12.0 | 9.2 | 50.0 | 25.5 | 7.0 | 22.5/5058 |

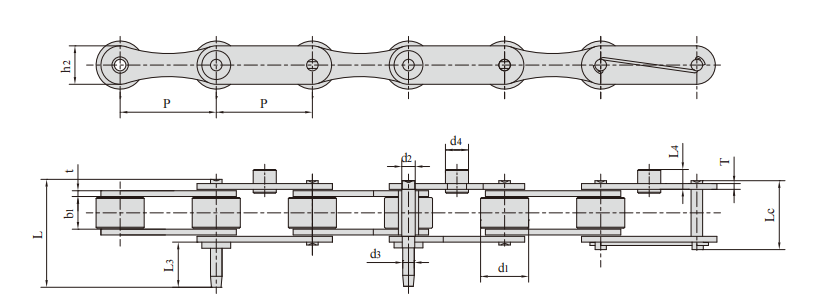

| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate dimension | Attachment dimension | Tensile strength | |||||
| P | d1 max | h1 min | d2 max | L max | Lc max | L3 | h2 max | t/T max | d3 | d4 | L4 max | Q min | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | |
| P50F10SS | 50.00 | 25.00 | 18.00 | 7.00 | 56.2 | 35.7 | 25.5 | 20.0 | 3.0 | 6.00 | 12.0 | 10.0 | 25.0/5620 |
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Inner plate depth | Plate thickness | Tensile strength | Weight per meter | |||
| P | d1 max | b1 min | d2 max | d3 max | L max | Lc max | L3 | h2 max | t/T max | Q min | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kg/m | |
| P100F135SS-D3 | 100.00 | 30.00 | 18.20 | 10.00 | 12.00 | 61.6 | 68.0 | 29.0 | 25.0 | 3.0 | 30/6744 | 2.8 |
