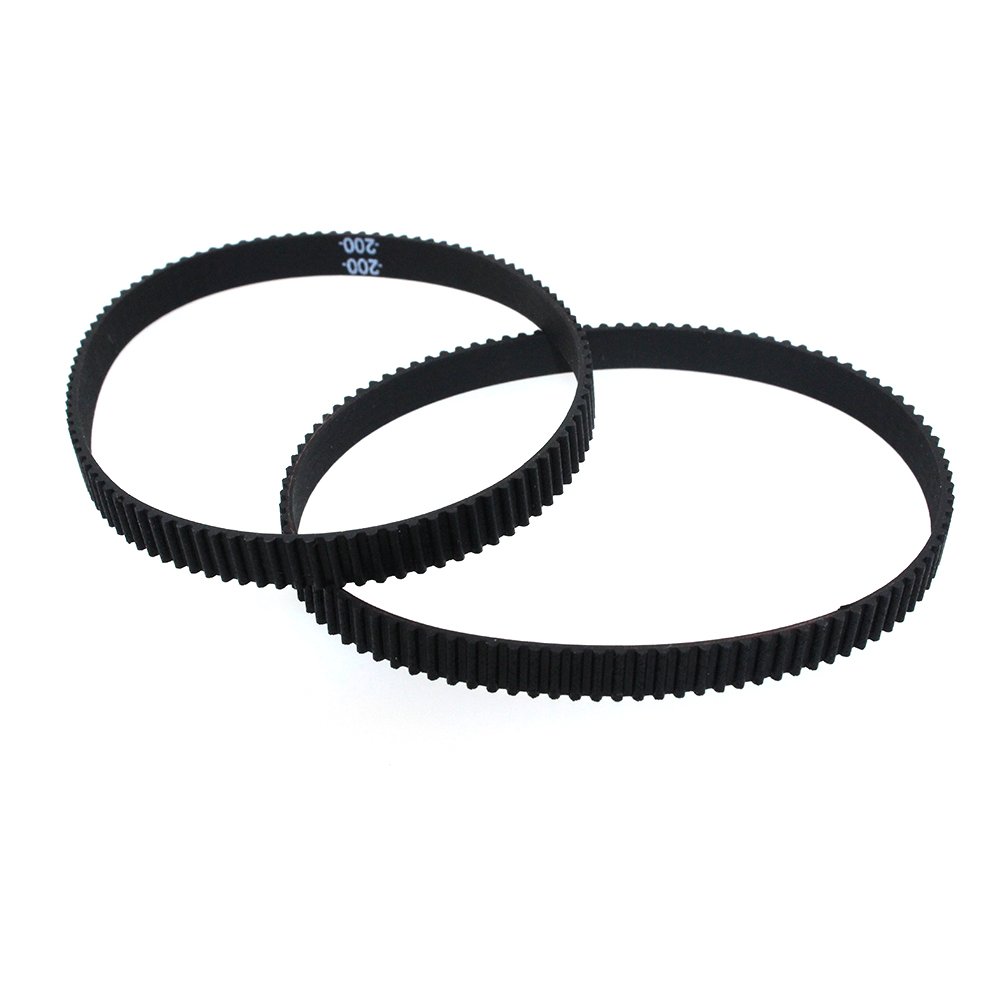

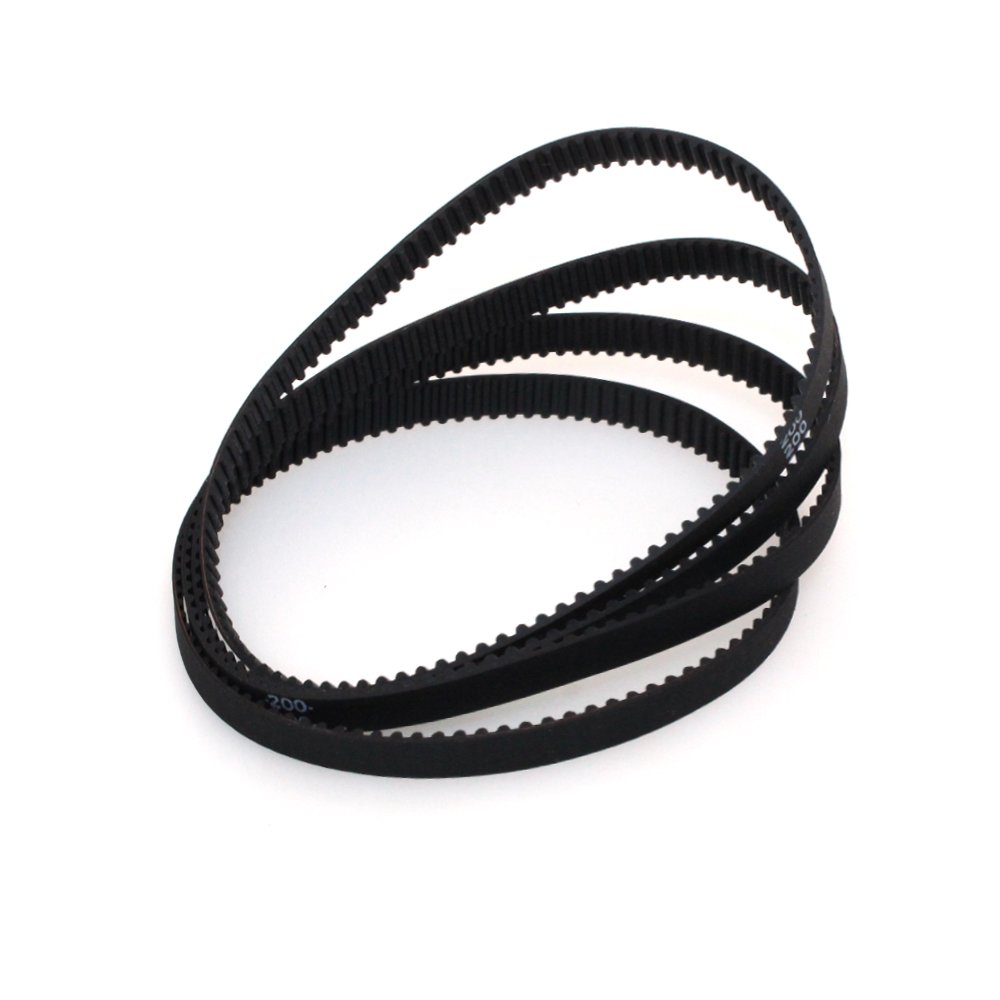

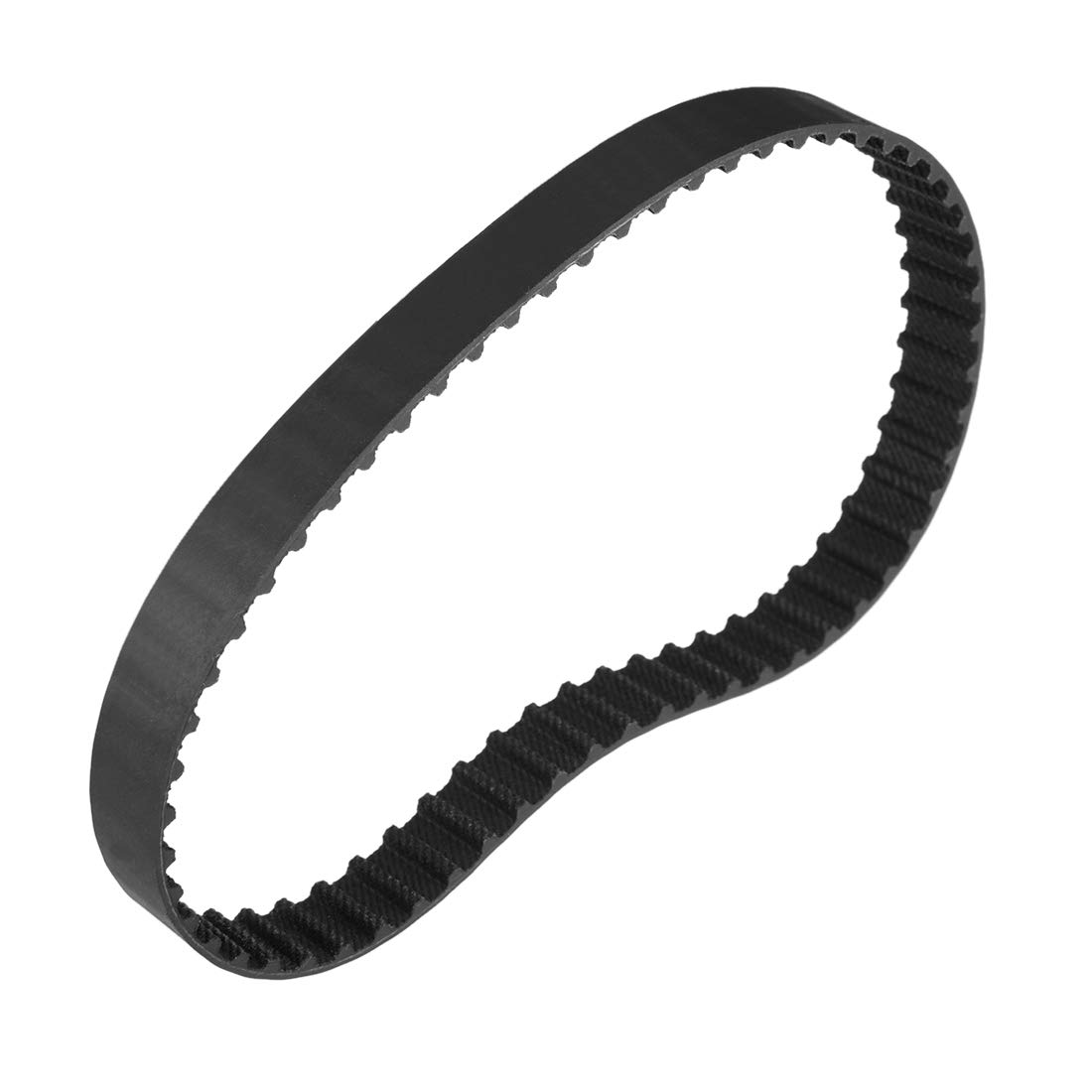

The transmission of synchronous belt is a new transmission mode andtransmits the dynamic force by the meshing of the belt teeth and pulley, It combines respective advantages of gear transmission, chanin transmission and belt transmission.
| 齿型代号Gear code | HTD | STPD/STS | RPP/HPPD | |||||||||||||
| 型号Type | 3m | 5m | 8m | 14m | 20m | S2m | S3m | S4.5m | S5m | S8m | S14m | RP2m | RP3m | RP5m | RP8m | RP14m |
| 节距Picth | 3 | 5 | 8 | 14 | 20 | 2 | 3 | 4.5 | 5 | 8 | 14 | 2 | 3 | 5 | 8 | 14 |
| 齿高Tooth heighe | 1.17 | 2.06 | 3.36 | 6.02 | 8.4 | 0.76 | 1.14 | 1.71 | 1.91 | 3.05 | 5.3 | 0.76 | 1.15 | 1.95 | 3.2 | 6 |
| 带厚belt thickness | 2.4 | 3.8 | 6 | 10 | 13.2 | 1.36 | 1.9 | 2.81 | 3.4 | 5.3 | 10.2 | 1.36 | 1.9 | 3.5 | 5.5 | 10 |
China Belt manufacturer, chinese Belt supplier, produce: v belts, rubber timing belts (synchronous belts), auto timing belts, double-sided tooth synchronous belts,s step less speed change belts, multi-wedge belts, motorcycle V-belts, auto V-belts and various cutting V-belts, flat belts etc rubber drive belts and its auxiliary pulley series products.. We can produce as per customer's drawing or sample. Please feel free to send us your detail enquiries. E-mail: [email protected]
