2CC Type Couplings are a type of shaft connection device widely used in the industrial field. Its main features and product specifications are as follows: 2CC Type Couplings belong to the ANSI standard product series, including sizes from 2CC-050-050 to 2CC-225-225.
This type of coupling adopts a dual piece clamping structure, usually with groove screws and keyway design to ensure precise concentricity and locking function. This design enables the coupling to have a compact structure and is suitable for applications that require high-precision alignment.
This type of coupling is mainly made of carbon steel and undergoes black oxidation treatment to improve corrosion resistance and service life. Pay attention to details in the manufacturing process to ensure that every product meets strict industrial standards. Due to its high precision and reliable performance, it is widely used in various mechanical equipment, such as transmission systems, heavy machinery, and other industrial equipment that requires high-precision alignment.

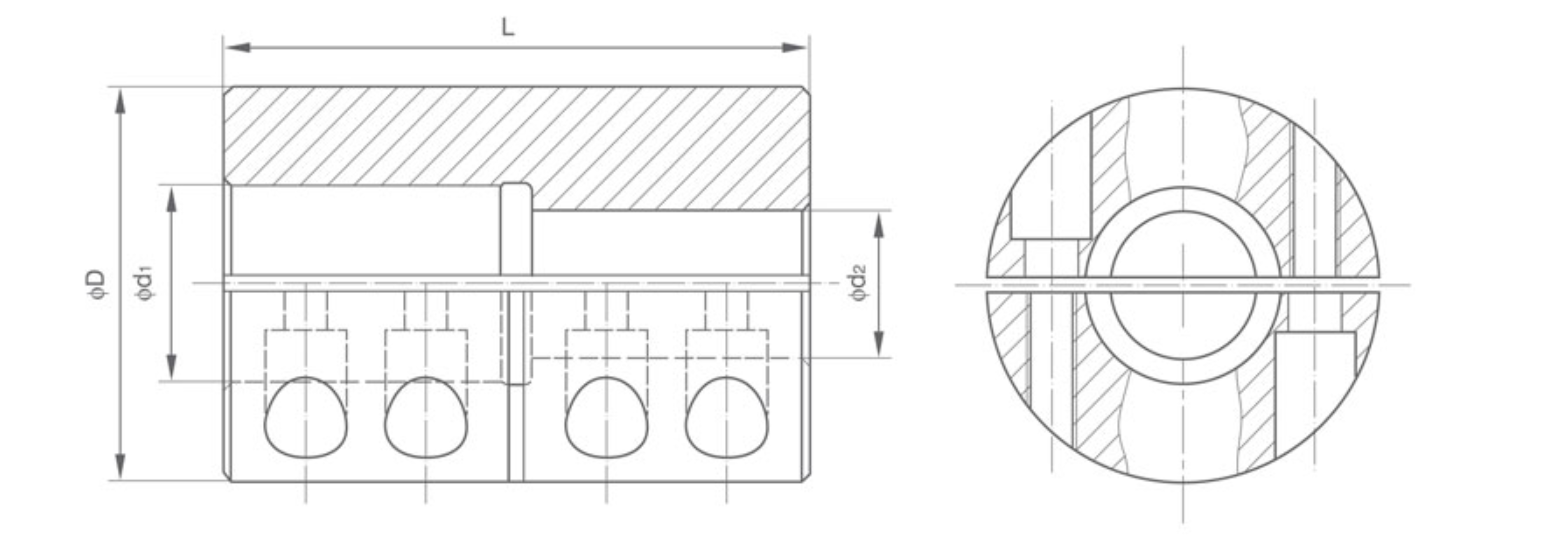

NSPT 2CC Couplings图纸
NSPT 2CC-Coupling
| Catalog | Fundamental Dimensions | Bore | Bolts | Max Torque (in.Lbs) | Max Revolution (rpm) | G (Lbs) | ||||
| Black Oxide Stell | Black Oxide Stell With Keykey | D | L | d1 | D2 | Sizes | Qty | |||
| 2CC-050-050 2CC-062-050 2CC-062-062 2CC-075-062 2CC-075-075 | 2CC-050-050KW 2CC-062-050KW 2CC-062-062KW 2CC-075-062KW 2CC-075-075KW | 1-1/4 1-1/2 1-1/2 1-3/4 1-3/4 | 1-7/8 2-1/4 2-1/4 2-5/8 2-5/8 | 1/2 5/8 5/8 3/4 3/4 | 1/2 1/2 5/8 5/8 3/4 | #8-32×1/2 #10-32×1/2 #10-32×1/2 1/4-28×5/8 1/4-28×5/8 | 8 | 163 275 281 439 447 | 3008 2506 2506 2148 2148 | 0.481 0.852 0.781 1.377 1.377 |
| 2CC-087-087 2CC-100-057 2CC-100-100 2CC-112-112 2CC-125-100 | 2CC-087-087KW 2CC-100-075KW 2CC-100-100KW 2CC-112-112KW 2CC-125-100KW | 1-7/8 2 2 2-1/8 2-1/4 | 2-7/8 3 3 3-1/4 3-3/8 | 7/8 1 1 1-1/8 1-1/4 | 7/8 3/4 1 1-1/8 1 | 1/4-28×5/8 1/4-28×5/8 1/4-28×5/8 1/4-28×3/4 1/4-28×3/4 | 533 614 627 730 827 | 2005 1880 1880 1769 1671 | 1.589 1.821 1.821 2.141 2.653 | |
| 2CC-125-125 2CC-137-100 2CC-137-137 2CC-150-150 2CC-175-175 | 2CC-125-125KW 2CC-137-100KW 2CC-137-137KW 2CC-150-150KW 2CC-175-175KW | 2-1/4 2-3/8 2-3/8 2-1/2 3 | 3-3/8 3-5/8 3-5/8 3-3/4 4-1/2 | 1-1/4 1-3/8 1-3/8 1-1/2 1-3/4 | 1-1/4 1 1-3/8 1-1/2 1-3/4 | 1/4-28×3/4 1/4-28×3/4 1/4-28×3/4 1/4-28×3/4 5/16-24×1 | 843 950 965 1096 1954 | 1671 1583 1583 1504 1253 | 2.653 2.828 2.828 3.097 5.634 | |
| 2CC-200-200 2CC-225-225 | 2CC -200-200KW 2CC-255-255KW | 3-1/4 3-1/2 | 4-7/8 5 | 2 2-1/4 | 2 2-1/4 | 5/16-24×1 5/16-24×1 | 2381 2856 | 1157 1074 | 6.885 8.137 | |
