GEH-A Type Couplings is a type of gear coupling, whose product range includes GEH-A models according to DIN standards. This type of coupling is suitable for various industrial applications and can provide stable and reliable connection methods, ensuring performance and stability in various industrial environments.

Specifically, the design of GEH-A Type Couplings aims to seamlessly interface with flat surfaces and achieve a sturdy connection through bolt fixation. In addition, these couplings come in various size specifications to meet different market demands.

In summary, GEH-A Type Couplings are a versatile and reliable gear coupling widely used in various industrial applications, providing stable and efficient transmission solutions.

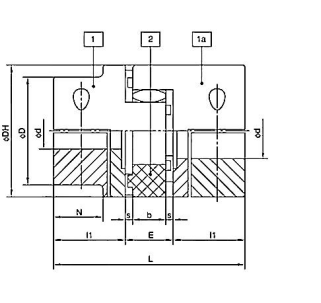

DIN GEH-A Type Couplings图纸

DIN GEH-A Type Couplings

Material: Steel, Aluminum
Catalog	part	Basic dimensions									screw		rated torque(N.m)		Maximum speed (rpm)	Moment of inertia (kg.cm²)	weight (kg)
		L	l1	E	b	S	DH	D	N	max	specifications	TA （N.m）	SHA92	SHA96
GEH-A19	1a	66	25	16	12	2	40	-	-	20	M6X16	14	10	17	10000	0.48	0.18
GEH-A24	1a	78	30	18	14	2	55	-	-	28	M6X20	14	35	60	7300	1.99	0.37
GEH-A28	1a	90	35	20	15	2.5	65	-	-	38	M8X25	35	95	160	6100	4.58	0.64
GEH-A38	1a	114	45	24	18	3	80	-	-	45	M8X30	35	190	325	5000	12.70	1.17
GEH-A42	1	126	50	26	20	3	95	85	28	50	M10X30	69	265	450	4200	24.63	1.56
	1a							-	-	55	M10X35					30.00	1.88
GEH-A48	1	140	56	28	21	3.5	105	95	32	55	M12X35	120	310	525	3800	40.43	2.15
	1a							-	-	60	M12X40					49.56	2.55
GEH-A55	1	160	65	30	22	4	120	110	37	65	M12X40	120	410	685	3300	79.64	3.25
	1a							-	-	70	M12X45					94.56	5.20
GEH-A65	1	185	75	35	26	4.5	135	115	47	70	M12X40	120	625	940	3000	127.38	4.96
	1a							-	-	80	M12X45					190.00	5.85
GEH-A75	1	210	85	40	30	5	160	135	53	80	M16X50	295	1280	1920	2500	276.50	7.82
	1a							-	-	90						400.00	9.06
GEH-A90	1	245	100	45	34	5.5	200	160	62	90	M20X60	580	2400	3600	2000	768.89	13.40
	1a							-	-	110						1170.00	17.00
GEH-A100	1	270	110	50	38	6	225	180	89	110	M16X50	295	3300	4950	1800	1157	16.8
GEH-A110	1	295	120	55	42	6.5	255	200	96	120	M20X60	580	4800	7200	1600	2073	23.9
GEH-A125	1	340	140	60	46	7	290	230	112	140	M24X70	1000	6650	10000	1400	4071	35.6
