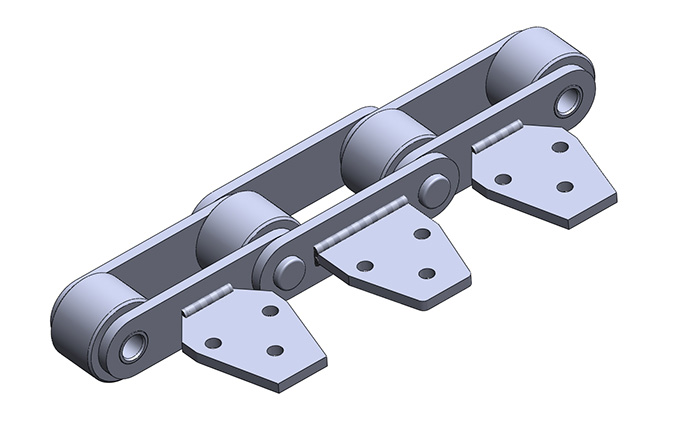

Tobacco mechanical conveying chain mainly includes redrying chain, storage cabinet chain and feeder chain in cigarette manufacturing equipment.
Through optimized design, reasonable material selection and precise manufacturing.the product has the characteristics of environment resistance, wear resistance, stable operation and high reliability, and meets the operation requirements of tobacco machinery with complex working environment, high quality, high efficiency, safety and reliability
Widely used in tobacco production, feed drying and other fields.

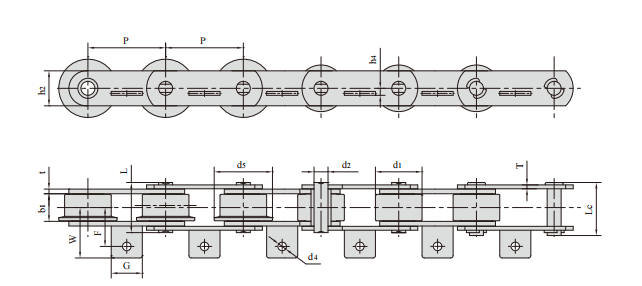

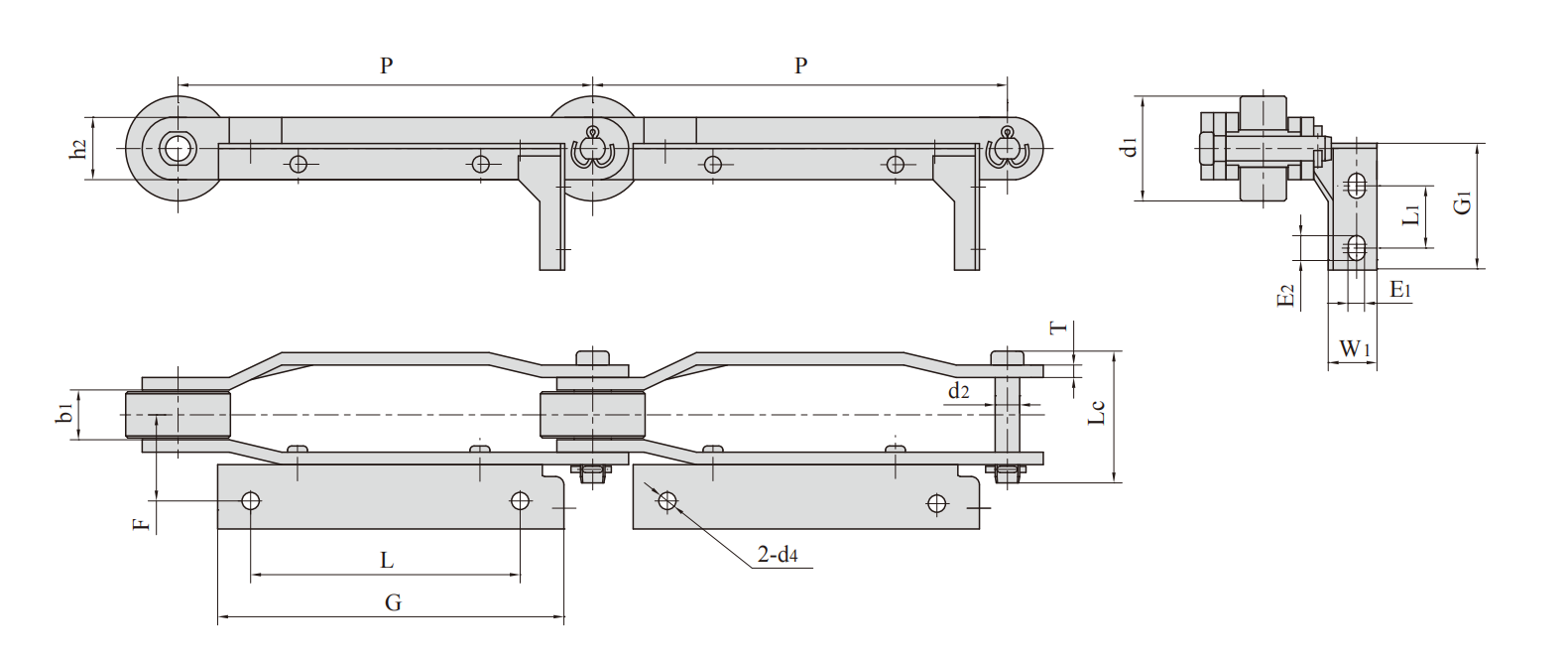

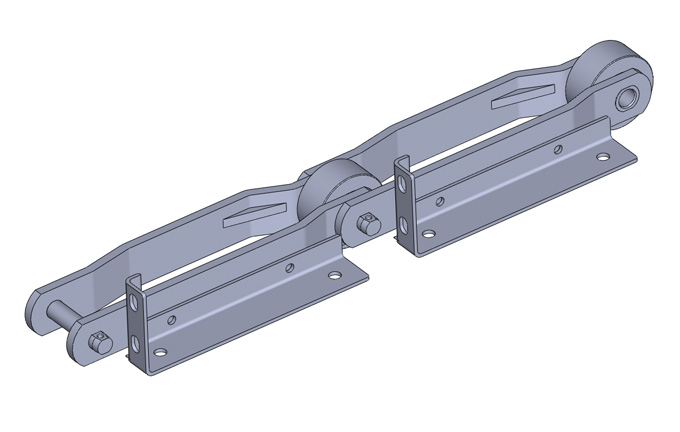

| Chain No | G | L | F | G1 | L1 | W1 | E1 | E2 | d4 |
| mm | mm | mm | mm | mm | mm | mm | mm | mm | |
| P200F74 | 167.0 | 130.0 | 41.5 | 60.0 | 30.0 | 23.0 | 8.0 | 12.0 | 8.0 |
| P200F132 | 168.0 | 127.0 | 44.3 | 63.0 | 27.0 | 26.0 | 7.0 | 7.0 | 8.0 |
| P200F156 | 167.0 | 130.0 | 41.2 | 60.0 | 30.0 | 23.0 | 8.0 | 12.0 | 8.0 |
| P200F177 | 170.0 | 127.0 | 48.0 | 62.0 | 27.0 | 26.0 | 7.0 | 7.0 | 7.0 |
| P203.2F2 | 170.0 | 127.0 | 39.0 | 62.0 | 27.0 | 24.0 | 6.8 | 10.8 | 6.5 |
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate depth | Plate thickness | Tensile strength | Average tensile strength | Weight per meter |
| P | d1 max | b1 min | d2 max | Lc max | h2 max | T max | Q min | Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| P200F74 | 200.0 | 50.0 | 24.0 | 11.9 | 62.0 | 30.0 | 6.0 | 100/22480 | 110.0 | 6.1 |
| P200F132 | 200.0 | 50.0 | 25.5 | 14.0 | 63.0 | 35.0 | 6.0 | 130/29225 | 143.0 | 7.1 |
| P200F156 | 200.0 | 50.0 | 23.0 | 11.9 | 62.0 | 32.0 | 6.3 | 100/22480 | 110.0 | 6.4 |
| P200F177 | 200.0 | 60.0 | 26.0 | 18.0 | 75.0 | 45.0 | 8.0 | 230/51704 | 241.5 | 11.8 |
| P203.2F2 | 203.2 | 50.5 | 24.0 | 11.0 | 64.6 | 32.0 | 6.0 | 120/26977 | 130.0 | 6.2 |

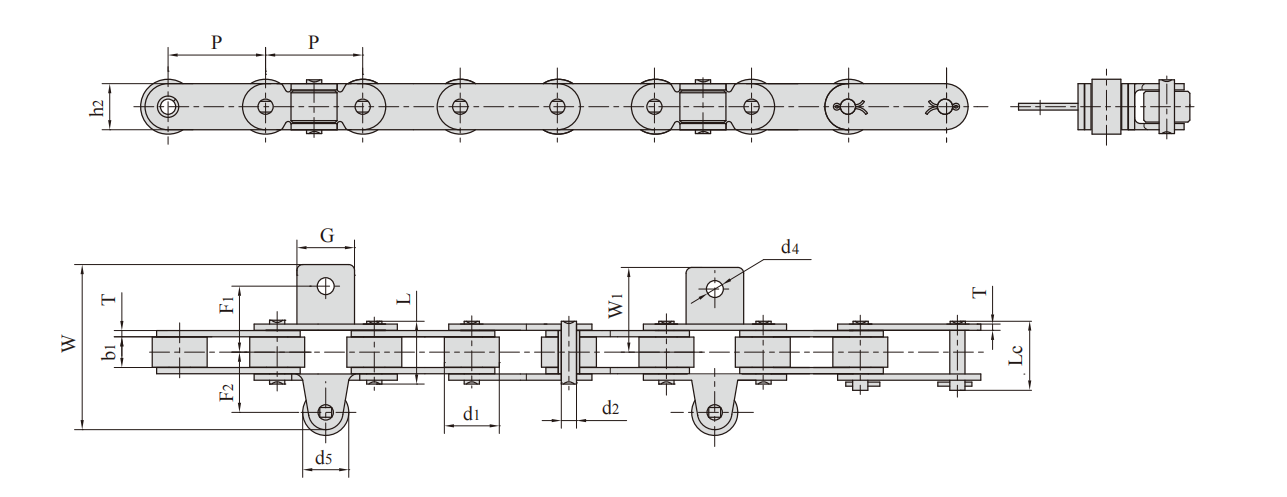

| Chain No. | G | F1 | F2 | W1 | W | d4 | d5 |
| mm | mm | mm | mm | mm | mm | mm | |
| C2082F35 | 30.0 | 33.0 | 32.0 | 45.7 | 86.7 | 8.8 | 24.0 |
| C2082HF70 | 30.0 | 34.0 | 32.0 | 44.0 | 85.0 | 8.6 | 24.0 |
| C2082F78 | 30.0 | 28.5 | 32.0 | 45.7 | 86.7 | 8.8 | 24.0 |
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate depth | Plate thickness | Tensile strength | Average tensile strength | Weight per meter | |
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | T max | Q min | Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| C2082F35 | 50.8 | 28.58 | 15.75 | 7.92 | 32.7 | 36.5 | 24.0 | 3.25 | 55.6/12500 | 60.0 | 3.37 |
| C2082HF70 | 50.8 | 28.58 | 15.75 | 7.92 | 36.2 | 38.9 | 24.0 | 4.00 | 55.6/12500 | 60.0 | 3.31 |
| C2082F78 | 50.8 | 28.58 | 15.75 | 7.92 | 32.7 | 36.5 | 24.0 | 3.25 | 55.6/12500 | 60.0 | 3.37 |

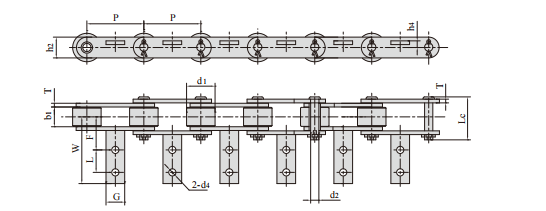

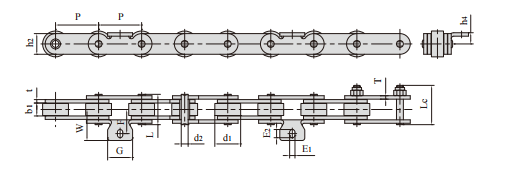

| Chain No | G | L | F | W | h4 | d4 |
| mm | mm | mm | mm | mm | mm | |
| P76.2F30 | 25.0 | 31.8 | 44.5 | 89.8 | 9.0 | 9.7 |
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate depth | Plate thickness | Tensile strength | Average tensile strength | Weight per meter |
| P | d1 max | b1 min | d2 max | Lc max | h2 max | T max | Q min | Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| P76.2F30 | 76.2 | 38.0 | 24.0 | 11.0 | 55.0 | 28.7 | 5.0 | 75/16860 | 80.0 | 5.67 |
| Chain No. | G | F | W | h4 | E1 | E2 |
| mm | mm | mm | mm | mm | mm | |
| P50F46 | 29.0 | 27.5 | 36.5 | 13.0 | 6.2 | 9.5 |
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin dimension | Plate depth | Plate thickness | Tensile strength | Average tensile strength | Weight per meter | ||
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | t/T max | Q min | Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| P50F46 | 50.0 | 30.0 | 14.5 | 8.0 | 35.5 | 45.6 | 24.0 | 4.0 | 50/11240 | 55.0 | 3.73 |

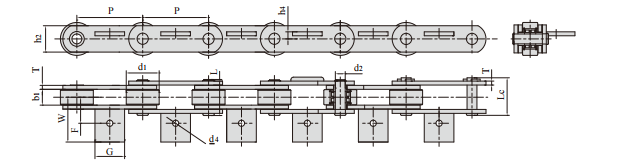

| Chain No. | G | F | W | h4 | d4 |
| mm | mm | mm | mm | mm | |
| P100F74 | 40.0 | 55.00 | 73.0 | 8.0 | 12.0 |
| P100F171 | 40.0 | 55.00 | 73.5 | 10.0 | 12.0 |
| P100F173A1 | 40.0 | 47.25 | 64.3 | 9.5 | 11.0 |
| P100F260A1 | 40.0 | 55.00 | 73.0 | 8.0 | 12.0 |
| P160F104A1 | 50.0 | 64.00 | 99.0 | 15.0 | 13.0 |

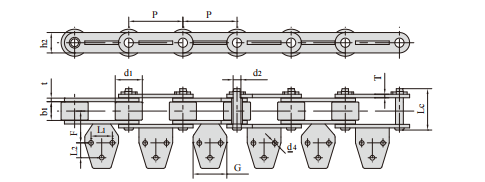

| Chain No. | G | F | L1 | L2 | d4 |
| mm | mm | mm | mm | mm | |
| P76.2F63A3 | 47.5 | 44.7 | 30.0 | 21.0 | 6.7 |
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin dimension | Plate depth | Plate thickness | Tensile strength | Average tensile strength | Weight per meter | |
| P | d1 max | b1 min | d2 max | Lc max | h2 max | t/T max | Q min | Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| P76.2F63A3 | 76.2 | 38.1 | 25.2 | 11.0 | 57.0 | 28.7 | 5.0 | 80/17984 | 88.0 | 7.10 |

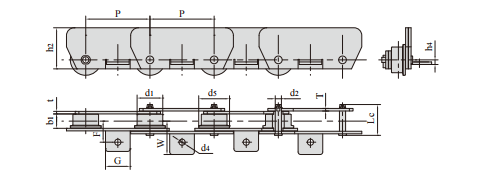

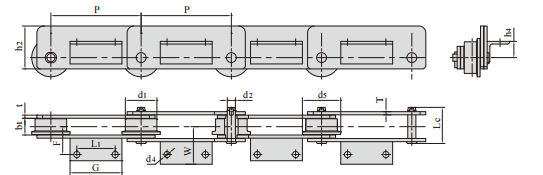

| Chain No. | G | F | W | h4 | d4 |
| mm | mm | mm | mm | mm | |
| M80F36A1-F-125 | 48.0 | 41.0 | 65.0 | 9.0 | 12.0 |
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin dimension | Plate depth | Plate thickness | Tensile strength | Average tensile strength | Weight per meter | ||
| P | d1 max | d5 max | b1 min | d2 max | Lc max | h2 max | t/T max | Q min | Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| M80F36A1-F-125 | 125.0 | 50.0 | 60.0 | 28.0 | 12.0 | 60.0 | 80.0 | 5.0 | 80/17984 | 88.0 | 12.50 |
| Chain No. | G | L1 | F | W | h4 | d4 |
| mm | mm | mm | mm | mm | mm | |
| M160F57A2-F-200 | 115.0 | 85.0 | 62.0 | 83.3 | 36.0 | 13.5 |
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin dimension | Plate depth | Plate thickness | Tensile strength | Average tensile strength | Weight per meter | ||
| P | d1 max | d5 max | b1 min | d2 max | Lc max | h2 max | t/T max | Q min | Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| M160F57A2-F-200 | 200.0 | 70.0 | 90.0 | 37.0 | 18.0 | 80.0 | 95.0 | 7.0 | 160/15968 | 172.8 | 18.80 |
| Chain No. | G | F | W | h4 | d4 |
| mm | mm | mm | mm | mm | |
| P200F33 | 90.0 | 79.0 | 136.0 | 21.5 | 14.0 |
| Chain No. | Pitch | Roller diameter | Width between inner plates | Pin diameter | Pin length | Plate depth | Plate thickness | Tensile strength | Average tensile strength | Weight per meter | |
| P | d1 max | b1 min | d2 max | L max | Lc max | h2 max | T max | Q min | Q0 | q | |
| mm | mm | mm | mm | mm | mm | mm | mm | kN/lbf | kN | kg/m | |
| P200F33 | 200.0 | 100.0 | 48.0 | 30.0 | 107.0 | 112.0 | 80.0 | 12.0 | 648/145670 | 680.0 | 37.8 |
