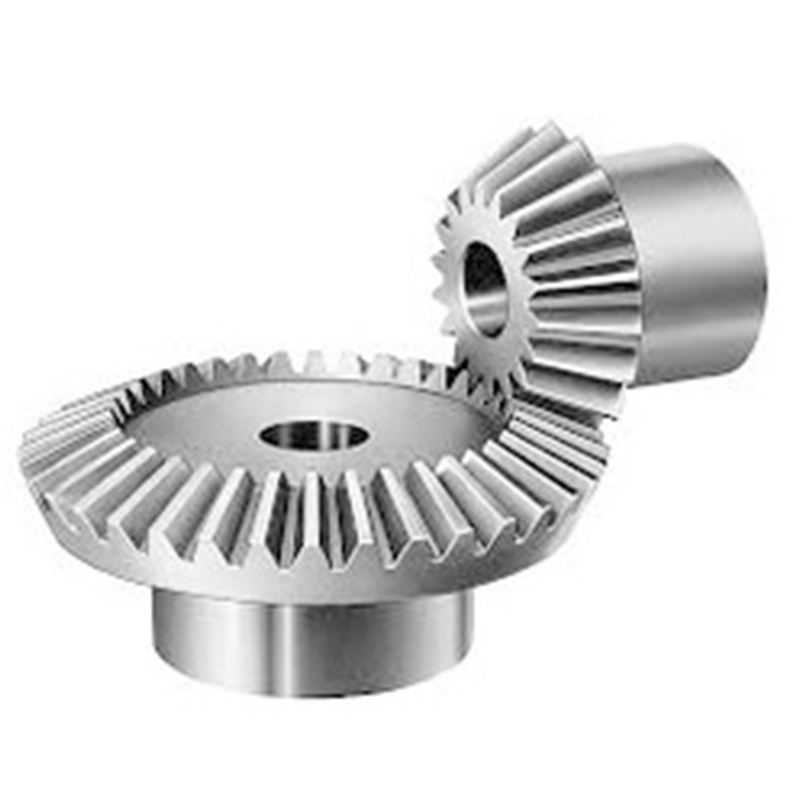

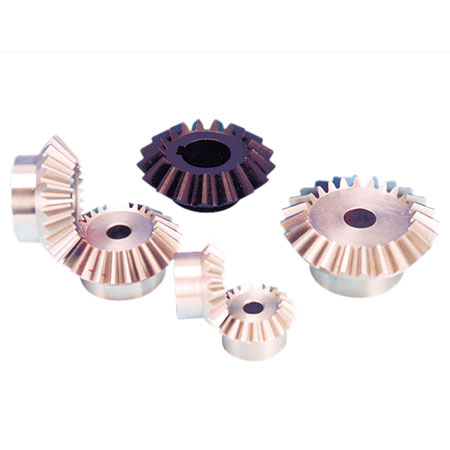

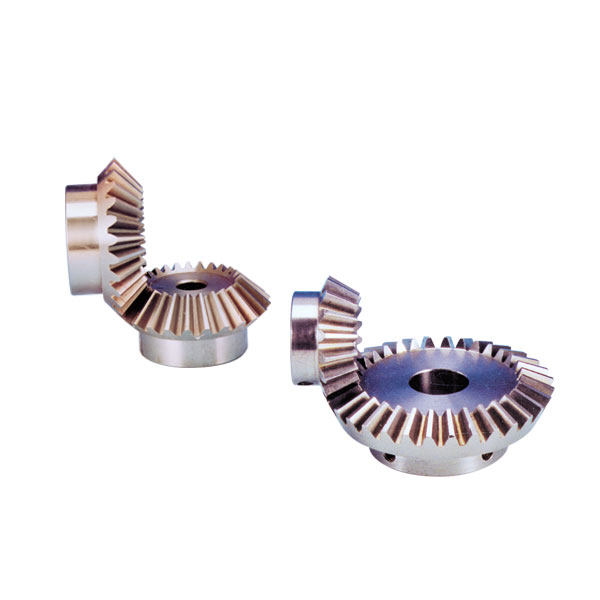

Straight Bevel Gears

Raydafon Group's Straight Bevel Gears deliver precise power transmission in machinery, featuring durable materials and innovative design for reliability. Ideal for engineers and industrial applications, they solve efficiency issues with smooth operation, offering unmatched quality and performance.

Send Inquiry

Product Description

Most of Ocean Straight Bevel Gear are exported to Europe since 2005. Most of Ocean OEM customers send drawings and Ocean produce as per their drawings, if you do not have drawing, Ocean can also produce as per your sample.

Angolodi pressione 20°	Pressure angle 20°	Eingriffswinkel 20°	Angle de pression 20°	Angulo de presion 20°
Materiale C45E	Material C45E	Werkstoff C45E	Matière C45E	Material C45E
UNI EN 10083-1	UNI EN 10083-1	UNI EN 10083-1	UNI EN 10083-1	UNI EN 10083-1

Rapporto 1:1 /Ratio 1:1 /Untersetzung 1:1 / Rapport 1:1 /Relaciones 1:1UNI 6588

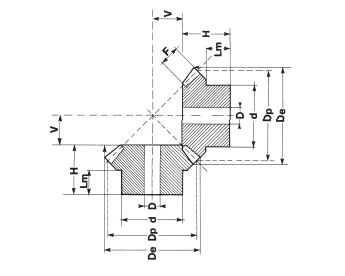

M	Z	cod.	De	Dp	H	F	d	D	V	L	Lm	S
1.5	16	C27A161	26.1	24	18.9	6	20.3	8	7.1	16.9	12	2
	20	C27A201	32.1	30	20	10	22	10	7.4	18	8.5	2
	22	C27A221	35.1	33	20	10	25	10	8.75	18	8.25	2
	25	C27A251	39.6	37.5	23	10	28	10	11.09	21	12	2
	30	C27A301	47.1	45	25	12	30	12	13.35	22.5	12	2.5
2	16	C 28A161	34.8	32	235	8	25.3	10	9.5	205	14	3
	20	C28A201	42.8	40	25	12	32	10	10.78	22	12	3
	22	C28A221	46.8	44	25	12	36	10	12.7	22	11.7	3
	25	C28A251	52.8	50	28	14	40	12	14.28	25	12.3	3
	30	C28A301	62.8	60	30	16	50	12	17.78	27	12.8	3
2.5	16	C 29A161	43.5	40	28.1	10	30.3	12	11.9	24.6	15	3.5
	20	C29A201	53.5	50	30.5	12	40	12	15.43	27	16	3.5
	22	C29A221	58.5	55	305	12	45	12	17.8	27	15.9	3.5
	25	C29A251	66	62.5	33.5	15	50	15	19.48	300	16	3.5
	30	C29A301	78.5	75	35.5	18	55	15	23.63	32	16	3.5
3	16	C30A161	52.2	48	31.7	12	40.3	15	14.3	27.7	18	40
	20	C30A201	64.2	60	35	18	45	15	16	31	13.6	4
	22	C 30A221	70.2	66	35	18	50	15	19	31	13	40
	25	C30A251	79.2	75	38	20	55	15	22	34	16	40
	30	C 30A301	94.2	90	40	22	60	20	28	36	17	40
3.5	16	C35A161	60.9	56	36.4	14	45.3	15	16.6	31.9	20	4.5
	20	C35A201	74.9	70	405	22	55	15	18.13	36	17	4.5
	22	C 35A221	81.9	77	40.5	22	60	15	21.5	36	18	4.5
	25	C35A251	92.4	87.5	435	26	65	20	23.97	39	18	45
	30	C35A301	109.9	105	48	30	70	20	30.02	435	19	4.5
4	16	C 31A161	69.6	64	44.3	15	50.3	15	19.7	393	25	5
	20	C31A201	85.6	80	43	25	60	18	20.74	38	18	5
	22	C31A221	93.6	88	43	25	65	18	24.7	38	18	5
	25	C31A251	105.6	100	45	28	70	20	28.5	40	18	5
	30	C31A301	125.6	120	48	32	80	25	35.67	43	16	5
4.5	16	C45A161	78.3	72	46.3	18	55.3	18	21.7	40.3	25	6
	20	C 45A201	96.3	90	48	28	65	20	23.41	42	18	6
	22	C45A221	105.3	99	48	28	70	20	27.8	42	18	6
	25	C45A251	118.8	112.5	50	32	75	20	31.76	44	18	6
	30	C45A301	141.3	135	53	35	90	25	40.82	47	17	6
5	16	C 32A161	87	80	48.9	18	60.3	20	25.1	42.4	24.19	6.5
	20	C32A201	107.1	100	50.5	30	70	20	26.86	44	18.5	6.5
	22	C32A221	117.1	110	50.5	30	80	20	31.7	44	18.5	6.5
	25	C 32A251	132.1	125	53.5	34	90	20	36.36	47	18	6.5
	30	C 32A301	157.1	150	56.5	38	110	30	45.97	50	18	6.5

Straight Bevel Gears

Rapporto 1:2 /Ratio 1:2 /Untersetzung 1:2/ Rapport 1:2 /Relaciones 1:2UNI6588

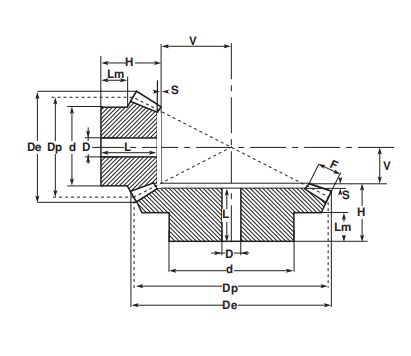

M	Z	cod.	De	Dp	H	F	d	D	V	L	Lm	S
1.5	16	C 27A322	26.7	24	19.5	8	21	10	16.33	18	11.3	1.5
1.5	32	C 27A322	49.3	48	20	8	32	12	7.45	17	10	3
2	16	C28 A322	35.6	32	23	10	26	10	22.41	21	12.2	2
2	32	C28 A322	65.8	64	25	10	40	12	10.21	21	10	4
2.5	16	C29 A322	44.4	40	27.5	12	34	12	28.38	25	14.4	2.5
2.5	32	C29 A322	82.2	80	26	12	50	15	13.1	20	10	6
3	16	C 30A322	53.4	48	28	15	40	15	33.64	25	11.6	3
3	32	C 30A322	98.7	96	30	15	60	15	15.31	24	10	6
3.5	16	C 35A322	62.3	56	33.5	18	48	15	38.83	30	14.4	3.5
3.5	32	C 35A322	115.1	112	31	18	70	20	17.77	24	10	7
4	16	C 31A322	71.1	64	36	20	50	20	44.81	32	13.4	4
4	32	C 31A322	131.6	128	32	20	80	20	20.42	24	10	8
4.5	16	C _45A322	80.1	72	39.5	22	60	20	51	35	15.4	4.5
4.5	32	C _45A322	148	1 44	36	22	90	25	23.21	27	10	9
5	16	C 32A322	88.9	80	50	25	60	20	56.06	45	21.1	5
5	32	C 32A322	164.5	160	38	25	100	25	25.52	28	10	10

Straight Bevel Gears

Angolodi pressione 20°	Pressure angle 20°	Eingriffswinkel 20°	Angle de pression 20°	Angulo de presion 20°
Materiale C45E	Material C45E	Werkstoff C45E	Matière C45E	Material C45E
UNI EN 10083-1	UNI EN 10083-1	UNI EN 10083-1	UNI EN 10083-1	UNI EN 10083-1

Rapporto 1:3 /Ratio 1:3/Untersetzung 1:3 / Rapport 1:3 / Relaciones 1:3UNI6588

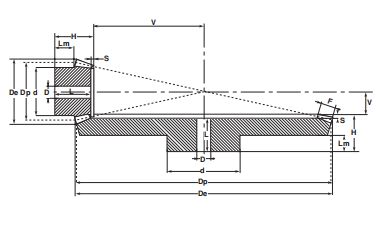

M	Z	cod.	De	Dp	H	F	d	D	V	L	Lm	S
1.5	16	C27A483	26.9	24	24	12	20	10	24.3	23	11.95	1
1.5	48	C27A483	72.9	72	20	12	50	15	7.27	17	10	3
2	16	C28A483	35.8	32	28.5	15	26	12	33.26	27	12.4	1.5
2	48	C28A483	97.3	96	23	15	60	15	9.9	19	10	4
2.5	16	C29A483	44.7	40	32	18	32	12	42.41	30	13	2
2.5	48	C29A483	121.6	120	26	18	70	20	13.23	21	10	5
3	16	C30A483	53.7	48	32	18	40	15	54.25	30	12.1	2
3	48	C30A483	145.9	144	29	18	80	20	16.2	23	10	6
3.5	16	C35A483	62.6	56	38	22	48	15	62.29	35.5	15	2.5
3.5	48	C35A483	170.2	168	31	22	90	20	1848	24	10	7
4	16	C31A483	71.6	64	41.5	25	55	20	71.23	38.5	15.2	3
4	48	C31A483	194.5	192	33	25	100	22	21.2	25	10	8
4.5	16	C45A483	80.6	72	53	28	60	20	80.27	50	23.4	3
4.5	48	C45A483	218.6	216	49	28	100	25	23.93	40	18	9
5	16	C32A483	89.5	80	60	35	60	20	85.61	57	22.5	3
5	48	C32A483	243.1	240	50	35	150	28	25.45	40	20	10

Straight Bevel Gears

Rapporto 1:4 / Ratio 1:4/Untersetzung 1:4/ Rapport 1:4 / Relaciones 1:4UNI6588

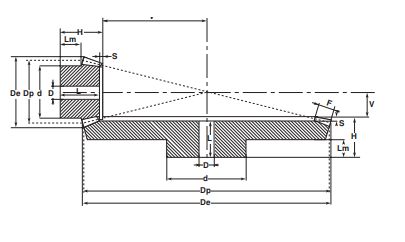

M	Z	cod.	De	Dp	H	F	d	D	V	L	Lm	S
1.5	16	C27A644	26.9	24	25	12	18	10	36.02	24	12.2	1
1.5	64	C27A644	96.7	96	22	12	70	15	8.53	19	10	3
2	16	C28A644	35.9	32	24	15	25	12	49.07	23	8.17	1
2	64	C28A644	129	128	24	15	80	20	10.83	20	10	4
2.5	16	C29A644	44.9	40	30.5	18	30	15	61.99	29	11.7	1.5
2.5	64	C29A644	161.2	160	29	18	90	20	13.77	24	10	5
3	16	C30A644	53.8	48	34	22	40	15	74.05	32	11	2
3	64	C30A644	193.5	192	30	22	100	20	16.41	24	10	6
3.5	16	C35A644	62.8	56	45	25	48	15	87.13	43	19.1	2
3.5	64	C35A644	225.7	224	50	25	100	25	19.32	43	22	7
4	16	C31A644	71.7	64	50	30	50	20	98.21	48	18.5	2
4	64	C31A644	257.9	256	50	30	120	28	21.72	42	20	8
4.5	16	C45A644	80.7	72	53	32	55	20	112.08	50.5	19	2.5
4.5	64	C45A644	290.1	288	53	32	130	30	24.83	44	23	9
5	16	C32A644	89.7	80	58	35	60	20	125.06	55.5	20.6	2.5
5	64	C32A644	322.4	320	58	35	150	30	27.65	48	25	2.5

Straight Bevel Gears

Angolodi pressione 20°	Pressure angle 20°	Eingriffswinkel 20°	Angle de pression 20°	Angulo de presion 20°
Materiale C45E	Material C45E	Werkstoff C45E	Matière C45E	Material C45E
UNI EN 10083-1	UNI EN 10083-1	UNI EN 10083-1	UNI EN 10083-1	UNI EN 10083-1

Rapporto 1:1/Ratio 1:1/Untersetzung 1:1/ Rapport 1:1 / Relaciones 1:1
M	Z	cod.	De	Dp	H	F	d	D	V	Lm
1	16	C26B161	17.4	16	11.2	4	13.3	4	4.8	6.5
	19	C26B191	20.4	19	11.8	4	15.3	4	6.2	6.5
	22	C26B221	23.4	22	12.8	4.7	16.3	5	7.2	6.5
	26	C26B261	27.4	26	13.3	5.5	203	5	8.7	7
	30	C26B301	31.4	30	16	6.4	203	5	10	8
1.5	16	C27B161	26.1	24	18.9	6	20.3	8	7.1	12
	19	C27B191	30.6	28.5	2130	7	203	8	8.7	12
	22	C27B221	35.1	33	22.5	7.5	25.3	8	10.5	12
	26	C27B261	41.1	39	23.2	8.5	28.3	8	12.8	12
	30	C27B301	47.1	45	27.2	10	30.3	12	14.8	12
2	16	C 28B161	34.8	32	23.50	8	253	8	9.5	14
	19	C 28B191	40.8	38	24.2	9	253	8	11.8	12
	22	C28B221	46.8	44	27.9	10	30.3	12	14.1	14
	26	C 28B261	54.8	52	31.4	12	353	12	16.6	14
	30	C28B301	62.8	60	34.1	13	40.3	14	19.9	17
2.5	16	C29B161	43.5	40	28.1	10	303	12	11.9	15
	19	C29B191	51	47.5	27.1	11	353	12	14.9	13
	22	C29B221	58.5	55	30.1	12	45.3	16	17.9	16
	26	C29B261	68.5	65	33.2	15	453	16	20.8	16
	30	C29B301	78.5	75	39	16	50.3	16	25	20
3	16	C30B161	52.5	48	31.7	12	403	12	14.3	18
	19	C 30B191	61.2	57	36	13	40.3	14	18	17
	22	C 30B221	70.2	66	36.9	15	50.3	16	21.1	17
	26	C30B261	82.2	78	38.4	17	503	16	25.6	18
	30	C30B301	94.2	90	43.8	19	60.3	20	30.2	22
3.5	16	C35B161	60.9	56	36.4	14	453	16	16.6	20
	19	C35B191	71.5	66.5	37.80	15	503	18	21	19
	22	C 35B221	81.9	77	39.1	17	55.3	20	24.9	18
	26	C35B261	96	91	4335	20	623	20	29.7	20
	30	C 35B301	110	105	47.1	23	703	20	34.9	22
4	16	C31B161	69.7	64	44.3	15	503	16	19.7	25
	19	C31B191	81.7	76	44.4	18	55.3	20	23.6	22
	22	C31B221	93.7	88	45.9	20	60.3	20	28.1	22
	26	C31B261	109.7	104	48	23	70.3	20	34	22
	30	C31B301	125.7	120	54.2	26	80.3	25	39.8	25
4.5	16	C45B161	78.4	72	4630	17.5	55.3	20	21.7	25
	19	C45B191	91.8	85.5	49	20	62.3	20	26.57	25
	22	C45B221	105.3	99	50.1	22	703	20	31.9	25
	26	C 45B261	123	117	54.7	25	75.3	20	38.6	26
	30	C 45B301	141.4	135	60	29	803	25	45	28
5	16	C32B161	87.1	80	48.90	18	603	20	25.1	25
	19	C32B191	102.1	95	52.2	22	60.3	20	29.8	25
	22	C32B221	117.1	110	58.2	24	803	25	35.8	30
	26	C32B261	137.1	130	6270	29	803	25	42.3	30
	30	C 32B301	157.1	150	68.90	32	803	30	50.1	35

Straight Bevel Gears

Angolodi pressione 20°	Pressure angle 20°	Eingriffswinkel 20°	Angle de pression 20°	Angulo de presion 20°
Materiale C45E	Material C45E	Werkstoff C45E	Matière C45E	Material C45E
UNI EN 10083-1	UNI EN 10083-1	UNI EN 10083-1	UNI EN 10083-1	UNI EN 10083-1

Rapporto 1:1.5 / Ratio 1:1.5 /Untersetzung 1:1.5 / Rapport 1:1.5 / Relaciones 1:1.5
M	Z	cod.	De	Dp	H	F	d	D	V	L	Lm	S
1	16	C26B240	12	16	1Z0	43	133	4	8	13.3	7	15
1	24	C26B240	24.8	24	14.8	43	203	5	5.2	13.3	9.3	15
1.5	16	C27B240	27J	24	20.3	8	20.3	8	10.7	22.7	11.8	22
1.5	24	C27B240	37.2	36	24.9	8	2&3	8	7.1	22.7	16	22
2	16	C28B240	36.2	32	25.2	10	253	8	14.8	24.7	13.8	25
2	24	C28B240	49.7	48	27.2	10	323	8	9.8	24.7	16	25
2.5	16	C29B240	45.2	40	30.8	13.0	323	12	18.2	30.3	16.4	32
2.5	24	C29B240	62.1	60	34	13.0	45.3	16	12	30.3	20	32
3	16	C30B240	543	48	32.4	14.5	40.3	12	22.6	32	16.4	42
3	24	C30B240	74.5	72	36.2	14.5	553	16	14.8	32	20	42
3.5	16	C35B240	63.3	56	40.4	18	453	16	25.6	40	20.4	42
3.5	24	C35B240	86.9	84	44.2	18	553	20	16.8	40	25	42
4	16	C31B24O	72.4	64	46.8	18	503	16	31.2	40	25.4	55
4	24	C31B24O	993	96	45.5	18	60.3	20	20.5	40	25	55
4.5	16	C45B240	81.4	72	47.6	20	60.3	20	35.4	51.3	25J	65
4.5	24	C45B240	111.7	108	57.8	20	80.3	25	23.2	51.3	35	65
5	16	C32B240	90.5	80	54.1	24	60.3	25	37.9	54.5	25.4	6.6
5	24	C32B240	124J	120	61.1	24	80.3	30	24.9	54.5	35	6.6

Straight Bevel Gears

Rapporto 1:2 / Ratio 1:2/Untersetzung 1:2/ Rapport 1:2 / Relaciones 1:2
M	Z	cod.	De	De	H	F	d	D	V	L	Lm	S
1	15	C26B300	17.4	15	11.9	5.0	13.3	4	10.1	13.7	6.5	1.4
1	30	C26B300	30.6	30	15.1	5.0	20.3	5	4.9	13.7	9	1.4
1.5	15	C27B300	26.1	22.5	21.1	9.0	19.3	8	13.9	23.0	11.9	22
1.5	30	C27B300	45.9	45	25.2	9	32.3	8	6.8	23.0	16	22
2	15	C28B300	34.8	30.0	26	11.5	25.3	8	19	26.3	14.1	3
2	30	C28B300	61.2	60	29.8	11.5	403	14	9.2	26.3	18.0	3
2.5	15	C29B300	43.5	37.5	318	15.0	32.3	12	23.2	30	16.2	3.7
2.5	30	C29B300	76.5	75.0	33.7	15	45.3	16	11.3	30	20	3.7
3	15	C30B300	52.2	45	37.3	17.0	40.3	12	28.7	38	19.9	4.1
3	30	C30B300	91.8	90	42.1	17	55.3	16	13.9	38	25	4.1
3.5	15	C35B300	60.9	52.5	46.1	20.5	45.3	16	32.9	40	24.7	5
3.5	30	C35B300	107.1	105	45	20.5	60.3	20	16	40	25	5
4	15	C31B300	69.6	60	48.6	22.5	50.3	20	38.4	51.9	24.6	5.4
4	30	C31B300	122.3	120.0	57.3	22.5	80.3	25	18.7	51.9	35	5.4
4.5	15	C45B300	78.3	67.5	51.4	26	603	20	42.6	54.3	24.7	6
4.5	30	C45B300	137.6	135	60.3	26	80.3	30	20.7	54.3	35	6
5	15	C32B300	87	75	57.6	30	60.3	25	46.4	56	253	6.5
5	30	C32B300	152.9	150	62.5	30	80.3	30	22.5	56	35	6.5

Straight Bevel Gears

Angolodi pressione 20°	Pressure angle 20°	Eingriffswinkel 20°	Angle de pression 20°	Angulo de presion 20°
Materiale C45E	Material C45E	Werkstoff C45E	Matière C45E	Material C45E
UNI EN 10083-1	UNI EN 10083-1	UNI EN 10083-1	UNI EN 10083-1	UNI EN 10083-1

Rapporto 1:2.5 / Ratio 1:2.5/Untersetzung 1:2.5 / Rapport 1:2.5 / Relaciones 1:2.5
M	Z	cod.	De	Dp	H	F	d	D	V	L	Lm	S
1	16	C26B400	18.6	16	14.4	6.5	13.3	4	13.6	13	7.4	1.8
1	40	C26B400	40.4	40	14.8	6.5	25.3	8	5.2	13	9	1.8
1.5	16	C27B400	27.9	24	24.2	115	20.3	8	18.8	25.5	12.3	23
1.5	40	C27B400	60.7	60	27.8	11.5	40.3	14	7.2	25.5	18	23
2	16	C28B400	37.2	32	29.6	15	25.3	8	25.4	29	13.7	3.4
2	40	C28B400	80.9	80	32.4	15	45.3	16	9.6	29	20	3.4
2.5	16	C29B400	46.4	40	38.4	19	32.3	12	31.6	35.9	18.5	3.9
2.5	40	C29B400	101.1	100	39.8	19	55.3	16	12.2	35.9	25.0	3.9
3	16	C30B400	55.7	48	41.9	21.5	40.3	16	39.1	44	19.6	3.9
3	40	C30B400	121.4	120	47.9	21.5	60.3	20	15.1	44	30	3.9
3.5	16	C35B400	65	56	49.1	22.6	45.3	20	47.9	50	25	46
3.5	40	C35B400	141.6	140	54.6	22.6	80.3	25	18.4	50	35	46
4	16	C31B400	743	64	52.5	26	55.3	20	54.5	50.5	25.3	65
4	40	C31B400	161.8	160	57	26	80.3	30	21	50.5	35.0	65
4.5	16	C45B400	83.6	72	563	30	60.3	25	60.7	53	24.6	67
4.5	40	C45B400	182.1	180	59.7	30	80.3	30	23.3	53	35.0	67
5	16	C32B400	92.9	80	65.4	32.0	60.3	25	68.6	58.3	30.1	7.4
5	40	C32B400	2023	200	65.7	32.0	90.3	30	26.3	58.3	40	7.4

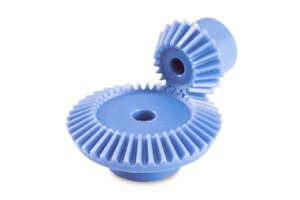

Straight Bevel Gears

Angolodi pressione 20°	Pressure angle 20°	Eingriffswinkel 20°	Angle de pression 20°	Angulo de presion 20°
Materiale C45E	Material C45E	Werkstoff C45E	Matière C45E	Material C45E
UNI EN 10083-1	UNI EN 10083-1	UNI EN 10083-1	UNI EN 10083-1	UNI EN 10083-1

Rapporto 1:3.5 / Ratio 1:3.5 /Untersetzung 1:3.5 / Rapport 1:3.5 / Relaciones 1:3.5
M	Z	cod.	De	Dp	H	F	d	D	V	L	Lm	S
1	16	C26B560	18.7	16	16.6	8.7	13.3	4	19.4	14.2	7.6	2.5
1	56	C26B560	56.3	56	16.7	8.7	30.3	8	5.3	14.2	10	2.5
1.5	16	C27B560	28 1	24	24.0	12	20.3	8	30.0	32	11.5	2.8
1.5	56	C27B560	84.5	84	34.8	12	45.3	14	8.2	32	25	2.8
2	16	C28B560	37.5	32	30.9	16	25.3	8	40.1	33.3	14.1	3.8
2	56	C28B560	112.6	12	37.1	16	55.3	16	10.9	33.3	25	3.8
2.5	16	C29B560	46.8	40	38.9	20	32.3	12	50.1	40	17.9	4.4
2.5	56	C29B560	140.8	140	44.4	20	60.3	16	13.6	40	30.0	4.4
3	16	C30B560	56.2	48	49.9	24	40.3	16	60.1	47.5	24.9	5.2
3	56	C30B560	169	168	52.7	24	80.3	20	16.3	47.5	35	5.2
3.5	16	C35B560	65.6	56	52	25	25.3	20	73.0	49.1	25	6.0
3.5	56	C35B560	197.1	196	55.1	25	80.3	25	19.9	49.1	35	6.0
