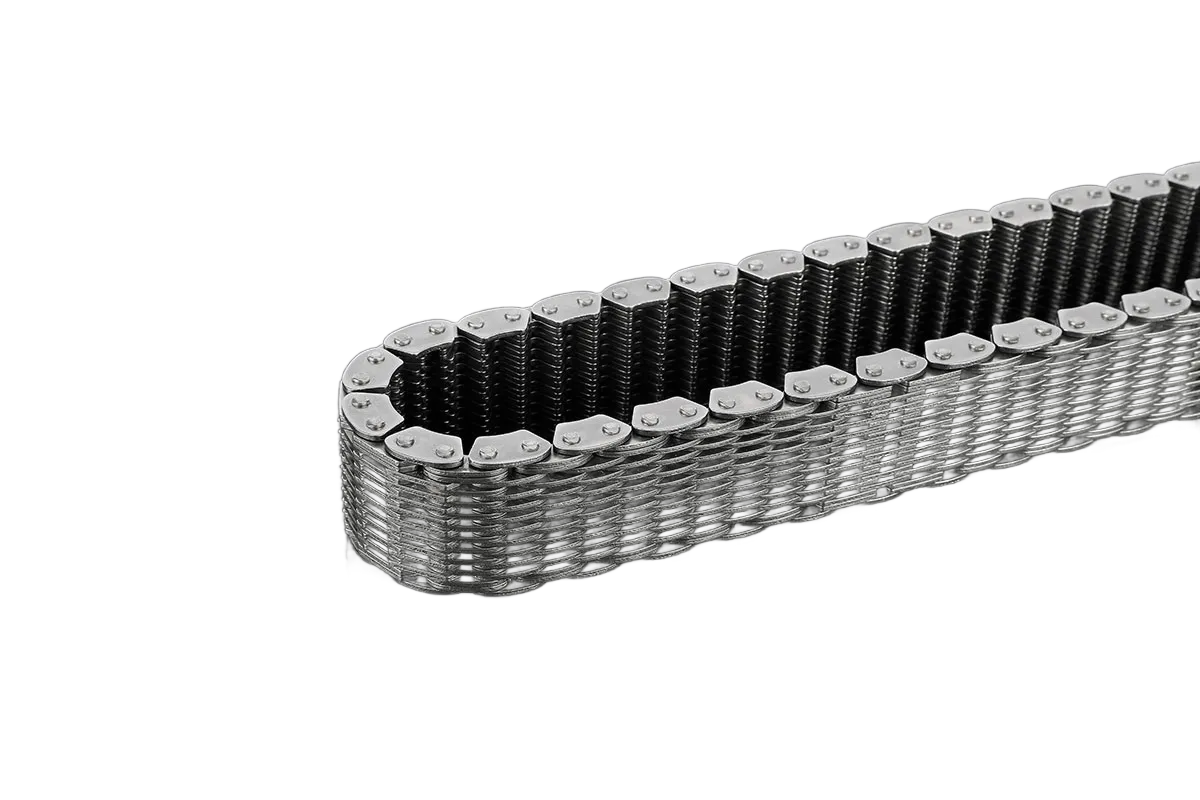

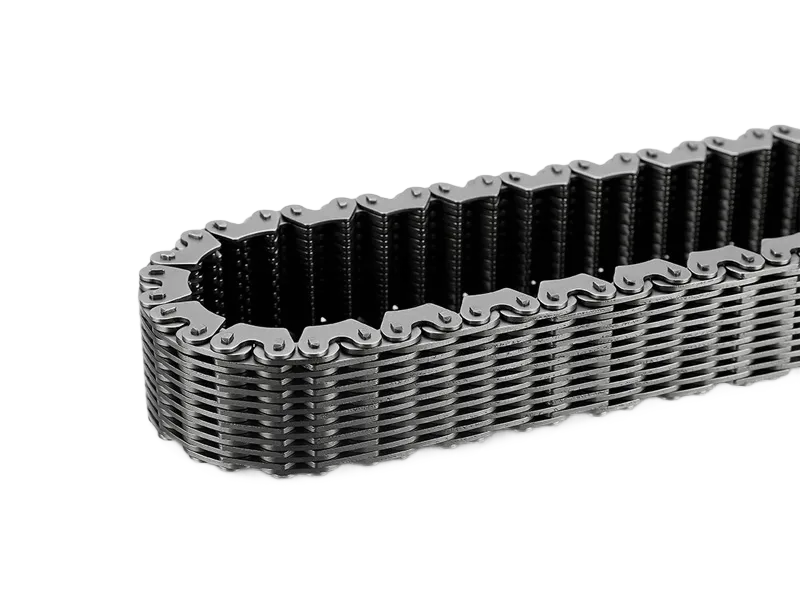

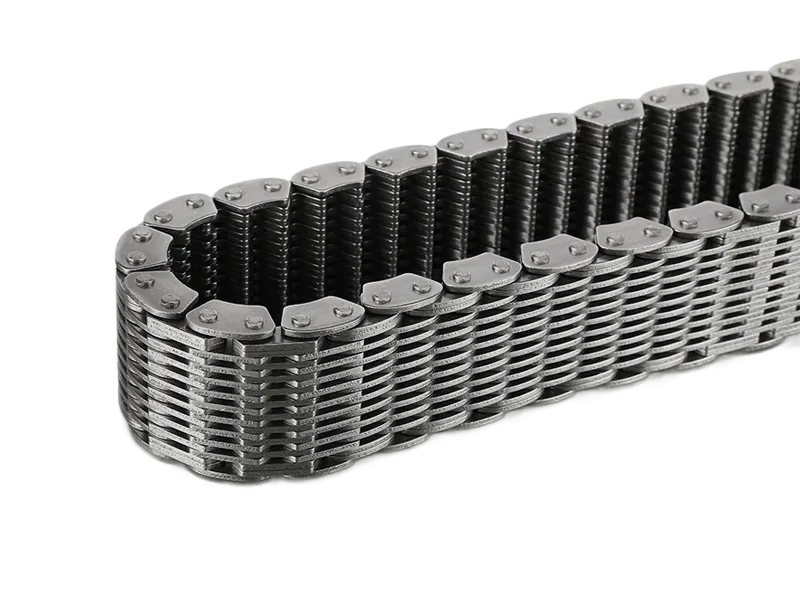

Round pin type silent chain is mainly used for transfer case and gearbox assembly drive system, which is the core component of the drive system. The chain is made from superior quality steel and the plates of which are austempered, which is especially suitable for various conditions such as high strength, high wear resistance, low noise and big torque etc.

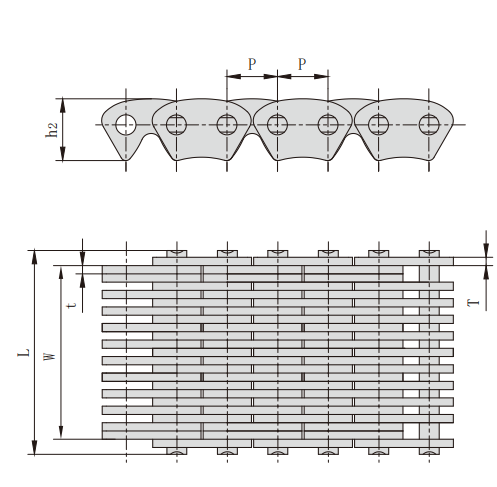

| Chain No. | Pitch | Chain width | Pin length | Plate depth | Plate thickness | Guide form | Number of plate | Tensile strength | Weight per meter | |
| P mm | b1 min mm | L max mm | h2 max mm | t max mm | T max mm | n | Q min kN/lbf | q kg/ m | ||
| CL06 | 9.525 | 17.00 | 22.7 | 11.57 | 1.54 | 1.55 | Outside | 13(6X7) | 37/8318 | 1.28 |
| CL06D | 9.525 9.525 | 32.80 42.50 | 38.20 38.20 | 11.57 11.57 | 1.55 1.55 | 1.55 1.55 | Outside Outside | 23(12X11) 29(14X15) | 73/16410 86/19333 | 2.23 2.90 |
| BC1252 | 12.780 12.780 | 29.60 30.50 | 35.10 36.00 | 15.50 15.50 | 1.54 1.54 | 1.54 1.54 | Outside Outside | 21(10X11) 21(11X10) | 80/17984 80/17984 | 2.66 2.76 |
| SC1252 | 12.780 12.780 12.780 | 31.20 37.50 43.90 | 36.70 43.20 49.70 | 15.50 15.50 15.50 | 1.54/1.76 1.54/1.76 1.54/1.76 | 1.54 1.54 1.54 | Outside Outside Outside | 21(11X10) 25(13X12) 29(15X14) | 80/17984 96/21581 112/25178 | 2.82 3.33 3.85 |
