How do I know if my rotary cutter gearbox needs replacing?

Key indicators that a rotary cutter gearbox needs replacement include: continuous oil leaks that persist after seal replacement, unusual grinding or rumbling noise during operation (indicating bearing or gear tooth damage), excessive shaft end-play or radial movement, overheating under normal loads, and visible housing cracks. Minor seal or bearing issues can be repaired, but internal gear damage or cracked housings typically require complete replacement.

Rotary Cutter Gearbox RDF-PK45.009

Raydafon RDF-PK45.009 rotary cutter gearbox is a direct replacement for AGROMET PK45.009 on rotary mowers, orchard mowers, verge cutters and mulchers. Input power 35 kW (48 HP), ratio 1:1.56, 540 RPM input, 618 Nm output torque, 35 kg net weight. Cast iron monolithic housing, taper spline output shaft (34x39 mm taper, 144 mm flange-to-shaft-end), tapered roller bearings and dual lip oil seals. OEM/ODM branding, sample orders and wholesale pricing available. Send ratio, PTO spline type and quantity for a quotation within 24 working hours.

Send Inquiry

Product Description

Rotary Cutter Gearbox RDF-PK45.009 — 35kW Right-Angle PTO Gearbox for Rotary Mowers & Mulchers

The RDF-PK45.009 Rotary Cutter Gearbox is a right-angle bevel gear drive that transfers power from a tractor PTO shaft to the cutting blades of rotary mowers, orchard mowers, verge cutters and mulchers. With 35 kW (48 HP) input power, a 1:1.56 ratio and 618 Nm output torque, it is engineered for medium-duty vegetation management where reliability and service life matter.

If you are sourcing a replacement gearbox for your rotary cutter or need a reliable OEM supply for implement manufacturing, this page gives you the complete specifications, fitment guidance, maintenance data and the exact information we need to quote you accurately.

35 kW / 48 HP Input Suits tractors up to 48 HP for medium-duty rotary cutting and mulching applications.

1:1.56 Ratio · 618 Nm 540 RPM input delivers 618 Nm output torque — ideal for maintaining blade tip speed under load.

Cast Iron Monolithic Housing Compact one-piece cast iron housing protects internals and maintains bearing alignment under load.

Direct PK45.009 Replacement Drop-in replacement for AGROMET PK45.009 with matched mounting flange and taper spline output.

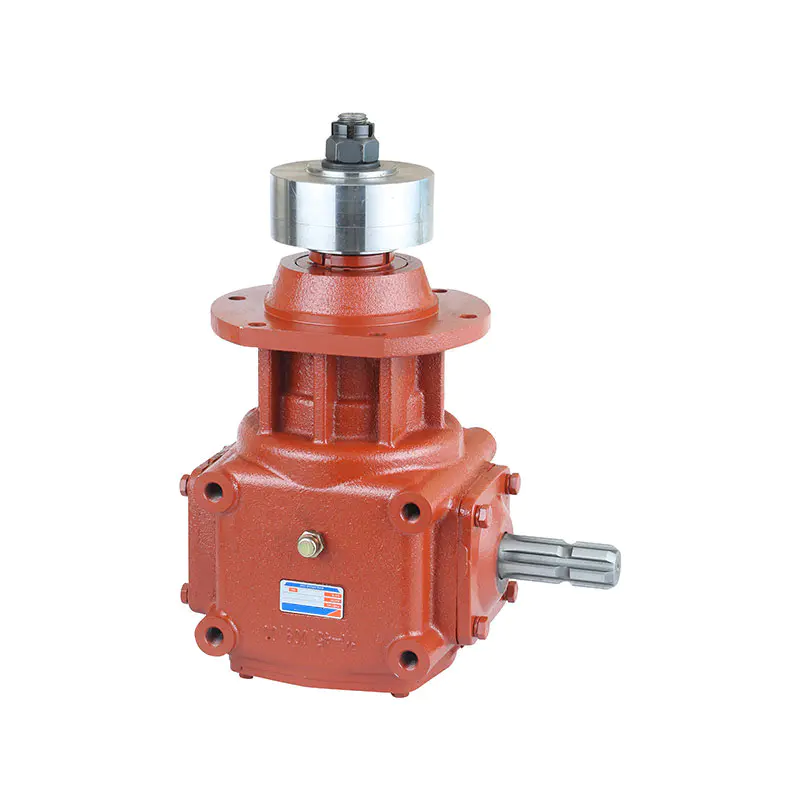

Rotary Cutter Gearbox RDF-PK45.009 Right-Angle Bevel Gear Drive

Rotary Cutter Gearbox RDF-PK45.009 Technical Drawing

Complete Technical Specifications

Parameter	Value
Model	RDF-PK45.009
Gear type	Right-angle bevel gear drive
Input power	35 kW (48 HP)
Ratio	1:1.56
Input speed	540 RPM
Output speed	346 RPM
Output torque	618 Nm
Net weight	35 kg
Housing	Compact monolithic cast iron
Bearings	Tapered roller bearings, both shafts
Seals	Dual lip oil seals, input and output
Lubrication	80W-90 GL-5 gear oil, fill to level plug
Compatible replacement	AGROMET PK45.009
Quality standard	ISO 9001

Output Shaft & Mounting Dimensions

The table below summarises the key mechanical interface dimensions. Verify these against your existing gearbox or mower drawing before ordering.

Interface	Dimension	Notes
Output shaft taper	34 x 39 mm	Taper spline, matches AGROMET PK45.009
Flange-to-shaft-end	144 mm	Confirmed against existing gearbox drawing
Input shaft	Standard tractor PTO spline	1-3/8" Z6 standard; custom spline available
Mounting flange	Matched to AGROMET PK45.009	Bolt pattern supplied on request
Oil fill / level / drain	3 plugs, accessible from housing side	Service without removing gearbox
Net weight	35 kg	Single-person handling

Full dimensional drawing is shown above. Send your existing gearbox drawing or measurements for a confirmed fitment check before ordering.

How the RDF-PK45.009 Rotary Cutter Gearbox Works

The RDF-PK45.009 receives rotational power from the tractor PTO shaft through the input shaft. Inside the cast iron housing, a set of bevel gears transfers the drive through 90 degrees to the output shaft. The 1:1.56 ratio reduces input speed and multiplies torque, delivering 618 Nm at the output. The taper splined output shaft mounts directly to the blade carrier, allowing the cutting blades to spin at the speed required for clean cutting.

Tapered roller bearings support both input and output shafts to handle the radial and axial loads generated by belt-driven or direct-coupled mower decks. Dual lip oil seals protect the bearings and gears from dust, grass debris and moisture ingress. The compact monolithic housing design keeps the gear mesh aligned under shock loads from stones and stumps — a common failure point on lighter gearboxes.

When to Replace Your Rotary Cutter Gearbox

Knowing when a gearbox can be repaired and when it must be replaced saves both time and money. The table below summarises the key indicators based on field service experience.

Symptom	Likely Cause	Action
Oil leak from output shaft	Worn oil seal	Repair — replace seal
Persistent leak after seal replacement	Shaft wear or scored seal surface	Replace gearbox
Grinding or rumbling noise	Bearing or gear tooth damage	Replace gearbox
Excessive shaft end-play	Worn bearings or snap ring failure	Replace gearbox
Housing crack or case split	Impact damage or fatigue	Replace gearbox
Overheating under normal load	Low oil, wrong viscosity or bearing failure	Inspect — repair or replace

Not sure if your gearbox needs replacement or repair?

Send Your Gearbox Details for Assessment

Where the RDF-PK45.009 Is Used

Rotary mowers & rotary cutters — medium-duty grass cutting and pasture maintenance on tractors up to 48 HP.
Orchard mowers — inter-row mowing and weed control under fruit trees, where a compact gearbox profile is required.
Verge cutters — roadside and municipal vegetation management on compact tractors.
Mulchers — light brush and vegetation mulching where a robust right-angle drive is essential.
OEM implement manufacturing — mower manufacturers requiring a repeatable, pre-engineered gearbox supply.
MRO replacement — replacing worn AGROMET PK45.009 gearboxes and compatible units on existing equipment.

Looking for other gearbox types? Browse the full Rotary Cutter Gearbox range or the complete agricultural machinery gearbox catalogue.

Field Applications & Replacement Cases

Orchard Mower Replacement — Spain

A citrus grower in Valencia replaced six worn AGROMET PK45.009 gearboxes on 1.5 m orchard mowers. The RDF-PK45.009 units were supplied with taper 34x39 mm output shafts matched to the existing blade carriers. After two full seasons, no oil leaks or bearing noise were reported. The customer now stocks RDF-PK45.009 as their standard replacement unit.

OEM Supply — Verge Cutter Manufacturer

A European verge cutter manufacturer switched from a European gearbox supplier to Raydafon RDF-PK45.009 for their 1.2 m and 1.5 m models. The gearboxes are supplied with custom mounting flange bolt patterns and the manufacturer's paint color, packed in branded cartons. Production volume is approximately 200 units per year.

If you would like to discuss a similar application or request a sample unit for fitment testing, send your machine details through the inquiry form below. We can also provide references on request for volume OEM projects.

Quality Control & Certifications

Every RDF-PK45.009 gearbox goes through incoming material inspection, gear machining and tooth contact pattern verification, bearing fit and end-play check, oil seal and leak testing, and a no-load running test before packing.

Raydafon operates an ISO 9001 quality management system. Gearbox housings are cast at qualified foundries with material certificates available on request. Gear cutting and heat treatment are carried out in-house, which allows us to control gear tooth accuracy, case depth and core hardness for every batch.

For fleet or OEM orders we can supply inspection reports and material certificates. Read how we manage process control and traceability on our Quality page, or see the full company profile for capacity and equipment.

Ordering & Supply Information

What to send for a fast quotation

Required ratio (standard 1:1.56 or custom)
PTO spline type and shaft dimensions
Mounting flange bolt pattern or drawing
Quantity, destination port, and whether OEM branding is needed

Supply terms

Sample and trial orders accepted for fitment verification
MOQ depends on stock status — confirm per order
Export packing: carton + pallet or wooden case
OEM logo and custom paint available for volume orders

Get Your RDF-PK45.009 Quote

Send your ratio, PTO spline type and quantity — our team confirms the correct configuration and returns the quotation within 24 working hours.

Request Price & Fitment Match Chat on WhatsApp

Installation & Maintenance Tips

Check oil level before commissioning. Fill with 80W-90 GL-5 gear oil or equivalent to the level plug.
Align the PTO shaft with the gearbox input shaft before connecting. Misalignment causes vibration and premature seal wear.
Torque the mounting flange bolts to the implement manufacturer's specification. Re-check after the first 10 hours of operation.
Inspect oil seals for weeping at each service interval. Replace seals early to prevent oil loss and bearing damage.
Check blade carrier balance when replacing the gearbox. An unbalanced carrier will damage the output bearing and seal.
Keep the breather plug clean and unobstructed to prevent pressure build-up inside the housing.
Change the gear oil after the first 50 hours, then every 500 hours or annually, whichever comes first.

FAQ — Rotary Cutter Gearbox RDF-PK45.009

What is the RDF-PK45.009 rotary cutter gearbox used for? The RDF-PK45.009 is a right-angle bevel gear drive used on rotary cutters, rotary mowers, orchard mowers, verge cutters and mulchers. It transfers tractor PTO power to the cutting blades at a 90-degree angle, reducing speed and increasing torque. With 35 kW input power and 618 Nm output torque, it suits medium-duty vegetation management on tractors up to 48 HP.

What are the key specifications? Input power 35 kW (48 HP), ratio 1:1.56, input speed 540 RPM, output speed 346 RPM, output torque 618 Nm, weight 35 kg. The output shaft is taper splined with a taper of 34x39 mm and a flange-to-shaft-end distance of 144 mm. The housing is compact monolithic cast iron. It is a direct replacement for the AGROMET PK45.009.

How do I know if my gearbox needs replacing? Key indicators include: continuous oil leaks that persist after seal replacement, unusual grinding or rumbling noise during operation, excessive shaft end-play or radial movement, overheating under normal loads, and visible housing cracks. Minor seal or bearing issues can be repaired, but internal gear damage or cracked housings typically require complete replacement.

What is the MOQ and lead time? Sample orders are accepted for fitment and quality verification. MOQ depends on whether the model is in stock or produced to order. Lead time is typically 7–15 days for samples and 25–35 days for mass production. Send your quantity and destination port for a quotation.

Can you customize the ratio or output shaft? Yes. We support OEM/ODM customization including custom gear ratios, input and output shaft configurations, mounting flange dimensions, paint color and branded packaging. Send your drawing or sample for engineering review.

Still Have Questions About the RDF-PK45.009?

Send your existing gearbox details, ratio and quantity — our engineers will confirm the correct model and price for your order.

Ask Our Engineer Send Inquiry Form
