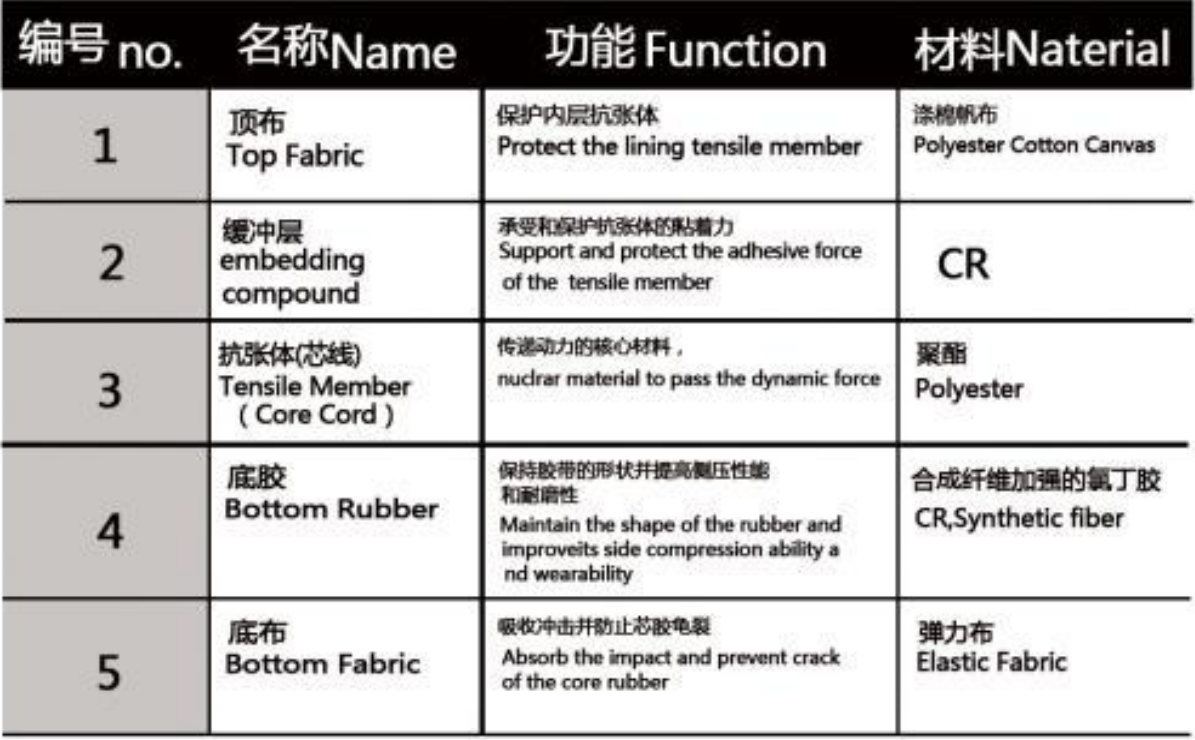

The top and the bottom are encased by the wrapper. Both sides are rubber .V belt of tooth shape groove isdesigned for the bottom to improve the flexural property
| 型号 Type | 顶宽(mm) Top width | 包边式 Wrapped Vbef | 普通切边带 Raw edge Vbelt | 高度Height(mm) 底胶夹布切边带 REF | 有齿切边式 REC | 楔角(°) Angle |
| AV-10/9.5 | 10 | 8 | 7.5 | 7.5 | 8 | 40 |
| AV-13/12.5 | 13 | 10 | 8.5 | 8.5 | 9 | 40 |
| AV-15 | 15 | 9 | - | - | - | 40 |
| AV-17 | 16.5 | 10.5 | 9.5 | 9.5 | 11 | 40 |
| AV-22 | 22 | 14 | - | - | 13 | 40 |
型号 Type | 上 宽 ( mm ) Top width | 带 高 ( m m ) Belt thickness | 角度(°) Angle |
| HM | 10.5 | 8 | 38 |
| AX | 13 | 8 | 38 |
| BX | 17 | 11 | 38 |
| CX | 22 | 14 | 38 |
| DX | 32 | 19 | 38 |
| EX | 38 | 23 | 38 |
| 型号 Type | 上 宽 ( m m ) | 带 高 ( m m ) | 角 度 ( ° ) |
| Top width | Belt thickness | Angle | |
| HM | 10.5 | 8 | 38 |
| AX | 13 | 8 | 38 |
| BX | 17 | 11 | 38 |
| CX | 22 | 14 | 38 |
| DX | 32 | 19 | 38 |
| EX | 38 | 23 | 38 |
