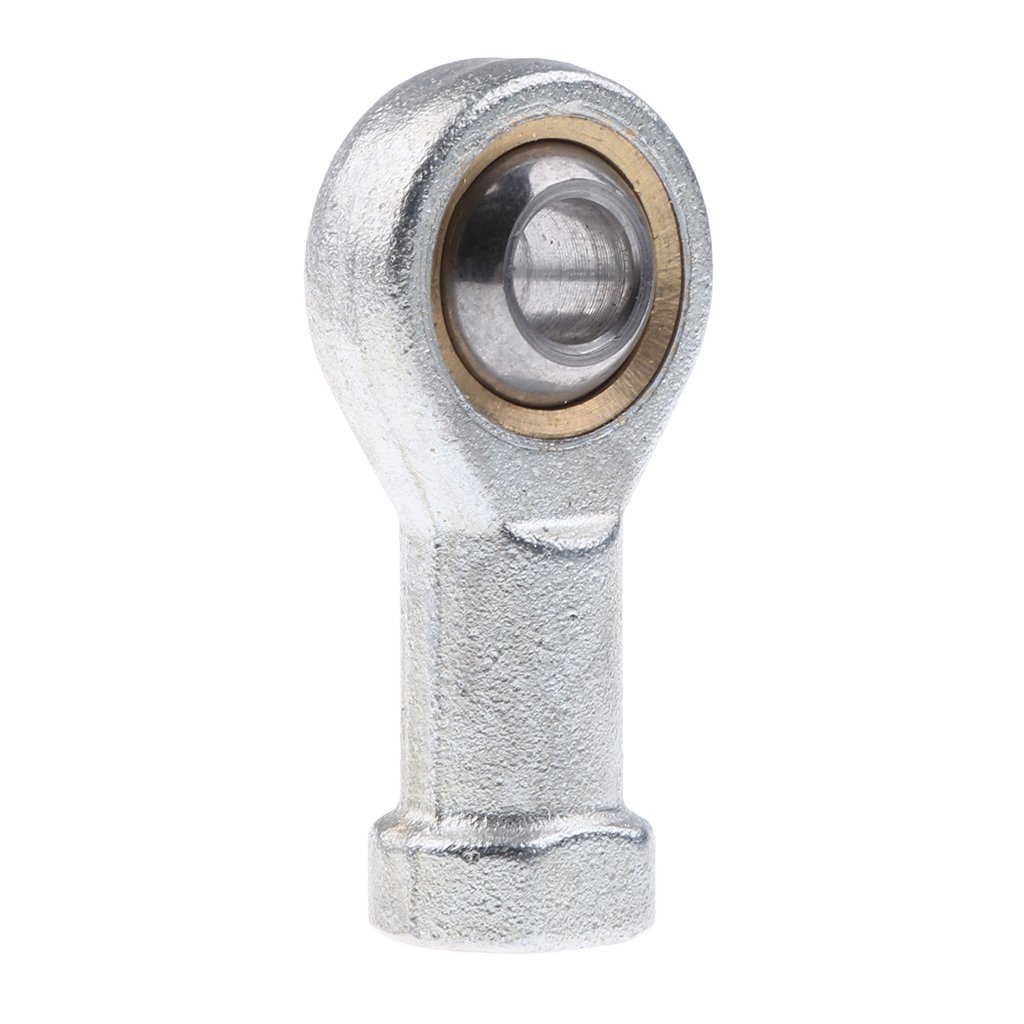

PHS Rod End

Raydafon Group's PHS Rod End offers superior durability and precision for automotive and industrial applications, ensuring smooth performance and reliability. Experience enhanced efficiency and confidence with this high-quality component designed for engineers and mechanics.

Send Inquiry

Product Description

PHS Rod End

PHS Rod End ROD END.pdf

Ol C HANGZHOU OCEAN INDUSTRY CO., LTD.

PHS Rod End

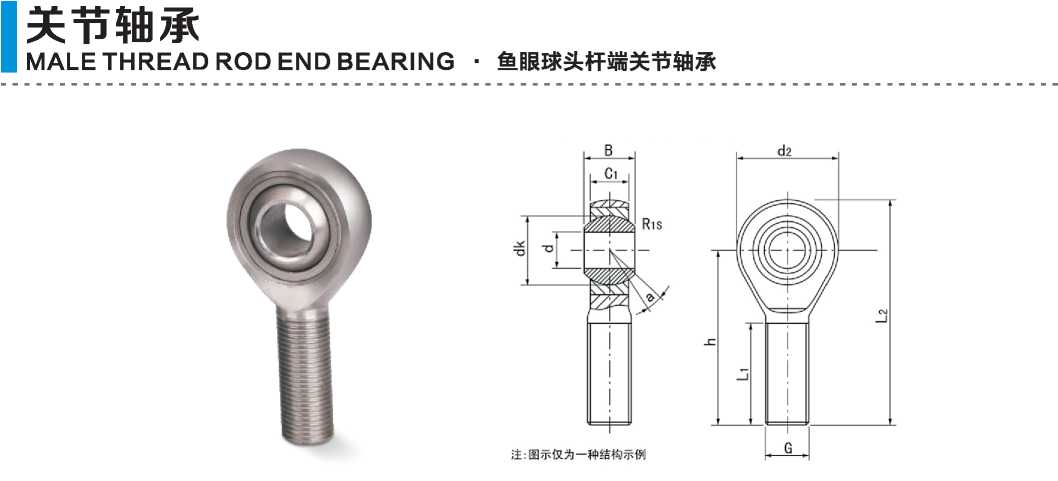

外螺纹杆端关节轴承包括一个孔状头，孔状头带有整体式杆端，构成了一个球面滑动轴承的杆端座。通常，外螺纹杆端关节轴承带有左旋（反牙）或右旋（正牙）螺纹。关节轴承具有载荷能力大，抗冲击，抗腐蚀、耐磨损、自调心、润滑好等特点。

型号 Bearing Number	尺寸 (Dimensions)											负荷KN Load ratings		重量kg Weight
型号 Bearing Number	d	B	dk	C1 max	d2 max	G 6H	h	Li minn	l_3 min	Ris min	a	动 dyn.c	静 stat.c	重量kg Weight
SA5T/K	5	8	11.112	6	18	M5	33	19	42	0.3	13	5.7	6.0	0.013
SA6T/K	6	9	12.7	6.75	20	M6	36	21	46	0.3	13	7.2	7.65	0.015
SA8T/K	8	12	15.88	9	24	M8	42	25	54	0.3	14	11.6	12.9	0.034
SA10T/K	10	14	19.05	10.5	28	M10	48	28	62	0.6	13	14.5	18.0	0.071
SA12T/K	12	16	22.23	12	32	M12	54	32	70	0.6	13	17	24	0.11
SA14T/K	14	19	25.4	13.5	36	M14	60	36	78	0.6	16	24	31	0.13
SA16T/K	16	21	28.58	15	42	M16	66	37	87	0.6	15	28.5	39	0.22
SA18T/K	18	23	31.75	16.5	44	M18x1.5	72	41	90	0.6	15	42.5	47.5	0.29
SA20T/K	20	25	34.93	18	50	M20x 1.5	78	45	103	0.6	14	42.5	57	0.36
SA22T/K	22	28	38.1	20	54	M22X1.5	84	48	111	0.6	15	57	68	0.49
SA25T/K	25	31	42.86	22	60	M24x2	94	55	124	0.6	15	68	85	0.65
SA28T/K	28	35	47.63	24	66	M27x2	103	62	136	0.6	15	86	107	0.87
SA30T/K	30	37	50.8	25	70	M30x2	110	66	145	0.6	17	88	114	1.1
SA35T/K	35	43	57.1	28	81	M36x2	140	85	180.5	0.6	16			1.64
SA40T/K	40	49	66.6	33	91	M42x2	150	90	195.5	1.0	17			2.4
SA50T/K	50	60	82.5	45	117	M48x2	185	105	243.5	1.0	12			4.8

Ol C HANGZHOU OCEAN INDUSTRY CO., LTD.

关节轴承

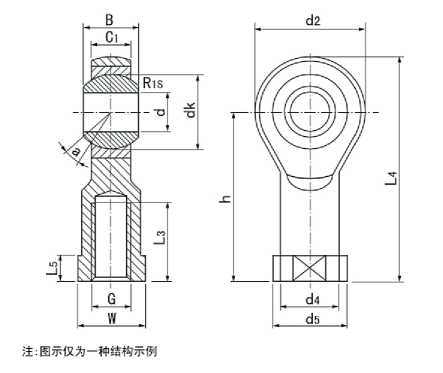

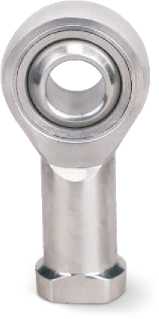

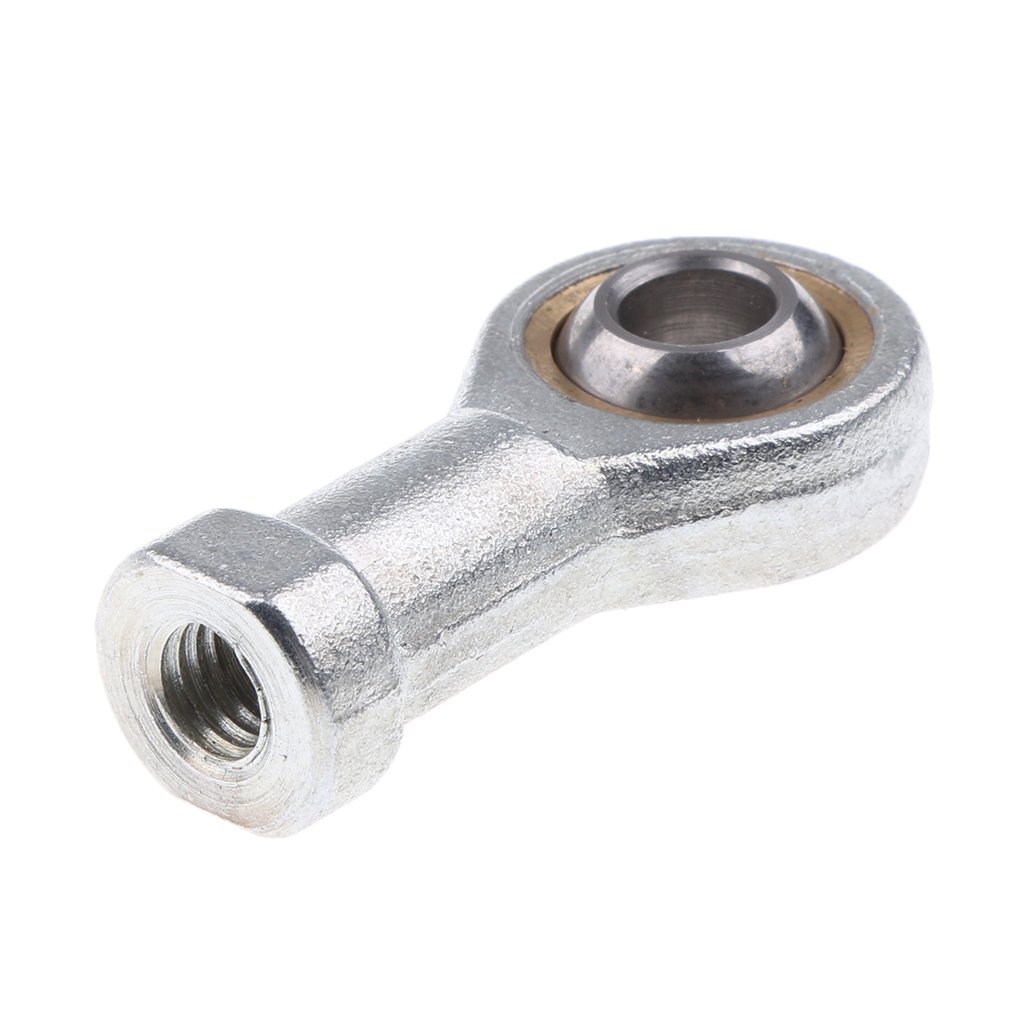

FEMALE THREAD ROD END BEARING -鱼眼杆端关节轴承

PHS Rod End

The rod end sleeve bearing includes a head with a one-piece rod end that forms the rod end of a spherical plain bearing. Typically, rod end bearings have a left or right female(female)or male (male). Joint bearing with load capacity, impact resistance, corrosion resistance, wear resistance self-aligning, lubrication and so on.

型号 Bearing Number	尺寸 (Dimensions)														负荷KN Load ratings		重量g Weight
型号 Bearing Number	d	d3 6H	B	Ci	W	hi	d2	L4	L5	d4	ds	dk	l_3 min	a	动 dyn.c	静 stat.c	重量g Weight
SI5T/K	5	M5x0.8	8	6	9	27	18	36	4	8.5	11	11.11	10	13	5.70	6.00	16
SI6T/K	6	M6x1.0	9	6.75	11	30	20	40	5	10	13	12.70	12	13	7.20	7.65	22
SI8T/K	8	M8x1.25	12	9	14	36	24	48	5	12.5	16	15.8753	16	14	11.6	12.9	47
SI10T/K	10	M10x1.5	14	10.5	17	43	28	57	6.5	15	19	19.05	20	13	14.5	18.0	77
SI10-1T/K	10	M10x1.25	14	10.5	17	43	28	57	6.5	15	19	19.05	20	13	14.5	18.0	77
SI12T/K	12	M12x1.75	16	12	19	50	32	66	6.5	17.5	22	22.225	22	13	17.0	24.0	100
SI12-1T/K	12	M12x1.25	16	12	19	50	32	66	6.5	17.5	22	22.225	22	13	17.0	24.0	100
SI14T/K	14	M14x2.0	19	13.5	22	57	36	75	8	20	25	25.40	25	16	24.0	31.0	160
SI14-1T/K	14	M4x1.5	19	13.5	22	57	36	75	8	20	25	25.40	25	16	24.0	31.0	160
SI16T/K	16	M16x2.0	21	15	24	64	40	84	8	22	27	28.575	28	15	28.5	39.0	220
SI16-1T/K	16	M16x1.5	21	15	24	64	40	84	8	22	27	28.575	28	15	28.5	39.0	220
SI18T/K	18	M18x1.5	23	16.5	27	71	44	93	10	25	31	31.75	32	15	42.5	47.5	320
SI20T/K	20	M20x1.5	25	18	30	77	50	102	10	27.5	34	34.925	33	14	42.5	57.0	420
SI22T/K	22	M22x1.5	28	20	32	84	54	111	12	30	38	38.10	37	15	57.0	68.0	540
SI25T/K	25	M24x2.0	31	22	36	94	60	124	12	33.5	42	42.85	42	15	68.0	85.0	720
SI28T/K	28	M27x2.0	35	24	41	103	66	136	14	37	46	47.60	51	15	86.0	107.0	820
SI30T/K	30	M30x2.0	37	25	41	110	70	145	15	40	50	50.80	51	17	88.0	114.0	1100
SI30-1T/K	30	M27X2.0	37	25	41	110	70	145	15	40	50	50.80	51	17	88.0	114.0	1100
SI35T/K	35	M36X2.0	43	28	50	125	81	165.5	17	46	58	57.10	56	16	101	206	1600
SI40T/K	40	M42x2.0	49	33	55	142	91	187.5	19	53	65	66.60	60	17	124	280	2400
SI50T/K	50	M48x2.0	60	45	65	160	117	218.5	23	65	75	82.50	65	12	308	485	5000
