GE Type Coupling

GE Type Couplings are highly flexible couplings widely used in various mechanical equipment and hydraulic systems.

Its main features include: GE Type Couplings can flexibly transmit torque without maintenance; The product is designed with a failure rate protection function to ensure that equipment will not be damaged in the event of a malfunction; Couplings have good vibration absorption capacity, which can reduce noise and wear caused by vibration. Easy to install, installation can be completed by axial insertion, and maintenance is also relatively convenient. Suitable for all types of mechanical and hydraulic equipment, capable of handling temperatures ranging from -40 to+100 degrees Celsius; This coupling can withstand a static torque of up to 270000 Nm and has multiple sizes and parameter options to meet different application requirements. There are shock absorbers that can effectively compensate for axial, radial, and angular deviations, improving the overall stability of the system.

In summary, GE Type Couplings are an ideal choice for industrial applications due to their outstanding performance and flexible design.

NSPT GE Couplings material AL图纸

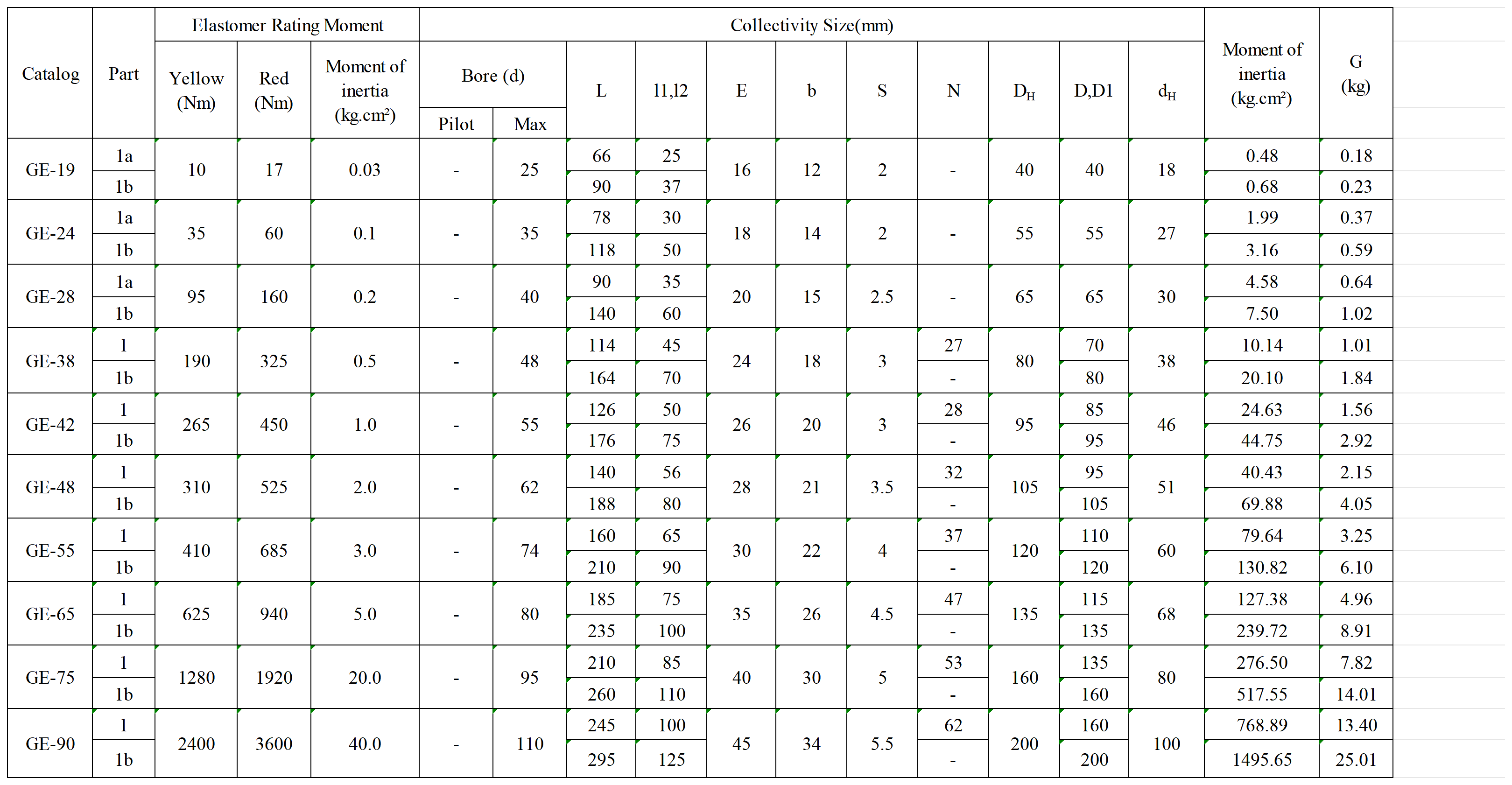

NSPT GE Couplings material AL

NSPT GE Couplings material GG25图纸

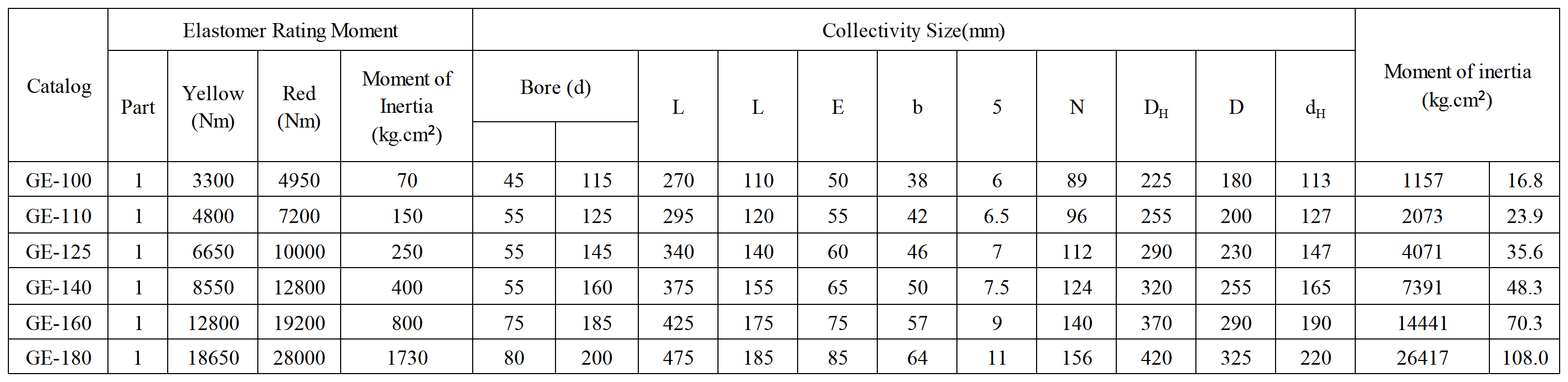

NSPT GE Couplings material GG25

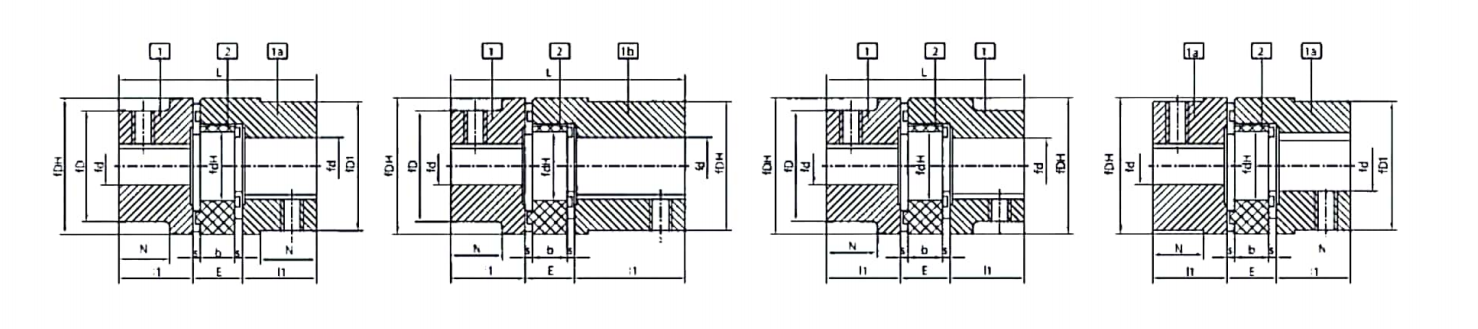

NSPT GE Couplings material GGG40图纸

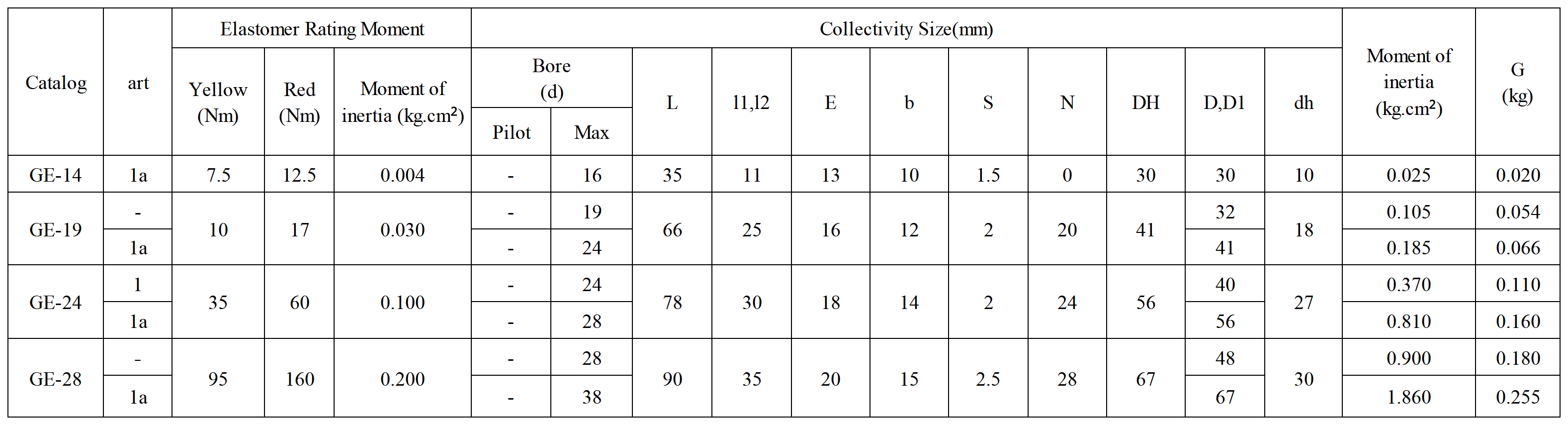

NSPT GE Couplings material GGG40

NSPT GE Couplings material Steel图纸

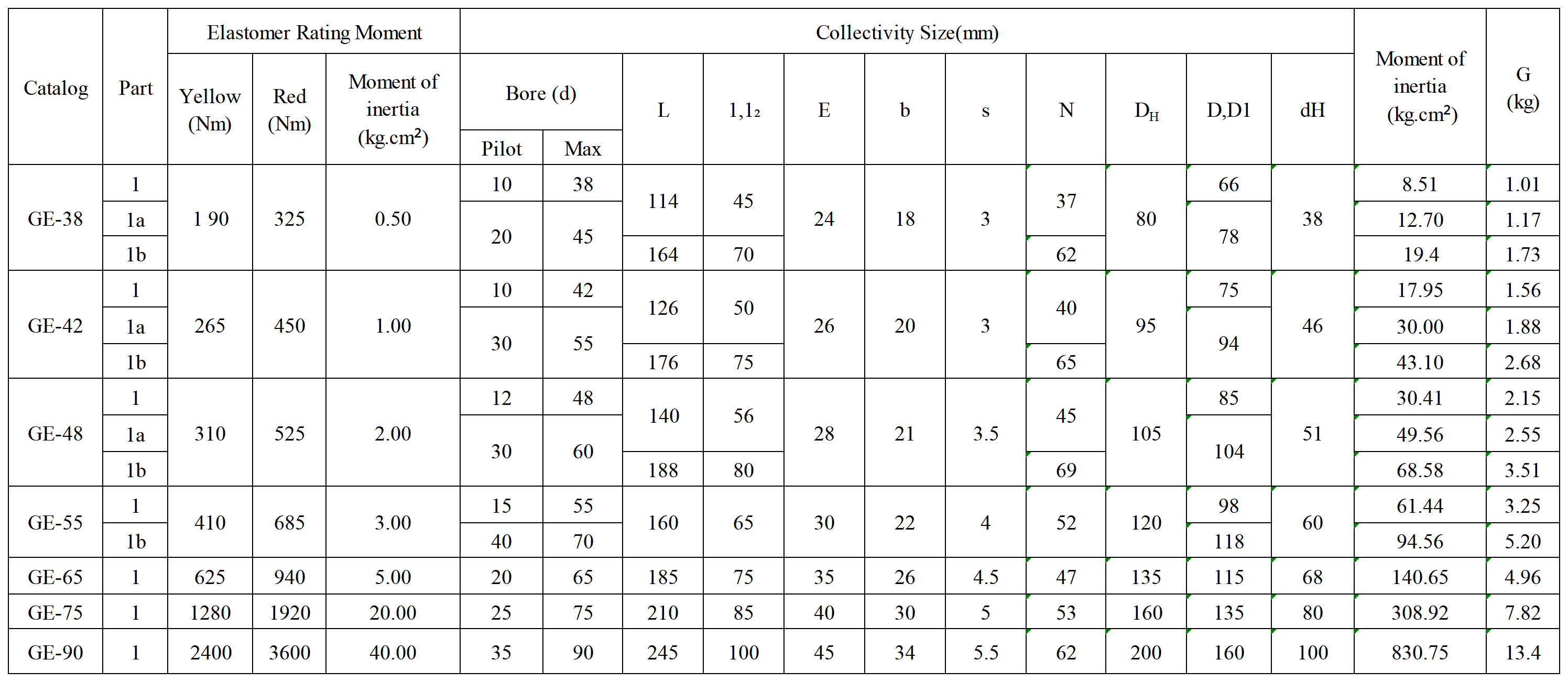

NSPT GE Couplings material Steel
