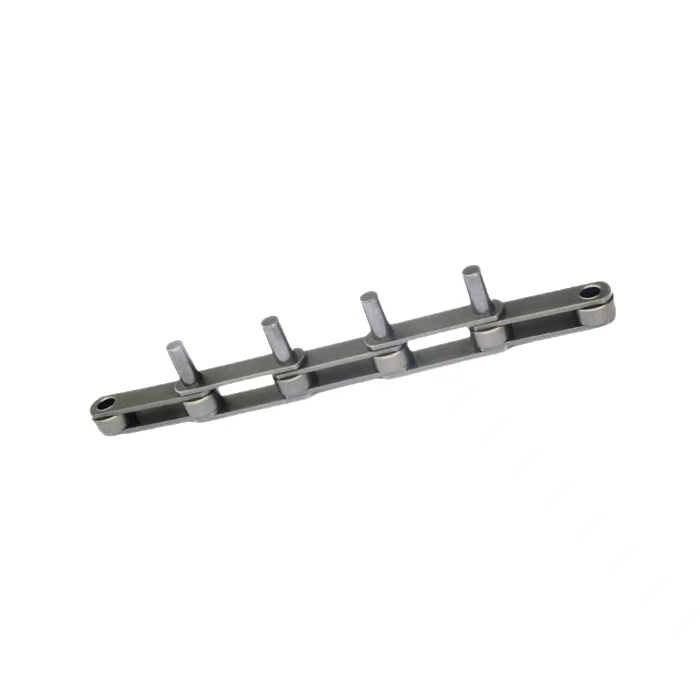

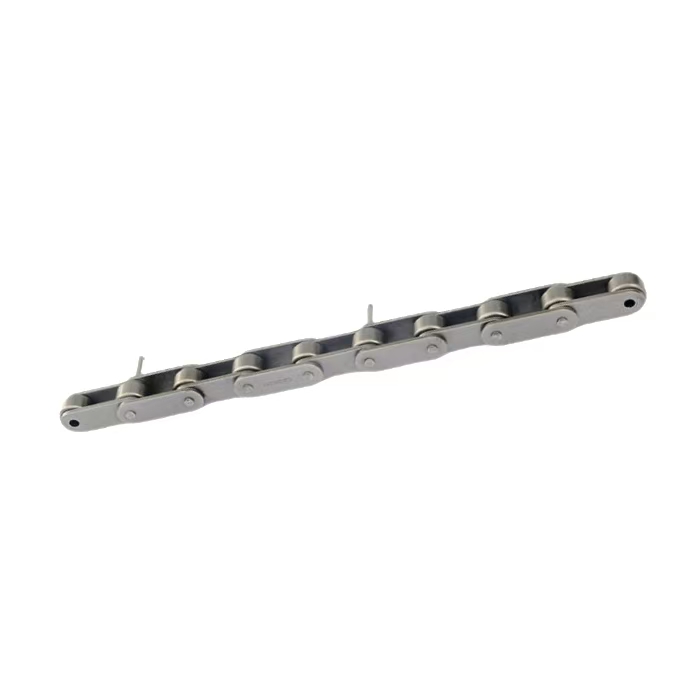

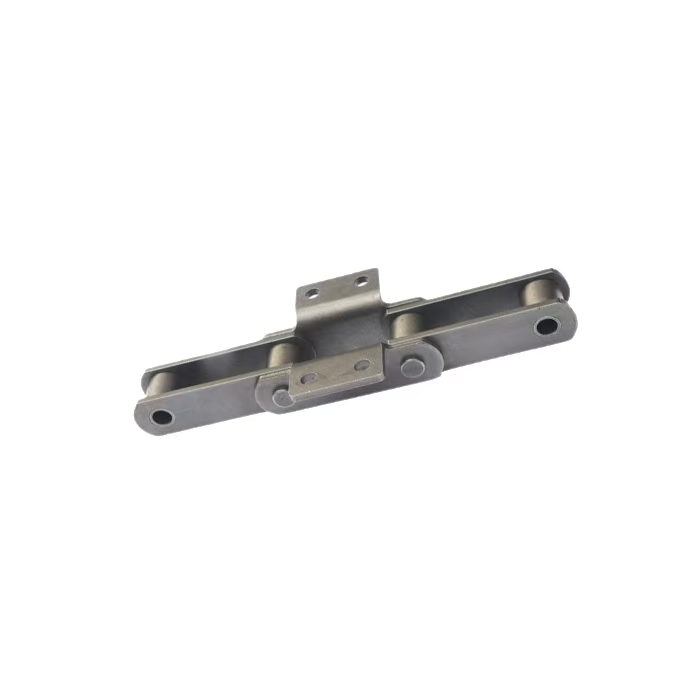

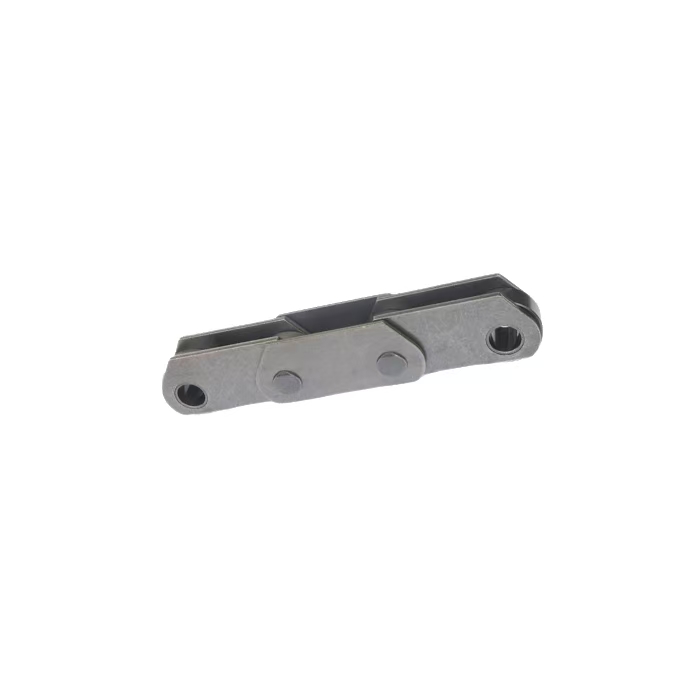

FV Series Conveyor Chains

Raydafon Group's FV Series Conveyor Chains deliver robust performance for industrial applications, featuring durable materials and innovative design to enhance efficiency and reliability, perfect for manufacturing and logistics professionals seeking superior quality and lasting solutions.
Send Inquiry
Product Description

FV series conveyor chains meet DIN standard, mainly including FV type conveyor chain, FVT type conveyor chain and FVC type hollow pin shaft conveyor chain

FV series conveyor chain refers to roller chain or sleeve chain whose chain pitch is metric integer (various pitches ranging from 40 mm to 500 mm). The rollers have various structural forms, and various accessories are configured according to the service conditions

FV type is solid pin transmission chain, FVC type is hollow pin transmission chain, FVT type is large roller heightening chain plate transmission chain, and FV type and FVT type chain have two kinds of products with tensile strength indexes for users to choose from.

Products are widely used in European markets, conveying materials for general conveying and mechanized conveying equipment.

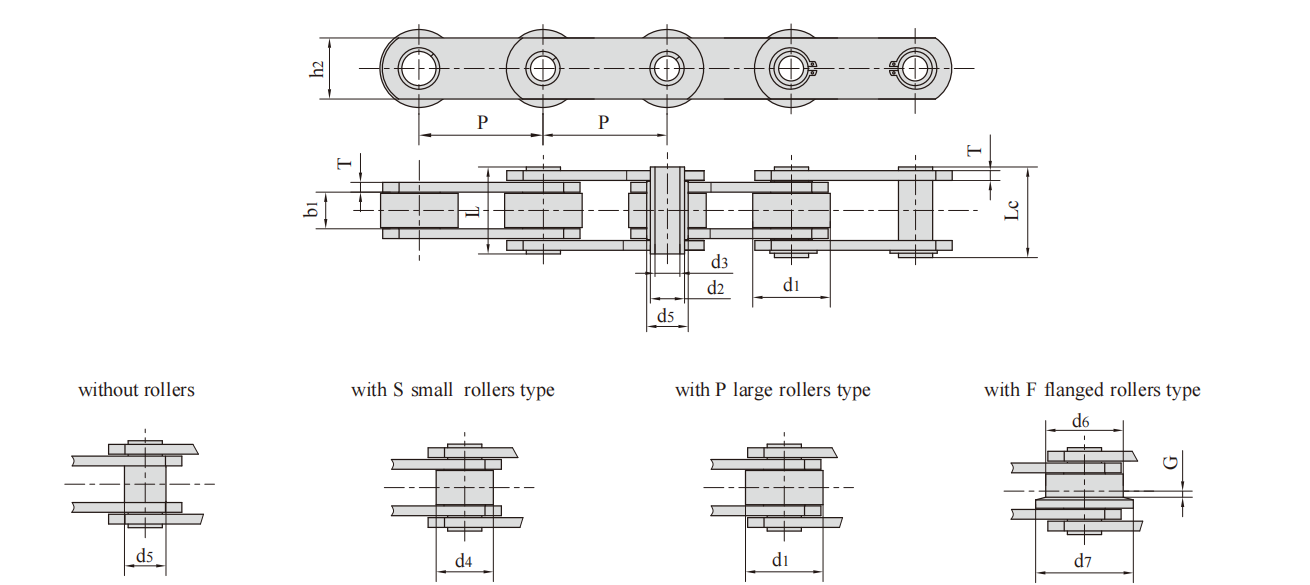

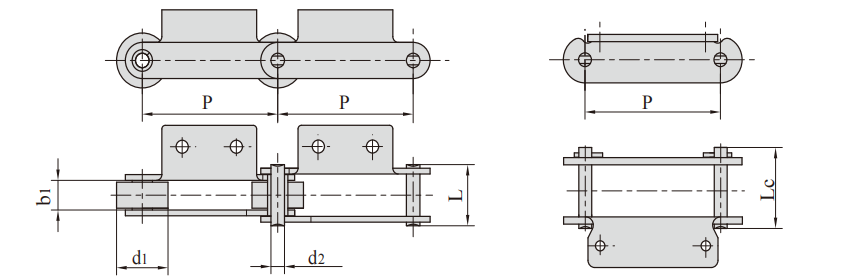

FVC series conveyor chain

FV Series Conveyor Chains

DIN
Chain No.		 Pitch Roller
dimension
P d1
max		 d4
max		 d6
max		 d7
max		 G
mm mm mm mm mm mm mm mm mm mm mm mm
FVC63 63.0  80.0  100.0  125.0  160.0  - - 40.0  26.0  50.0  63.0  5.0
FVC90 63.0  80.0  100.0  125.0  160.0  200.0  250.0  48.0  30.0  63.0  78.0  6.5
FVC112 100.0  125.0  160.0  200.0  250.0  - - 55.0  32.0  72.0  90.0  7.5
FVC140 100.0  125.0  160.0  200.0  250.0  - - 60.0  36.0  80.0  100.0  9.0
FVC180 125.0  160.0  200.0  250.0  315.0  - - 70.0  42.0  100.0  125.0  13.0
FVC250 160.0  200.0  250.0  315.0  400.0  - - 80.0  50.0  125.0  155.0  15.0
FVC315 160.0  200.0  250.0  315.0  400.0  - - 90.0  60.0  140.0  175.0  18.0
DIN
Chain No.		 Width
between
inner plates		 Pin
diameter		 Bush
diameter		 Pin
length		 Plate
thickness		 Plate
depth		 Tensile
strength
b1
min		 d2
max		 d3
min		 d5
max		 L
max		 Lc
max		 T
max		 h2
max		 Q
min
mm mm mm mm mm mm mm mm kN/lbf
FVC63 22.0  12.0  8.0  18.0  45.0  50.5  4.0  30.0  46.0/10454
FVC90 25.0  14.0  10.0  20.0  53.0  56.5  5.0  35.0  73.0/16590
FVC112 30.0  16.0  11.0  22.0  62.0  63.0  6.0  40.0  90.0/20454
FVC140 35.0  18.0  12.0  26.0  67.0  68.5  6.0  45.0  110.0/25000
FVC180 45.0  20.0  14.0  30.0  86.0  88.0  8.0  50.0  145.0/32954
FVC250 55.0  26.0  18.0  36.0  97.0  103.5  8.0  60.0  215.0/48863
FVC315 65.0  30.0  20.0  42.0  117.0  121.5  10.0  70.0  295.0/67044

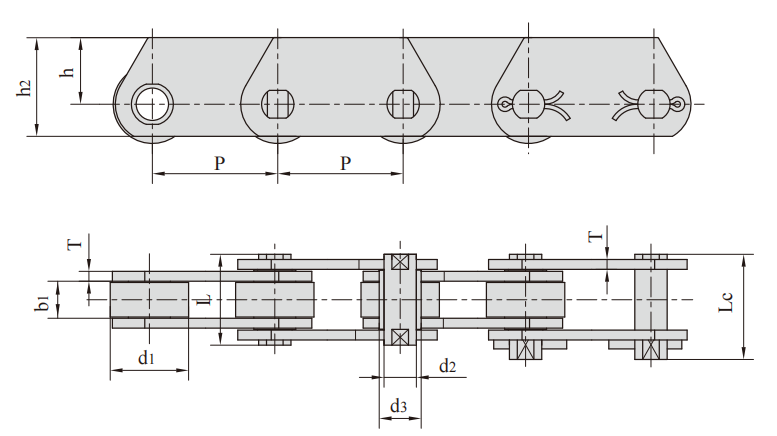

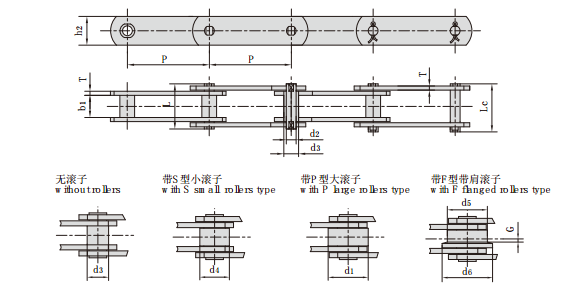

FVT series conveyor chain

FV Series Conveyor Chains

DIN
Chain No		 Pitch Roller
diameter		 Pin
diameter		 Bush
diameter		 Plate
thickness
P d1
max		 d2
max		 d3
max		 T
max
mm mm mm mm mm
FVT40 40.0 50.0 63.0  80.0 100.0 125.0 - 32.0 10.0 15.0 3.0
FVT63 63.0 80.0 100.0  125.0 160.0 - - 40.0 12.0 18.0 4.0
FVT90 63.0 80.0 100.0 125.0 160.0 200.0 250.0 48.0 14.0 20.0 5.0
FVT112 100.0 125.0 160.0 200.0 250.0 - - 55.0 16.0 22.0 6.0
FVT140 100.0 125.0 160.0 200.0 250.0 - - 60.0 18.0 25.0 6.0
FVT180 125.0 160.0 200.0 250.0 315.0 - - 70.0 20.0 30.0 8.0
FVT250 160.0 200.0 250.0 315.0 - - - 80.0 26.0 36.0 8.0
FVT315 160.0 200.0 250.0 315.0 400.0 - - 90.0 30.0 42.0 10.0
DIN
Chain No		 Width
between
inner plates		 Pin
length		 Plate
depth		 Tensile
strength
b1
min		 L
max		 Lc
max		 h2
max		 h
max		 Q
min		 *Q
min
mm mm mm mm mm kN/lbf kN/lbf
FVT40 18.0 36.0 39.0 35.0 22.5 40.0/9091 47.0/10681
FVT63 22.0 45.0 48.5 40.0 25.0 63.0/14317 75.0/17045
FVT90 25.0 53.0 56.5 45.0 27.5 90.0/20453 115.0/26136
FVT112 30.0 62.0 66.0 50.0 30.0 112.0/25452 170.0/38636
FVT140 35.0 67.0 71.5 60.0 37.5 140.0/31815 180.0/40908
FVT180 45.0 86.0 92.0 70.0 45.0 180.0/40908 250.0/56817
FVT250 55.0 97.0 103.5 80.0 50.0 250.0/56817 300.0/68181
FVT315 65.0 113.0 126.5 90.0 55.0 315.0/71591 480.0/109089
*Q denotes the tensile strength after hardened

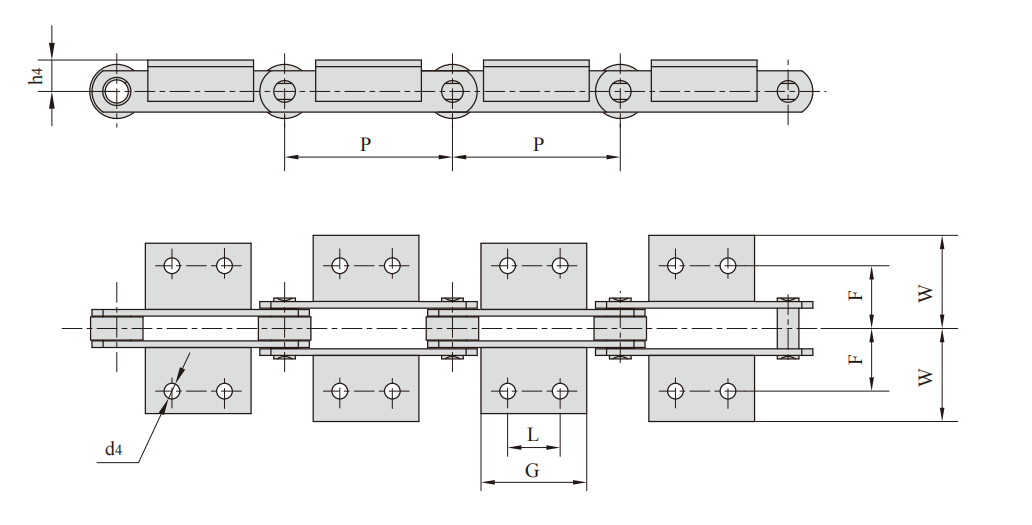

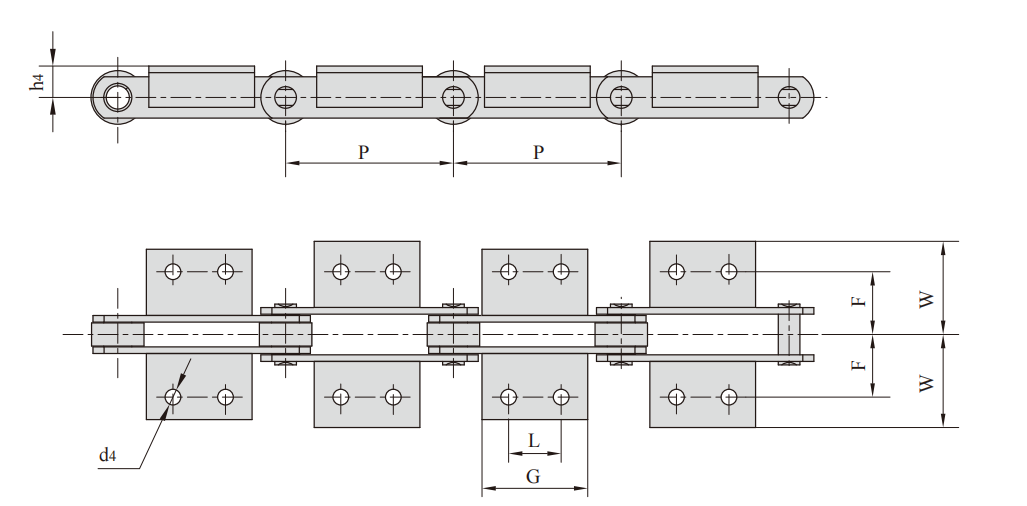

FV series conveyor chain

FV Series Conveyor Chains

DIN
Chain No.		 P L G d4 F W h4
mm mm mm mm mm mm mm
FV40 50.0
63.0
80.0
100.0
125.0		 △
△
25.0
30.0
30.0		 45.0
31.0
45.0
50.0
60.0		 6.5 25.0 40.5 20.0
FV63 63.0
80.0
100.0
125.0
160.0		 △
25.0
30.0
40.0
50.0		 40.0
45.0
50.0
60.0
70.0		 8.4 34.0 50.0 30.0
FV90 63.0
80.0
100.0
125.0
160.0
200.0
250.0		 △
25.0
30.0
40.0
50.0
60.0
65.0		 30.0
45.0
50.0
60.0
70.0
80.0
85.0		 8.4 40.0 64.0 35.0
FV112 100.0
125.0
160.0
200.0
250.0		 30.0
40.0
50.0
65.0
80.0		 50.0
65.0
75.0
90.0
105.0		 11.0 50.0 70.0 40.0
△Attachments with one hole

FV Series Conveyor Chains

DIN
Chain No.		 P L G d4 F W h4
mm mm mm mm mm mm mm
FV140 100.0
125.0
160.0
200.0
250.0		 30.0
40.0
50.0
65.0
80.0		 55.0
65.0
75.0
90.0
105.0		 11.0  50.0  81.0  45.0
FV180 125.0
160.0
200.0
250.0
315.0		 35.0
50.0
65.0
80.0
100.0		 63.0
80.0
95.0
110.0
130.0		 13.0  64.0  91.0  45.0
FV250 160.0
200.0
250.0
315.0
400.0		 50.0
65.0
80.0
100.0
100.0		 80.0
95.0
110.0
130.0
130.0		 14.0  69.0  106.0  55.0
FV315 160.0
200.0
250.0
315.0
400.0		 △
65.0
80.0
100.0
100.0		 50.0
95.0
110.0
130.0
130.0		 14.0  85.0  130.0  60.0
△Attachments with 1 hole

FV Series Conveyor Chains

Chain No. Pitch Roller
diameter		 Width
between
inner plates		 Pin
diameter		 Pin
length		 Tensile
strength		 Average
tensile
strength		 Weight
per
meter
P d1
max		 b1
min		 d2
max		 L
max		 Lc
max		 Q
min		 Q0 q
mm mm mm mm mm mm kN/lbf kN kg/m
FV40A2.02-P-40 40.00  32.00  18.00  10.00  36.0  40.0  40.0/8992 44.0  4.98
FV63A2F4-S-100 100.00  26.00  22.00  12.00  46.0  50.0  63.0/14172 69.3  3.95
FV90A2F1-P-85 85.00  50.00  25.00  14.00  52.0  56.5  90.0/20250 100.0  10.15
FV90A2F1-P-100 100.00  50.00  25.00  14.00  52.0  56.5  90.0/20250 100.0  8.74
FV112F1A1-P-100 100.00  55.00  30.00  16.00  71.0  76.5  180.0/40492 200.0  14.30
FV112F1A1-P-80 80.00  55.00  30.00  16.00  71.0  76.5  180.0/40492 200.0  16.60
FV112F14A2-P-125 125.00  55.00  30.00  16.00  63.0  67.5  112.0/25454 123.2  10.00
FV180F21A2-P-160 160.00  80.00  45.00  20.00  - 90.0  180.0/40492 200.0  20.40
FV250K2F8-P-250 250.00  80.00  55.00  26.00  - 107.5  250.0/56817 275.0  22.60

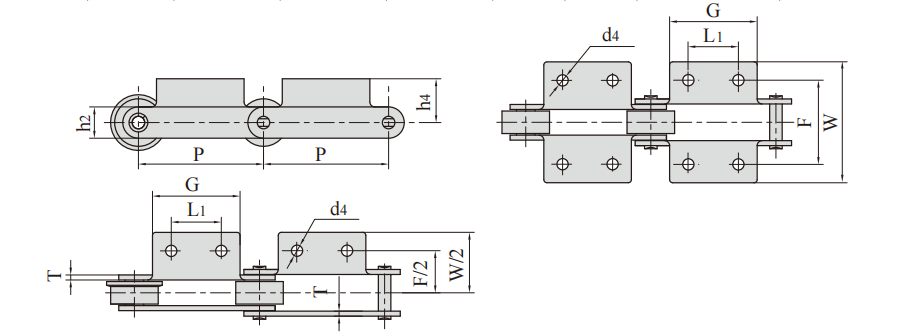

FV Series Conveyor Chains

Chain No. P L1 G F W h₄ h2 d4 T
mm mm mm mm mm mm mm mm mm
 FV40A2.02-P-40 40.00  17.00  30.00  60.0  90.0  20.0  25.0  6.4  3.00
  FV63A2F4-S-100 100.00  30.00  50.00  86.0  106.0  20.0  30.0  10.0  4.00
 FV90A2F1-P-85 85.00  40.00  60.00  80.0  109.2  40.0  35.0  9.5  5.00
  FV90A2F1-P-100 100.00  40.00  60.00  80.0  109.2  40.0  35.0  9.5  5.00
 FV112F1A1-P-100 100.00  △ 50.00  120.0  164.0  50.0  40.0  15.0  8.00
 FV112F1A1-P-80 80.00  △ 50.00  120.0  164.0  50.0  40.0  15.0  8.00
 FV112F14A2-P-125 125.00  40.00  65.00  100.0  130.0  40.0  40.0  11.0  6.00
 FV180F21A2-P-160 160.00  50.00  80.00  140.0  180.0  40.0  50.0  14.0  8.00
 FV250K2F8-P-250 250.00  80.00  120.00  140.0  191.0  50.0  60.0  14.0  8.00
△Attachments with 1 hole

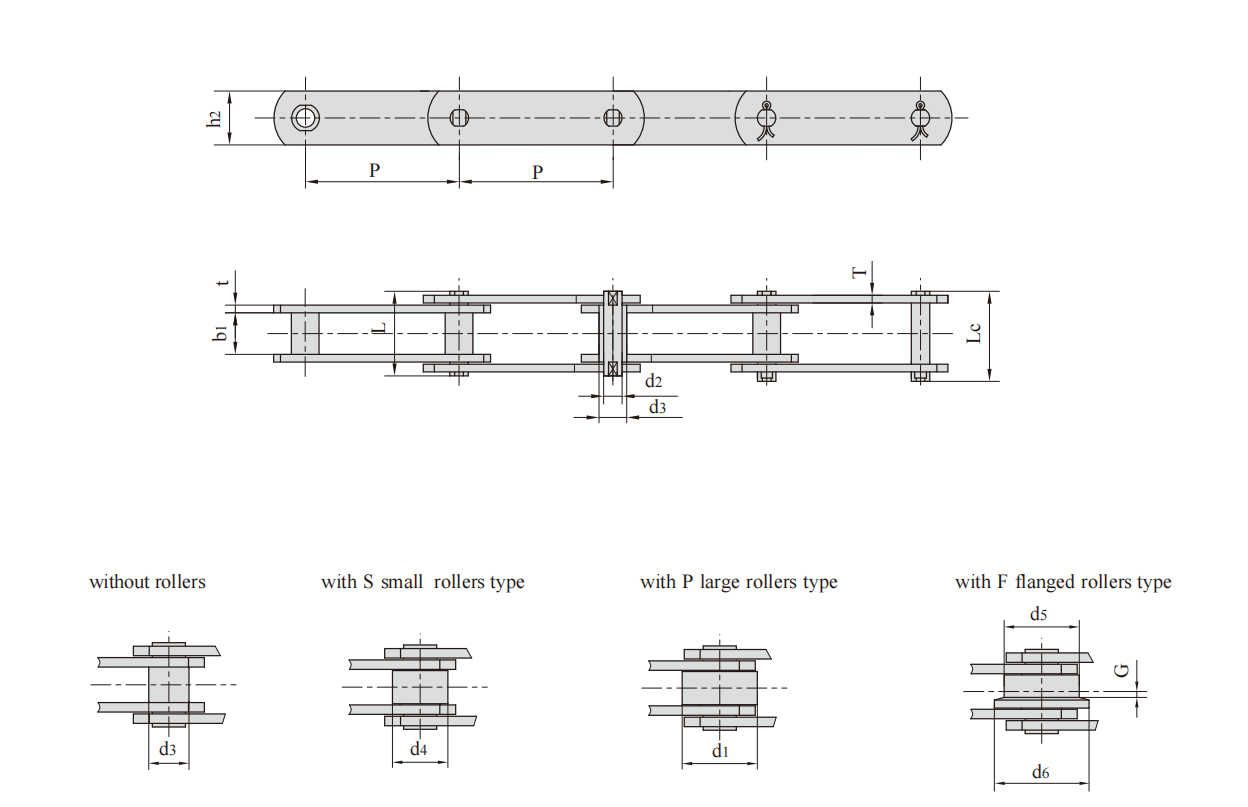

FV Series Conveyor Chains

DIN
Chain No		 Pitch Roller
dimesion		 Bush
diameter
P d1
max		 d4
max		 d5
max		 d6
max		 G d3
max
mm mm mm mm mm mm mm mm mm mm mm mm mm
FV40 50.0 63.0 80.0 100.0 125.0 - - 32.0 20.0 40.0 50.0 4.0 15.0
FV63 50.0 63.0 80.0 100.0 125.0 160.0 - 40.0 26.0 50.0 63.0 5.0 18.0
FV90 63.0 80.0 100.0 125.0 160.0 200.0 250.0 48.0 30.0 63.0 78.0 6.5 20.0
FV112 80.0 100.0 125.0 160.0 200.0 250.0 - 55.0 32.0 72.0 90.0 7.5 22.0
FV140 63.0 100.0 125.0 160.0 200.0 250.0 - 60.0 36.0 80.0 100.0 9.0 26.0
FV180 100.0 125.0 160.0 200.0 250.0 315.0 - 70.0 42.0 100.0 125.0 13.0 30.0
FV250 125.0 160.0 200.0 250.0 315.0 400.0 - 80.0 50.0 125.0 155.0 15.0 36.0
FV315 160.0 200.0 250.0 315.0 400.0 - - 90.0 60.0 140.0 175.0 18.0 42.0
DIN
Chain No		 Width
between
inner plates		 pin
diameter		 Pin
length		 Plate
depth		 Plate
thickness		 Tensile
strength
b1
min		 d2
max		 L
min		 Lc
max		 h2
max		 T
max		 Q
min		 *Q
min
mm mm mm mm mm mm kN/lbf kN/lbf
FV40 18.0 10.0 36.0 39.0 25.0 3.0 40.0/9091 47.0/10681
FV63 22.0 12.0 45.0 48.5 30.0 4.0 63.0/14317 75.0/17045
FV90 25.0 14.0 53.0 56.5 35.0 5.0 90.0/20453 115.0/26136
FV112 30.0 16.0 62.0 66.0 40.0 6.0 112.0/25452 170.0/38636
FV140 35.0 18.0 67.0 71.5 45.0 6.0 140.0/31815 180.0/40908
FV180 45.0 20.0 86.0 92.0 50.0 8.0 180.0/40908 250.0/56817
FV250 55.0 26.0 97.0 103.5 60.0 8.0 250.0/56817 300.0/68181
FV315 65.0 30.0 113.0 126.5 70.0 10.0 315.0/71591 480.0/109089
*Q denotes the tensile strength after hardened

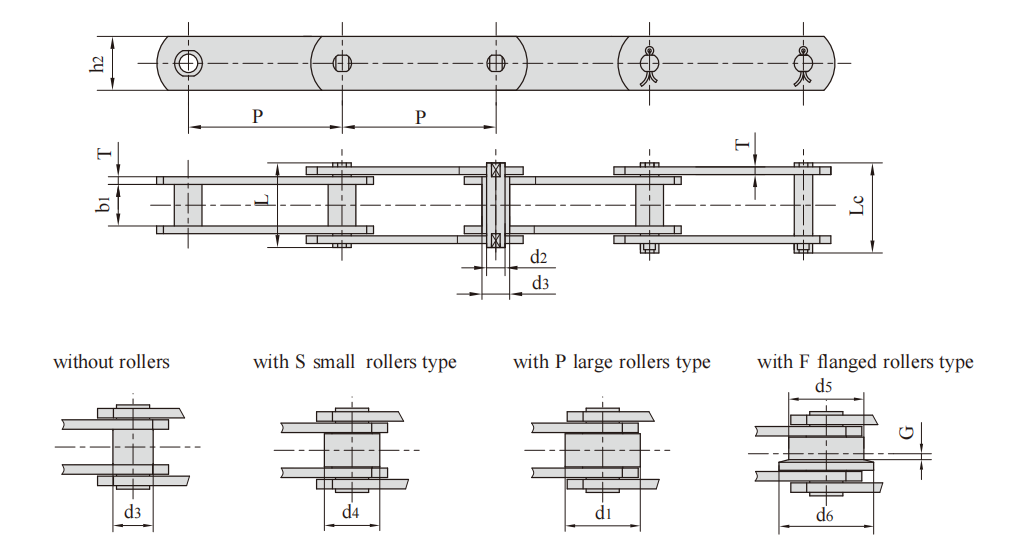

FV Series Conveyor Chains

Chain No. Pitch Roller
diameter		 Pin
diameter		 Pin
length		 Plate
depth		 Plate
thickness		 Tensile
strength		 Weight

per
meter
P d1
max		 d3
max		 d4
max		 d5
max		 d6
max		 G d2
max		 L
max		 Lc
max		 h2
max		 t/T
max		 Q
min		 q
mm mm mm mm mm mm mm mm mm mm mm mm kN/lbf kg/m
FV40F3-P-63 63.0  32.0  - - - - - 10.0  38.1  41.5  45.0  4.0  80.0/17985 2.13
FV63F11-P-100 100.0  40.0  - - - - - 14.0  37.0  - 30.0  4.0  60.0/13488 3.89
FV63F12-P-125 125.0  40.0  - - - - - 10.0  44.5  48.0  30.0  4.0  63.0/14162 3.84
FV90-B-50 50.0  - 20.0  -
- - 14.0  52.0  56.4  35.0  5.0  90.0/20453 6.10
FV90F9-B-100 100.0  - 20.0  -
- - 14.0  60.2  64.6  35.0  6.0/8.0 90.0/20453 6.00
FV90F10-B-100 100.0  - 20.0  -
- - 14.0  60.2  64.6  40.0  6.0/8.0 90.0/20453 6.83
FV112-S-63 63.0  - - 32.0
- - 16.0  63.0  67.5  40.0  6.0  112.0/25454 8.80
FV140-B-80 80.0  - 26.0

- - 18.0  67.0  72.5  45.0  6.0  140.0/31473 8.55
FV140-PF1-125 125.0  65.0  - - - - - 18.0  67.0  71.5  45.0  6.0  140.0/31473 12.76
FV140F27-F-125 125.0  - - - 80.0  93.5  9.5  18.0  68.4  73.0  45.0  6.4  140.0/31473 17.00
FV180-B-150 150.0  - 30.0  - - - - 20.0  85.5  92.0  50.0  8.0  180.0/40492 8.24


Hot Tags: Conveyor chains,FV series chains,chain
Related Category
Send Inquiry
Contact Info
Related Products
Free Flow Conveyor Chains with Large Rollers
Free Flow Conveyor Chains with Large Rollers View More >>
Double Pitch Conveyor Chain Attachments2
Double Pitch Conveyor Chain Attachments2 View More >>
Double Pitch Conveyor Chain Attachments1
Double Pitch Conveyor Chain Attachments1 View More >>
Conveyor chains with special extended pins
Conveyor chains with special extended pins View More >>
Conveyor chains with extended pins (M series)
Conveyor chains with extended pins (M series) View More >>
Conveyor Chains (MT Series)
Conveyor Chains (MT Series) View More >>
News Recommendations
Mowers reshape outdoor gardens with cutting-edge technology and global strategy
Mowers reshape outdoor gardens with cutting-edge technology and global strategyView More >>
Expert Insights on Upgrading Your Post Hole Digger Gearbox RDF-01-725
Expert Insights on Upgrading Your Post Hole Digger Gearbox RDF-01-725View More >>
Does Post Hole Digger Gearbox RDF-01-724 require assembly upon delivery?
Does Post Hole Digger Gearbox RDF-01-724 require assembly upon delivery?View More >>
What is the function of a gearbox gear?
What is the function of a gearbox gear?View More >>
Intelligent robot cleans the road surface, AI lighting automatically adjusts brightness
Intelligent robot cleans the road surface, AI lighting automatically adjusts brightnessView More >>
What are the common signs of a failing Other Gearbox?
What are the common signs of a failing Other Gearbox?View More >>

About Us

Products

News

Contact Us

Copyright © Raydafon Technology Group Co.,Limited All Rights Reserved.

X
We use cookies to offer you a better browsing experience, analyze site traffic and personalize content. By using this site, you agree to our use of cookies. Privacy Policy
Reject Accept
