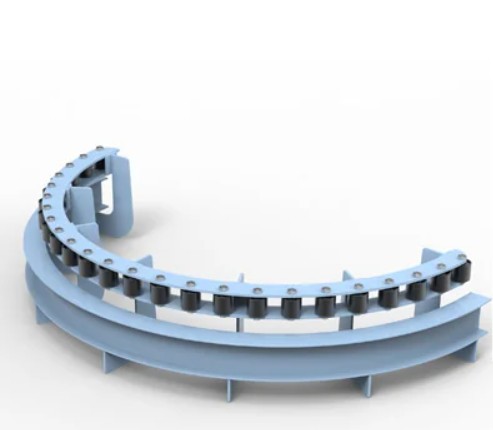

Roller Row Return Idler Horizontal Curve

Roller row return idler horizontal curve

Product description

The roller row slewing device is generally used in horizontal turns where the horizontal steering angle is less than 90° or the turning radius is large.

Product Specification

Performance characteristics:

Load-carrying Capacity: They use tapered roller bearings designed for combined axial and radial loads, with contact angles optimized for specific applications.

Performance Grades: Available in various grades to meet different operational demands, including precision grades for specialized uses.

Friction and Life: Some models are designed for low friction and extended life, such as Energy Efficient bearings, which offer less friction than standard types.

Stability and Reliability: Built with precision and durable materials to ensure consistent operation and a long service life.

Application

Mining Conveyors: Roller row rotation devices in mining can monitor conveyor belt temperatures with fiber optic sensors to prevent fires and detect early faults through sound-based diagnostics.

Automated Warehouses: These devices on conveyor lines in automated warehouses move products, reducing manual labor and increasing efficiency in warehouse operations.

Airport Baggage Handling: Roller row rotation devices are used extensively in airports for check-in conveyors, baggage handling, and loading, with systems tailored to the type of luggage or package.

Production Lines: On assembly lines, roller row rotation devices facilitate product movement and assembly, often integrated into robotic functions.

How does it work

Drive Mechanism: Powered by an electric motor, the roller row rotation device receives power through a transmission system like gears or belts.

Roller Rotation: The rollers spin, moving the conveyed material forward along the conveyor line.

Direction Control: The device can change the direction of the material, allowing it to branch off or turn as needed.

Speed Regulation: Some systems include speed controls to adjust the conveyor line's pace for various processing requirements.

Controlled Start/Stop: The operation can be started or halted by operators as required.

Maintenance: Regular maintenance ensures the device runs smoothly and efficiently.

Structural parameter

ad-carrying Capacity: The capacity depends on roller size, number, and material, determining the maximum axial and radial loads the device can bear.

Roller Diameter and Quantity: Larger rollers handle more load, and the quantity affects the contact area and friction, impacting smooth operation.

Roller Spacing: The distance between rollers (d) is crucial for stable material conveyance and device passage, with recommended spacing for different belt widths (B).

Turning Radius: The device works with various turning radii; special designs may be needed for tight turns, while larger radii allow for smoother turns.

Installation Dimensions: Key dimensions like outer diameter (De), inner diameter (D), roller diameter (d), and height (H) are essential for proper installation and component compatibility.

FAQ

Q1: Are you trading company or manufacturer ?
A: We are factory.
Q2: How long is your delivery time and shipment?
1.Sample Lead-times: generally 15 workdays.
2.Production Lead-times:30-60 workdays after getting your deposit.
Q3. What is your terms of payment?
A: T/T 30% as deposit, and 70% before delivery.
We'll show you the photos of the products and packages before you pay the balance.
Q4: What is your advantages?
1. Manufacturer,the most competitive price and good quality.
2. Perfect technical engineers give you the best support.
3. OEM is available.
4. Rich stock and quick delivery.
Q5. If you can’t find the product on our website,what do you next?
Please send us inquiry with product pictures and drawings by email or other ways and we'll check.
